One sentence we hear quite often is: “I need this fence. Please quote.” The buyer usually sends us an installed-fence photo. The photo helps us identify the general panel style, colour and post shape, but it rarely contains enough information for an accurate factory quotation.
We still cannot see whether the wire is 3.5 mm, 4.0 mm or 5.0 mm. We do not know whether that diameter is measured before or after coating. The post wall thickness, fixing quantity, V-bend positions and gate requirements are also invisible.
That is why, at TOPSFENCE, we do not treat an industrial 3D wire mesh fence as a panel alone. We treat it as a complete perimeter system whose panels, posts, clips, bolts, gates, surface treatment, packing and installation interfaces must work together.

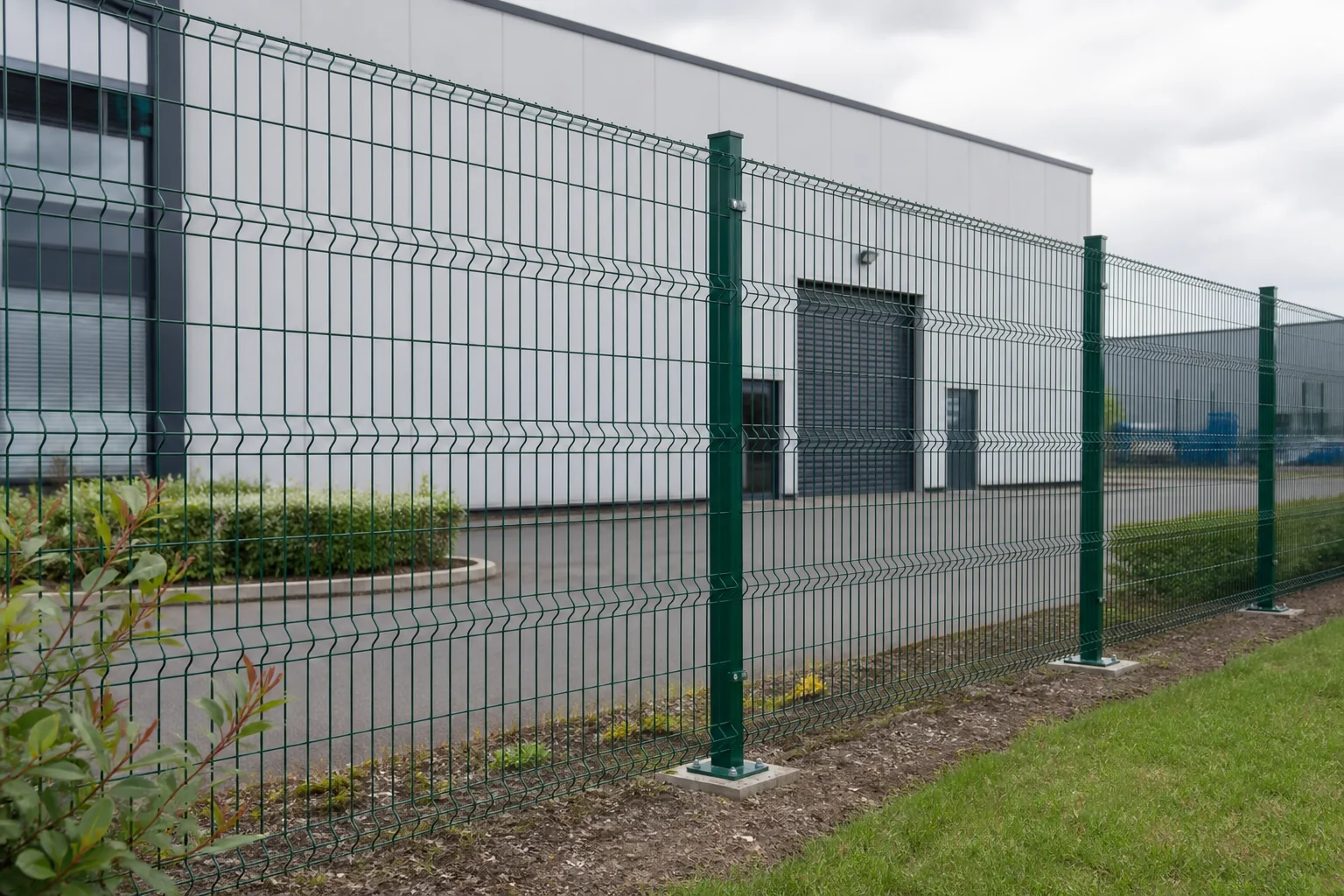

Where Does an Industrial 3D Fence Fit?
A 3D welded mesh fence is usually a practical choice for medium-duty, visible perimeters around factories, warehouses, logistics areas, commercial yards and light industrial sites. The pressed V-bends help the panel retain its form while keeping the fence open and visible.
However, the word “industrial” does not automatically mean “high security”. If you are still comparing fence types rather than preparing a production specification, start with our 3D wire mesh fence purchasing guide.
| Site condition | Our initial view | What to review next |
|---|---|---|
| General factory or warehouse boundary | 3D welded mesh can be a practical visible perimeter | Panel, post, fixing, coating and gate schedule |
| High anti-climb requirement | Do not select a standard 3D panel by appearance alone | Compare a 358 anti-climb fence |
| Repeated impact or higher panel rigidity | Review whether the V-bend panel is the right structure | Compare a double wire fence system |
| Vehicle or forklift traffic beside the fence | Do not rely on mesh fencing as a vehicle barrier | Add separate bollards or vehicle protection |
Common 3D Fence Manufacturing Options
The following values are useful for early-stage selection and quotation. They are not a universal design standard. Final dimensions, tolerances and component quantities should follow the approved order drawing.
| Item | Common quotation range | What we confirm before production |
|---|---|---|
| Panel material | Low-carbon steel wire | Wire definition and surface-treatment system |
| Panel height | 1.0, 1.2, 1.5, 1.8, 2.0 or 2.4 m | Panel height, ground clearance and finished fence height |
| Panel width | 2.0, 2.5 or 3.0 m | Post centres, short bays, corners and gate openings |
| Wire diameter | 3.0–6.0 mm; many project quotations fall within 3.5–5.0 mm | Whether the value is measured before or after coating |
| Mesh opening | 50 × 200 and 55 × 200 mm are common 3D-panel options; other openings can follow the drawing | Opening, orientation and permitted variation |
| V-bend count | 2, 3 or 4 bends | Quantity, position and consistency |
| Post system | Square, round or peach post | Section, wall thickness, length, holes, cap and installation method |
| Fixing system | Clips, brackets, clamp strips or bolts | Type and counted quantity for each panel height |
| Surface treatment | Galvanized, powder coated, PVC coated or galvanized plus coated | Environment, colour, appearance and inspection requirement |
| Matching components | Posts, caps, clips, bolts, pedestrian gates and vehicle gates | Complete component list and packing method |
Why Similar-Looking Panels Can Have Different Specifications
A 3D fence looks simple from a distance: welded wires, several V-bends, posts and clips. Many details that affect price and installation, however, are difficult to see in a photograph.
“4.0 mm wire” is a good example. It may describe a 4.0 mm steel-wire core before coating, or a 4.0 mm finished diameter that includes the coating. If two suppliers use different definitions, both quotations can say “4.0 mm” while containing different amounts of steel.
| Wording in the RFQ | Possible uncertainty | How we clarify it |
|---|---|---|
| 4.0 mm wire | May or may not include coating | State core-wire or finished diameter |
| 2.0 m fence height | Could mean panel height or installed height | Separate panel, ground-clearance and finished-height values |
| 2.5 m panel width | May not equal the post centre distance | Confirm the actual bay and fixing arrangement |
| Green powder coating | Colour code and substrate are undefined | Confirm RAL colour and complete coating system |
| Three V-bends | Bend positions are not defined | Show quantity and positions on the drawing |
| All accessories included | Component types and quantities are unknown | Issue a counted accessory list |
These are not wording details for their own sake. When purchasing, production and inspection teams interpret the same number differently, a technically “correct” product can still become the wrong product for the order. Our 3D wire mesh fence price guide explains how these variables also affect the factory quotation.
A V-Bend Specification Needs More Than a Bend Count
The V-bends help a 3D panel retain its form, but counting the bends is only the first check. We also look at bend position against the approved drawing, consistency between panels, visible changes in bend shape, panel twist after forming and alignment with posts and fixing points.
If bend positions vary along the same fence line, each panel may still be installable, but the finished perimeter can look uneven. This is why we prefer an approved drawing or sample rather than a purchase order that only says “three bends”.
A Complete Fence Order Includes More Than Panels
When we receive a drawing, BOQ or reference photo, we break the fence system into components before confirming production. Depending on the project, the order may include line posts, corner posts, end posts, gate posts, caps, clips, brackets, bolts, pedestrian gates, vehicle gates, hinges, latches and labelled accessory cartons.
The problem we try hardest to avoid is not a complicated specification. It is one order with several conflicting versions. The quotation may show one wire diameter, a later email may change it, and the drawing may still contain the original value.
Before mass production, one controlled drawing or specification revision should become the reference for panels, posts, gates, accessories and inspection records.
Why We Prefer a First-Off Check Before Mass Production
Problems found after an entire order has been welded, formed or coated are much more difficult to correct. Where the order requires a first-off confirmation, the first representative panel and post assembly can be checked before full production.
The review can include panel dimensions, mesh opening, wire diameter, V-bend quantity and position, flatness, edge condition, post dimensions, hole positions, clip compatibility and panel-to-post assembly. If gates are included, the gate interface should be reviewed at the same stage.

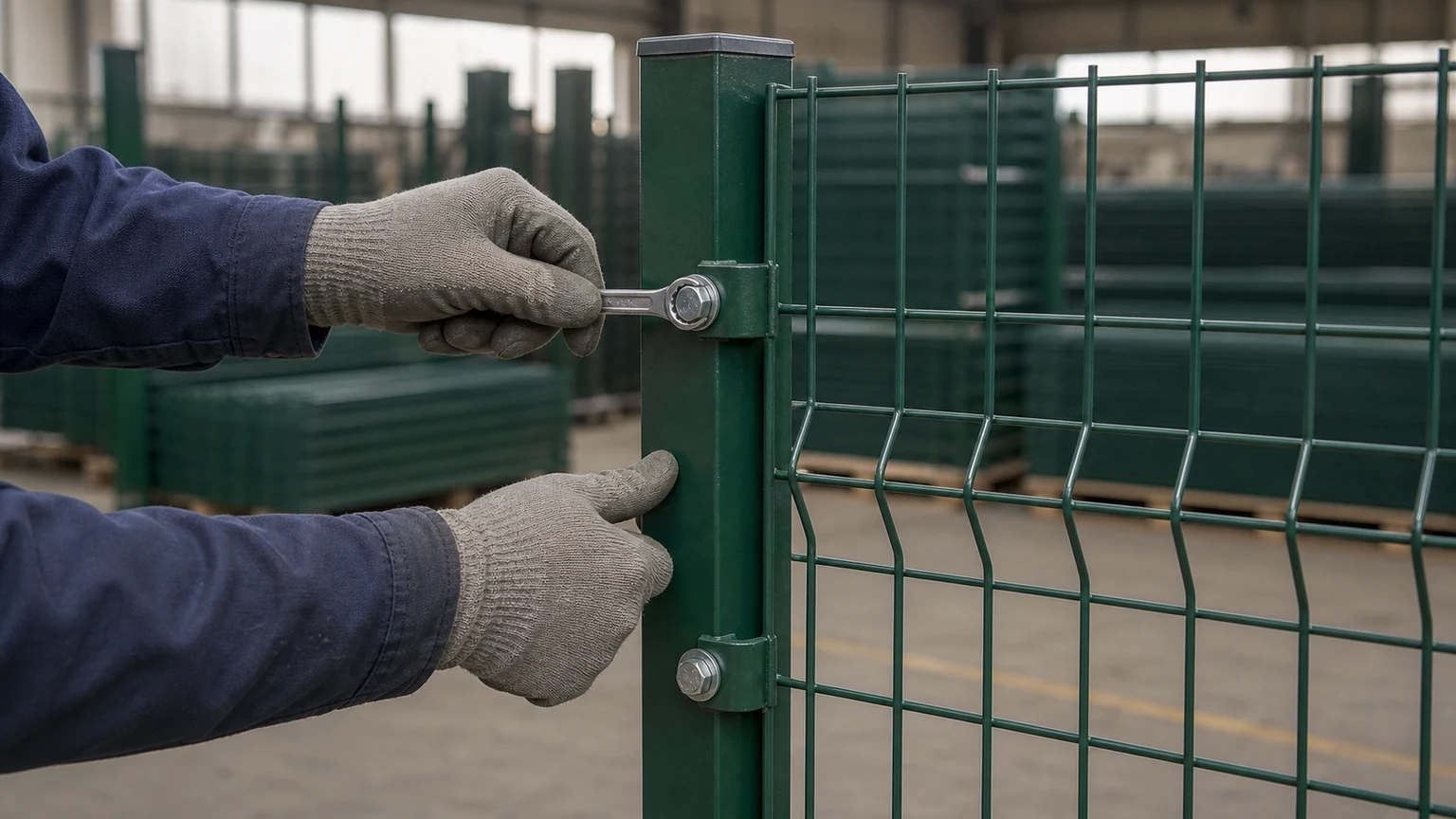

Some problems do not appear during separate panel or post measurements. They only become visible when the parts are assembled together. Our fence production process shows how specification confirmation connects with production, packing and loading.
What We Check Before Shipment
The inspection scope should be agreed before production, especially when the buyer has a specific sampling plan, tolerance or third-party inspection requirement.
| Inspection item | What we check | Typical method | Possible order record |
|---|---|---|---|
| Panel dimensions | Height, width and general condition | Steel tape measurement | Measurement photos or inspection sheet |

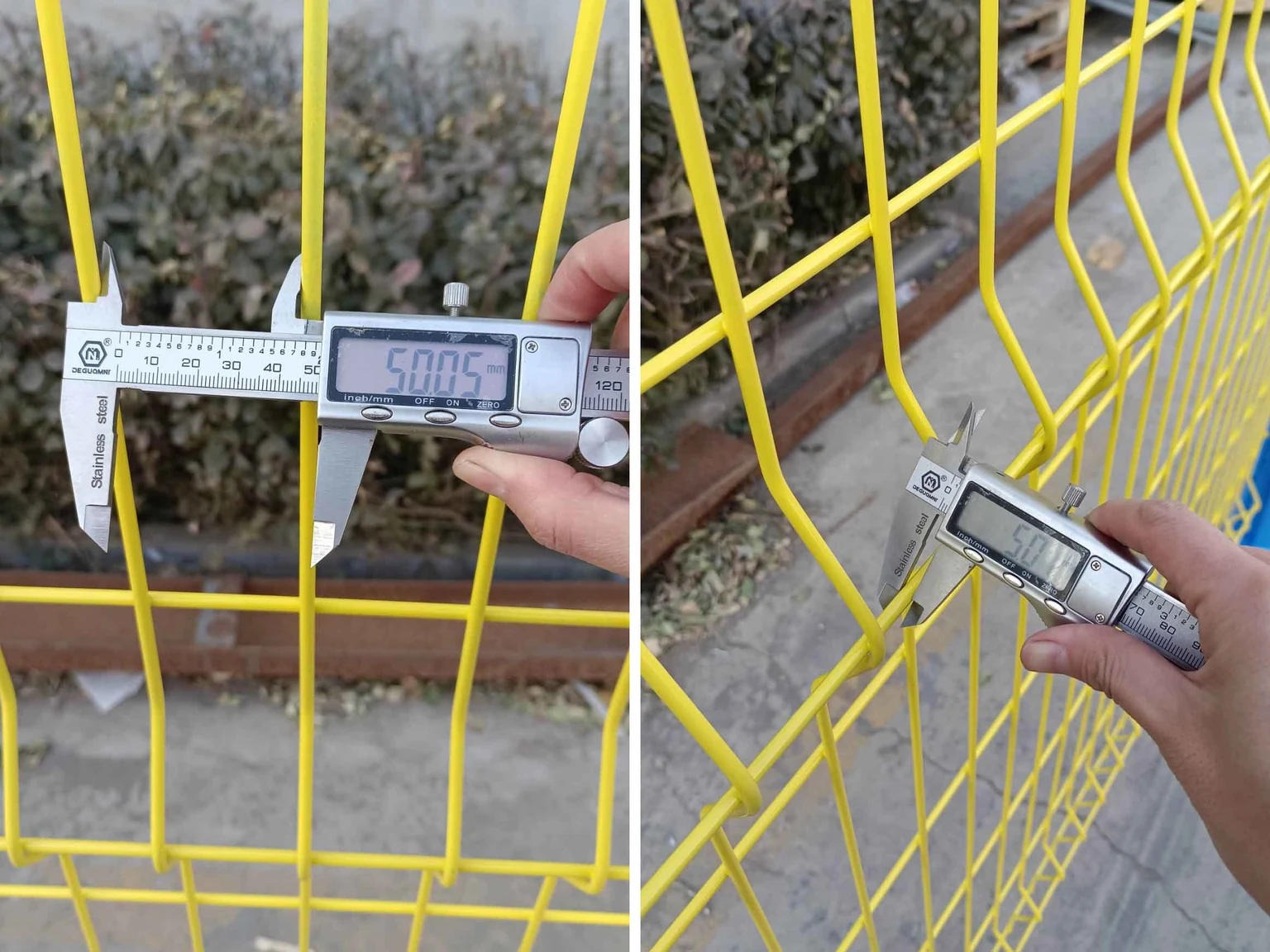

| Wire diameter | Core-wire or finished diameter | Caliper or micrometer | Close-up measurement photo |
| Mesh opening | Horizontal and vertical opening | Tape or caliper | Sampling record |
| V-bends | Quantity, position and consistency | Approved drawing comparison | First-off or batch photos |
| Welds | Missing, open or visibly inconsistent welds | Visual and sample inspection | Close-up photos |
| Posts | Section, wall thickness, length and holes | Tape and suitable measuring tools | Measurement photos |
| Fixings | Clips, bolts, nuts and caps | Count against order list | Accessory-count photos |
| Surface treatment | Colour, coverage, damage and exposed steel | Visual check; other tests as agreed | Coating and colour photos |
| Gates | Clear opening, frame, hinges and lock hardware | Measurement and trial assembly | Assembly photos or video |
| Packing | Separation, straps, pallets and labels | Packing-plan comparison | Packing photos |
Production, finished-goods, packing and loading photos can be prepared for the order file when required. Buyers can review more of our factory QC and export packing workflow.

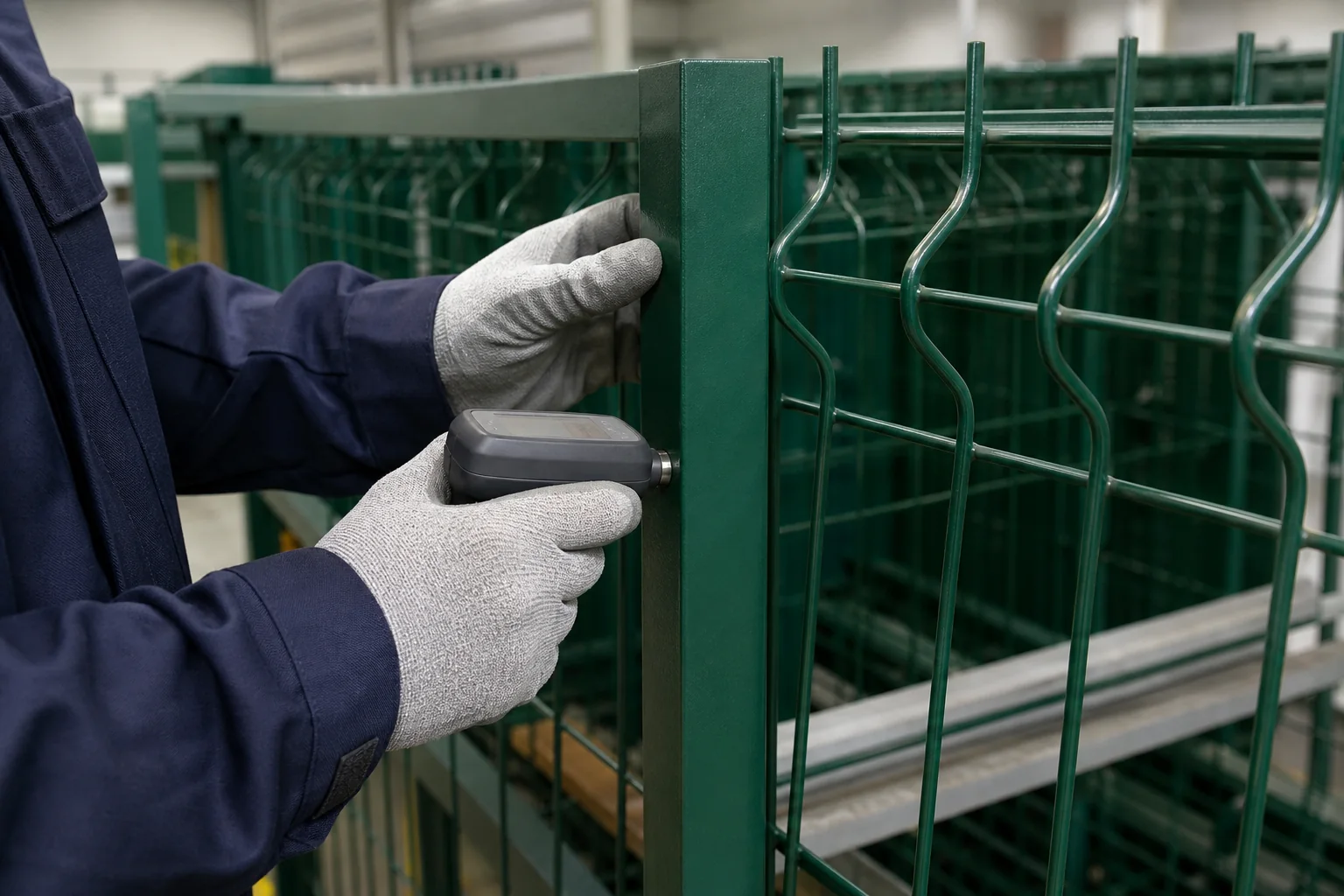

Coating Is More Than a Colour Choice
When a buyer asks for “green powder coating”, we still need to understand where the fence will be installed. A dry inland project, humid location, coastal area and industrially polluted environment may require different corrosion-protection decisions.
The coating discussion should identify the steel or wire substrate, metallic protection, pretreatment, final coating, RAL colour, appearance requirements, inspection method, repair requirements and protection between coated components during packing.
For coastal, humid or polluted industrial locations, we do not recommend relying on a salt-spray-hour number without the complete test conditions. Test method, sample preparation, failure criteria, exposure and maintenance all affect how that number should be interpreted.

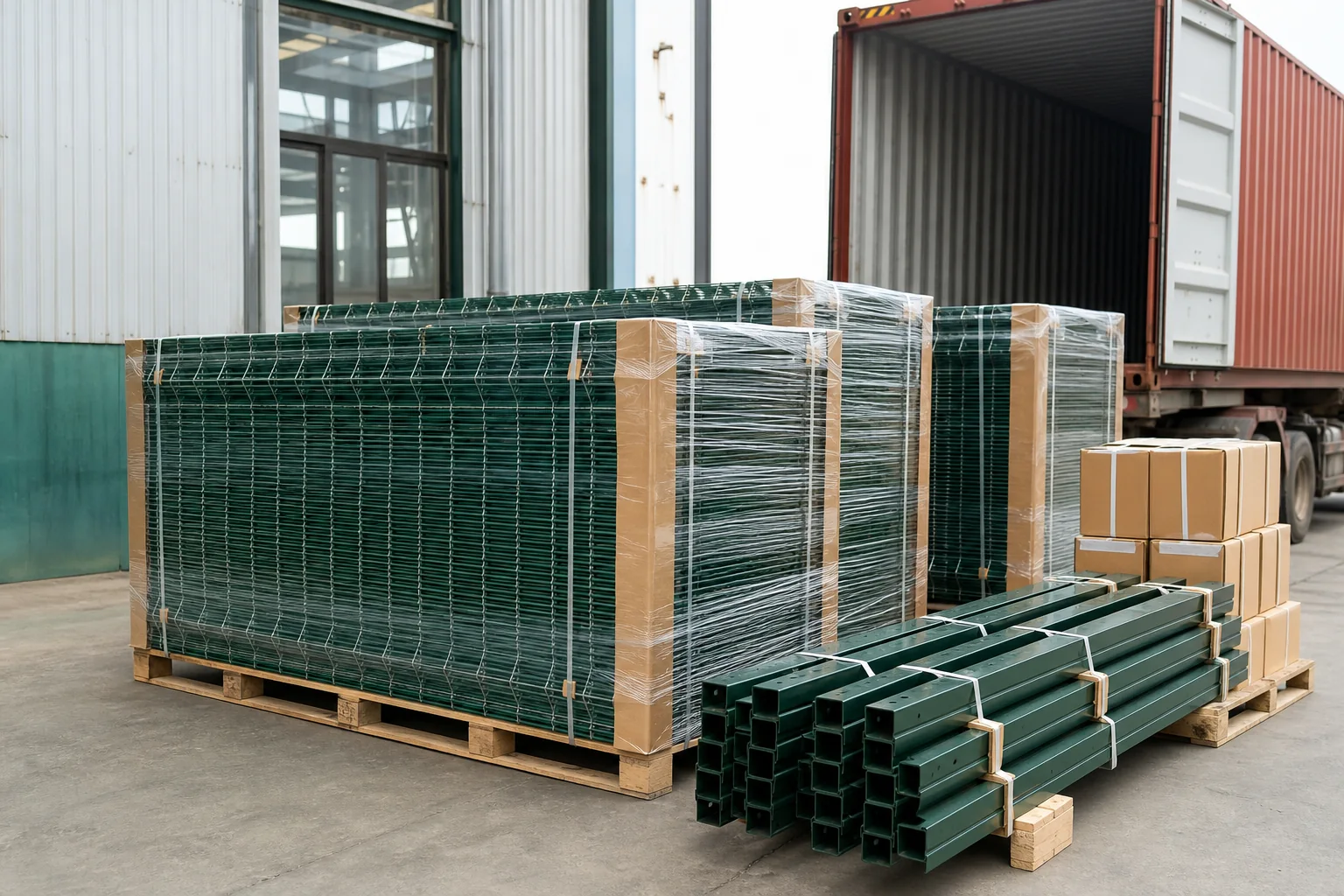

Export Packing Is Part of Product Quality
A 3D panel can leave the production area in good condition and still arrive with damage if the packing is unsuitable. Repeated movement at unprotected panel contact points may mark the coating, while unrestrained posts may move and contact the panels.
Small components create a different problem. Clips, bolts, caps and gate hardware are easier to count and distribute when packed in clearly separated cartons rather than mixed loose with the panels.
Example of a Clear Industrial 3D Fence RFQ
The following is an RFQ-format example, not a fixed TOPSFENCE product specification.
| Application | General factory perimeter |
|---|---|
| Panel height | 1.8 m |
| Panel width | 2.5 m |
| Wire diameter | 4.0 mm, measured on steel wire before coating |
| Mesh opening | 50 × 200 mm |
| V-bends | Three, with positions shown on the approved drawing |
| Post system | Square post; section and wall thickness to be confirmed |
| Installation | Embedded posts |
| Surface treatment | Galvanized plus powder coated |
| Colour | Customer-specified RAL colour |
| Gates | One double-swing gate with a 4 m clear opening |
| Total fence length | 500 m |
| Packing | Export pallets with labelled accessory cartons |
| Inspection | Dimensions, components, finish, packing and loading photos |
If a complete drawing is not available, a buyer can send a BOQ, hand-drawn layout, site photographs or a reference-panel image. We can then identify the missing information before preparing the complete quotation.
FAQ About Industrial 3D Wire Mesh Fence Specifications
Is a 3D wire mesh fence a high-security fence?
Not automatically. V-bends help the panel retain its form, but the complete security level also depends on mesh, wire, height, posts, fixings, foundations, gates and other site-security measures. High anti-climb applications should compare 358 mesh or another engineered security system.
Should wire diameter be measured before or after coating?
The order should state the measurement basis. If both steel-wire diameter and finished coated diameter matter, list them separately so purchasing, production and inspection teams use the same definition.
How many V-bends should a 3D fence panel have?
Common panels may use two, three or four V-bends depending on panel height and design. The approved drawing should show both quantity and position.
Can TOPSFENCE determine the concrete foundation size?
We can provide post, base-plate, hole-position and product-interface information. Final foundations depend on soil, wind, terrain, fence height and local requirements and should be confirmed by the responsible project engineer.
Can a buyer arrange third-party inspection?
If third-party inspection is required, define the scope, sampling method, tolerances, records and acceptance criteria before production so the order and inspection team follow the same requirements.
Send Us the Complete Fence Task, Not Only a Panel Photo
The best industrial 3D fence is not automatically the tallest panel, heaviest post or thickest available wire. A specification that is too light may miss the project requirement, while an unnecessarily heavy specification adds manufacturing, packing and freight cost without necessarily solving the real problem.
Send TOPSFENCE your drawing, BOQ, reference photographs, quantity and destination port. We will first check whether the specification is complete, then prepare the quotation around the whole fence system rather than guessing from one panel photograph.
