Do Galvanized Steel Fences Rust? Lifespan, Maintenance & Coating Limits

At TOPSFENCE, we do not treat “galvanized” as a complete specification. When we review a rigid steel fence project, we ask: How is the coating applied? Where can fabrication affect it? What environment will the fence face? What inspection evidence does the buyer require?

This guide reflects that factory-side approach. It applies to rigid fabricated steel fence panels made from steel rods, pickets, bars, rails or hollow sections.

Why Galvanized Steel Resists Rust

Galvanizing adds a zinc-based protective layer to the steel. According to the American Galvanizers Association, the coating protects steel through a combination of barrier protection, cathodic protection and the gradual formation of a stable zinc patina. The barrier separates the steel from moisture and contaminants. If a small area is exposed, the surrounding zinc can corrode preferentially and help protect the steel underneath. The patina then slows further corrosion of the zinc surface. Learn how zinc protects steel.

This is why a properly specified galvanized fence can require less routine corrosion maintenance than unprotected carbon steel. It is also why the condition of the zinc layer matters more than the word “galvanized” in a product name.

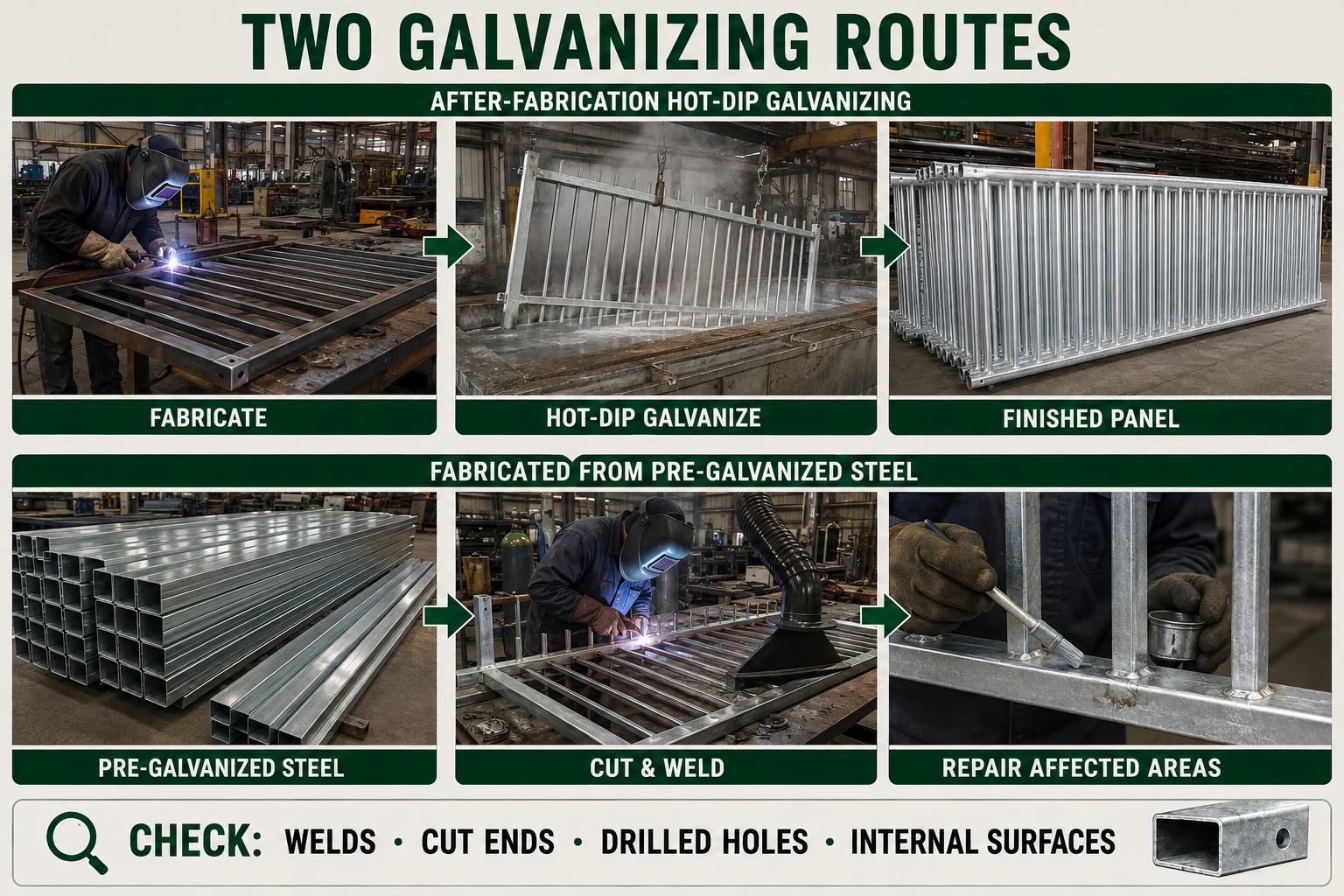

At TOPSFENCE, we distinguish between a fence fabricated first and hot-dip galvanized afterward and a fence made from previously galvanized steel profiles that are then cut and welded. We do not treat the two routes as interchangeable: welds, cut ends, drilled holes and internal surfaces can require different protection and repair controls.

Buyers should ask the manufacturer to identify the actual production sequence and the repair method used at affected areas. Our fence production process shows how material preparation, cutting, welding, coating, inspection, packing and loading fit into the wider order workflow.

ISO 1461:2022 covers the general properties and test methods for hot-dip galvanized coatings applied to fabricated iron and steel articles. A quotation should name the applicable coating specification instead of using “galvanized” as an undefined description.

Can a Galvanized Steel Fence Eventually Rust?

Yes. Zinc protects the steel, but the zinc is gradually consumed as it reacts with the environment. Rust can appear when the coating has been depleted, when a damaged area is too large for nearby zinc to protect effectively, or when fabrication and installation leave inadequately protected steel exposed.

Early corrosion is more likely around vulnerable details such as:

• Welded areas that were not correctly coated or repaired
• Cut ends and drilled holes made after the protective finish was applied
• Scratches, gouges and impact damage from handling or installation
• Panel-to-post connections that trap water and debris
• Base plates, bottom rails and other areas exposed to frequent wetting
• Dissimilar-metal connections that were not evaluated for compatibility
• Poorly prepared surfaces beneath an additional paint or powder layer

A small cosmetic mark and a growing red-rust area are not the same problem. The inspection should identify whether the visible change is limited to the outer finish, affects the zinc layer, or has reached the steel substrate.

What Determines the Lifespan of Galvanized Steel Fencing?

When buyers ask us how long a galvanized steel fence will last, we do not give a single figure without first knowing the coating requirement and exposure environment. We review the following six variables together.

1. Galvanizing route

Ask whether the completed panel was galvanized after fabrication or whether galvanized input materials were cut, welded and assembled. Either route may be suitable when it is properly engineered and inspected, but the vulnerable details and required repair steps are different.

2. Zinc coating thickness and coverage

More zinc generally provides a larger corrosion allowance, but average thickness alone does not prove complete protection. Buyers should confirm the required measurement method, sampling plan, acceptance criteria and locations to be checked. ISO 1460:2020 specifies a gravimetric method for determining hot-dip galvanized coating mass per unit area; other applicable specifications may use additional measurement methods.

3. Exposure environment

The rate at which zinc is consumed changes with moisture, airborne salts, industrial pollutants, chemicals, soil contact and repeated wet-and-dry cycles. The American Galvanizers Association notes that galvanized steel behaves differently across atmospheric, freshwater, soil and other environments. Review environmental performance factors.

That means a dry inland boundary and a continuously damp coastal perimeter should not automatically receive the same coating specification.

4. Fence design and drainage

Good corrosion protection starts with the structure. Horizontal surfaces, sealed cavities, narrow overlaps and poorly drained connections can hold moisture. Openings, welds and joints should be designed for the selected fabrication and coating process. The panel, posts, fasteners, caps and base connection should be treated as one system.

5. Handling, packing and installation

Panels can leave the factory in good condition and still be damaged during stacking, container loading, unloading, cutting or erection.

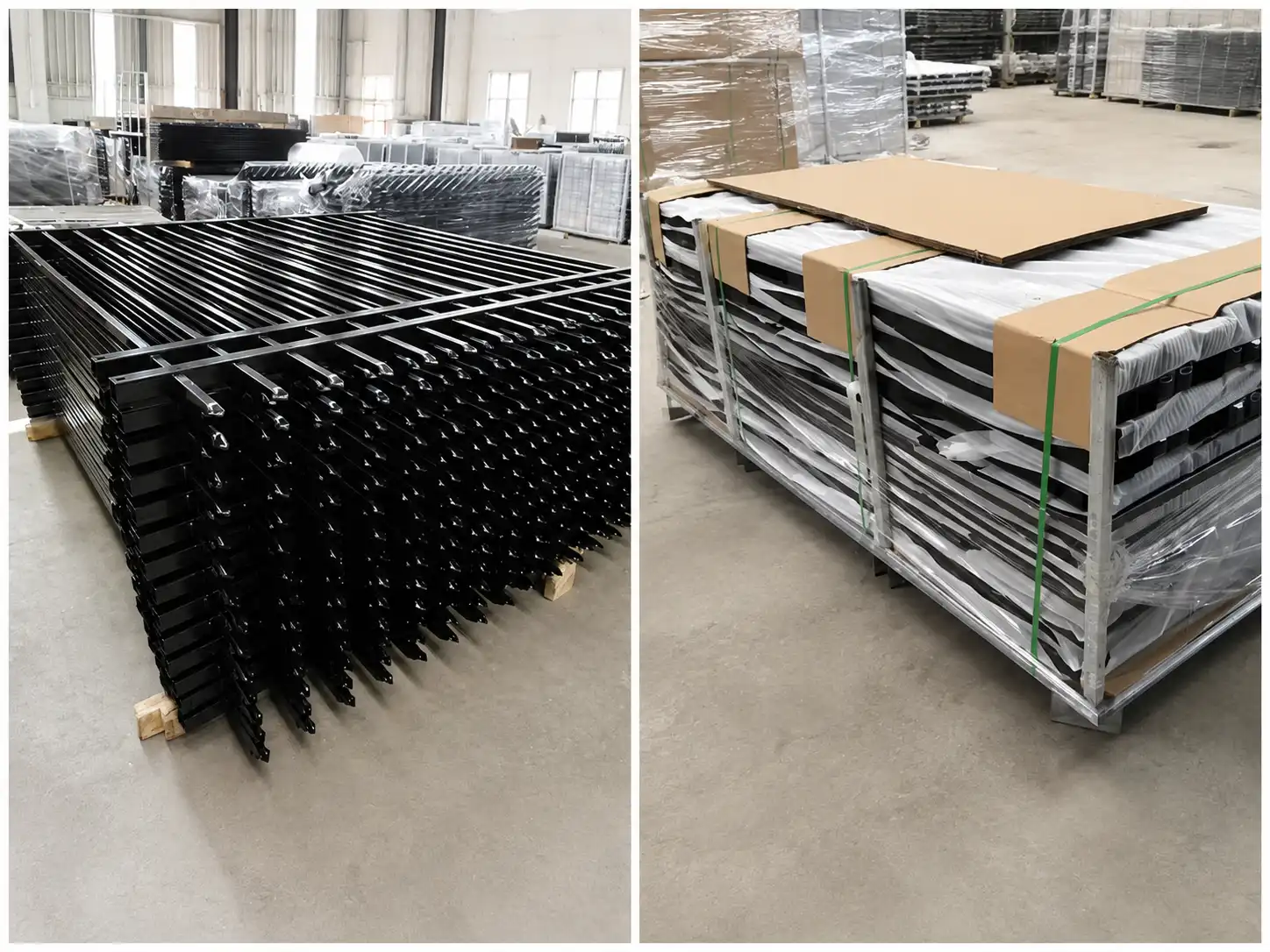

For export orders, we treat packing as part of coating protection rather than as a separate logistics detail. Our team checks the visible coating condition, packing and label details before loading and keeps photos for the order file. See the TOPSFENCE factory inspection and packing checkpoints.

Packing should separate finished surfaces and reduce rubbing. Installation teams should use suitable lifting methods and report damaged areas instead of hiding them beneath an incompatible coating.

6. Inspection and maintenance

Galvanized steel is often selected to reduce maintenance, but “low maintenance” does not mean “no inspection.” Salt deposits, trapped soil, damaged finish and standing water should be addressed before they become long-term corrosion sites.

Environment and Coating Decision Table

This table is a purchasing framework, not an engineering specification. Final requirements should be based on the real site environment and the applicable project standard.

Galvanized or Galvanized Plus Powder Coated?

A powder-coated galvanized fence combines a zinc coating with an additional organic finish. This is commonly called a duplex system. ISO 1461 defines a duplex system as hot-dip galvanized coating with an additional liquid paint or powder coating.

The additional layer can provide colour, a different surface appearance and another barrier between the environment and the zinc. But it is not automatically successful. Surface preparation and coating compatibility are critical. Poor preparation can lead to adhesion failure even when the zinc layer underneath remains protective.

At TOPSFENCE, we do not recommend a duplex finish simply because it sounds more protective. We first confirm the exposure environment, appearance requirements, maintenance expectations, acceptance standard and budget.

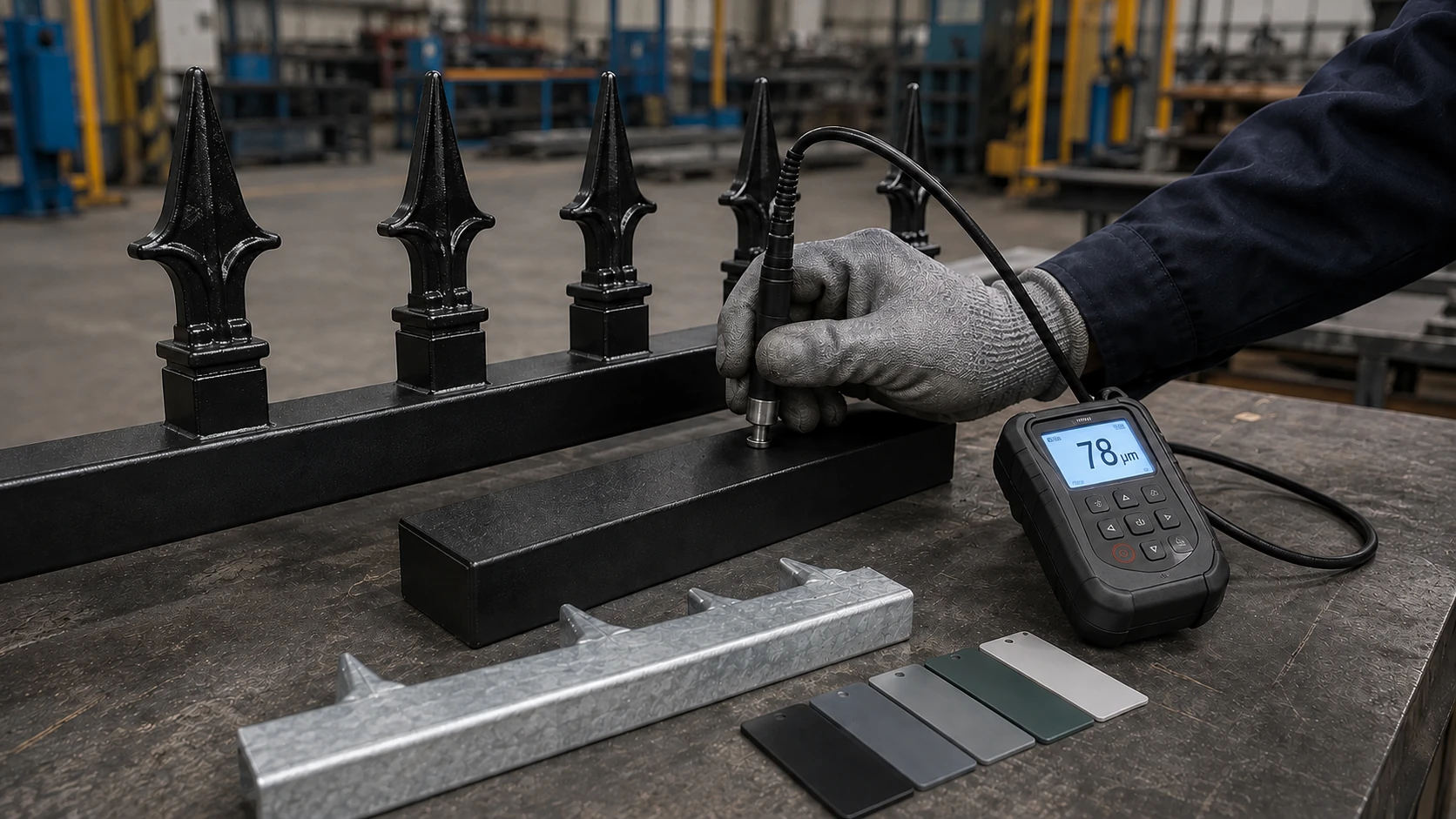

ASTM D7091 describes calibration, verification, adjustment and proper dry-film-thickness measurement using magnetic or eddy-current gauges. It also cautions that a single-point measurement may not represent the coating across the complete surface. The purchase specification or coating manufacturer’s data sheet must therefore define the applicable minimum and maximum thickness.

Common Warning Signs to Inspect

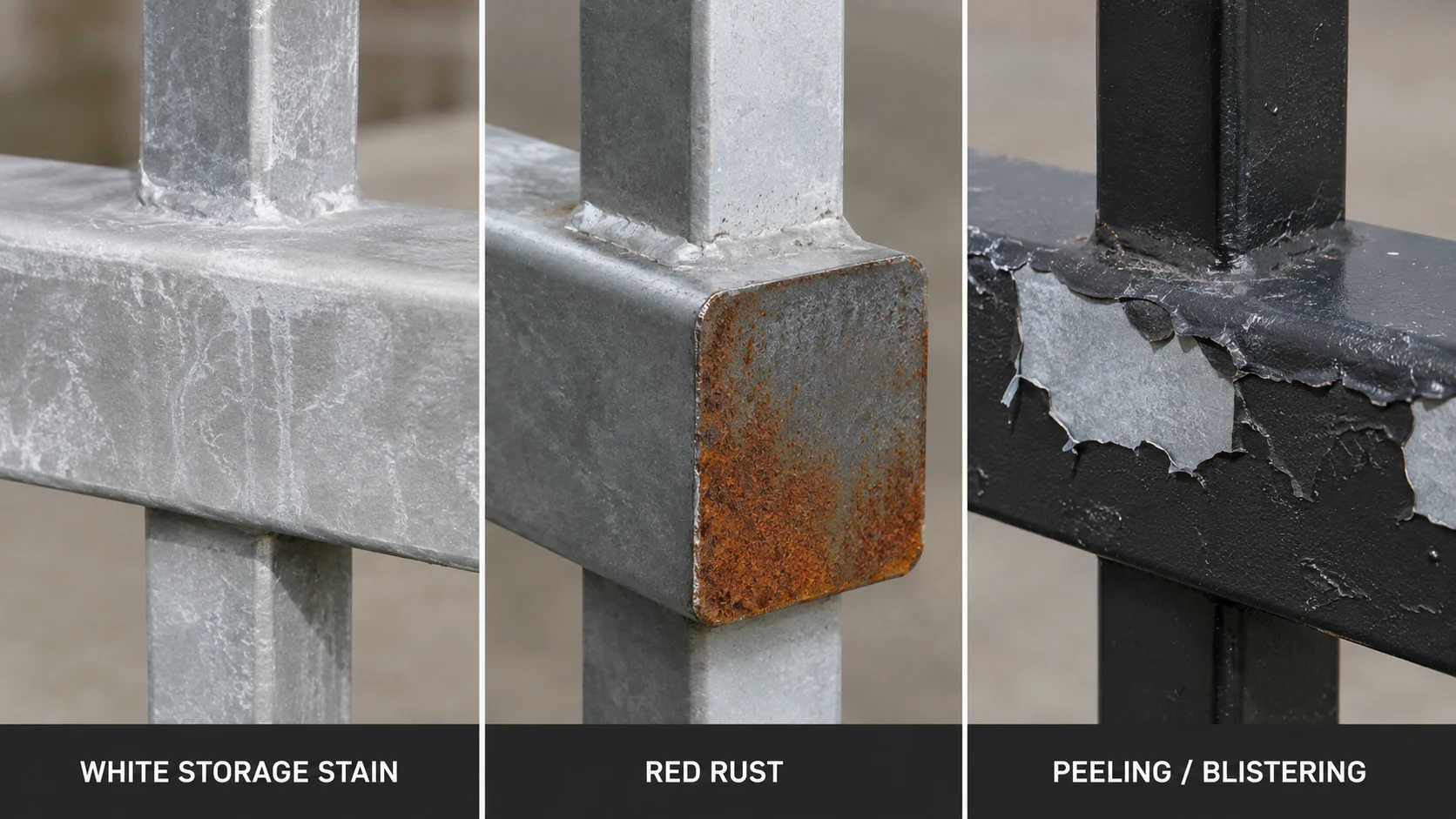

From our factory-side perspective, the first step is to classify the visible condition correctly. White zinc staining, red rust, and paint or powder-coating failure are different findings and should not be grouped together as “rust.”

White surface staining

Freshly galvanized products can develop wet storage stain when moisture is trapped during storage or transport. ISO 1461 describes this as zinc corrosion products formed when newly galvanized steel is stored or transported in moist or humid conditions. White staining should be inspected and documented; it should not automatically be treated as red rust, but it should not be ignored without evaluation either.

Red rust at cuts or welds

Red rust indicates that steel is exposed or that local protection is no longer sufficient. The affected area, cause and repair scope should be documented. For hot-dip galvanized products, ASTM A780/A780M describes recognized repair approaches for damaged or uncoated areas, including damage caused by welding, cutting, rough handling or erection.

Peeling or blistering of an added coating

When a painted or powder-coated surface loses adhesion, determine whether the problem is limited to the organic layer or also affects the zinc and steel. Recoating without correcting contamination, moisture or preparation problems can hide the defect rather than solve it.

Maintenance After Installation

The maintenance plan should match the site rather than follow a universal calendar.

• Establish a visual baseline shortly after installation.
• Inspect areas near the ground, joints, fasteners, welds, damaged edges and places where water or debris collects.
• Remove salt, soil, plant material and other deposits using a method compatible with the finish.
• Record scratches, red rust, coating separation and physical damage with dated photographs.
• Repair qualified damaged areas using the specified system instead of an unidentified general-purpose paint.
• Increase inspection frequency where the fence faces salt, chemicals, persistent dampness, impact or heavy public contact.

If a defect is repeated across many panels, investigate the production, packing or installation process instead of treating every mark as an isolated maintenance issue.

Advantages and Limitations of Galvanized Steel Fencing

Main advantages

• Corrosion protection: Zinc provides both a physical barrier and sacrificial protection for the steel.
• Structural flexibility: Rigid steel panels can be fabricated in different heights, profiles, rail arrangements and security styles.
• Finish options: Buyers can select a galvanized appearance or specify an additional compatible colour coating.
• Inspectability: Coating requirements, measurements, repairs and packing checks can be included in a documented quality plan.
• Reduced routine maintenance: A suitable coating system can reduce the frequency of corrosion-related maintenance compared with unprotected steel.

Important limitations

• Galvanized steel is not permanently immune to corrosion.
• Service life cannot be stated accurately without coating and environmental data.
• Cut, welded, drilled and damaged areas require appropriate attention.
• Poor drainage or incompatible connections can create local problems.
• Added paint or powder coating depends heavily on surface preparation.
• Steel weight can affect handling, support design, packing and freight.
• Natural variation in galvanized appearance may not meet every architectural expectation unless acceptance criteria are agreed in advance.

What to Include in a Galvanized Steel Fence RFQ

To receive comparable quotations, send each supplier the same project information:

• Fence application and installation environment
• Required panel style and security level
• Panel height, width, rail size and picket or rod section
• Spacing and opening limitations
• Post, base, cap and connection requirements
• Galvanizing route and applicable coating specification
• Powder coating requirement and colour reference, if needed
• Inspection, testing, documentation and approved-sample requirements
• Quantity, packing expectations, destination and delivery schedule

If the design is not final, send TOPSFENCE the application, target dimensions, environment and quantity. We use those details to identify which manufacturing, coating, engineering and commercial points still need confirmation.

For available rigid panel styles, review the TOPSFENCE steel fence range. For projects using rod or picket construction, see the steel rod fence panel specifications and finish options. If posts are being sourced separately, our galvanized steel fence post buying guide covers section, wall thickness, coating and connection details.

Frequently Asked Questions

References

These primary and industry sources define the coating concepts, test methods and repair references discussed above. Confirm the applicable edition and project requirements before ordering.

1. American Galvanizers Association — Corrosion Protection.
2. ISO 1461:2022 — Hot dip galvanized coatings on fabricated iron and steel articles.
3. ISO 1460:2020 — Gravimetric determination of coating mass per unit area.
4. American Galvanizers Association — Performance in different environments.
5. ISO Online Browsing Platform — Duplex system definition in ISO 1461.
6. ASTM A780/A780M — Repair of damaged and uncoated areas of hot-dip galvanized coatings.
