2026 Port Facility Perimeter Fencing: Chain Link vs. 358 Mesh, Security Zones, and RFQ Checklist

When selecting perimeter fencing for a port facility, buyers should not compare only product names, unit prices, or heights. The fence should be evaluated as part of a complete, layered security system. Chain-link fencing is generally suitable for long boundaries, general area separation, and applications that value visibility, ease of repair, and budget control. 358 welded mesh is more suitable for areas where an approved risk assessment requires fewer climbing handholds, restricted tool access, and a rigid panel system. Whichever system is selected, the final solution must be coordinated with the port facility security plan, access points, CCTV, perimeter intrusion detection systems (PIDS), vehicle threats, terrain, waterside boundaries, and the marine corrosion environment.

Rules in the United States, Canada, and Australia, together with the ISPS framework, emphasize restricted areas, access control, monitoring, detection, and approval responsibilities. They do not specify one fence type or one height for every port.

Disclaimer: This article is for procurement and technical specification education. It does not replace a port facility security plan, competent-authority requirements, engineering design, security consultant advice, or legal advice.

Quick Conclusion: Which Fence Should Be Evaluated First for Each Port Security Task?

A “suggested starting point” is not automatic approval. The final system should be determined by the port or facility security officer, owner, authority having jurisdiction (AHJ), and project professionals based on the risk assessment and approved drawings.

What Do Port Security Rules Require, and What Do They Not Require?

Regulations normally define security outcomes and management responsibilities; they do not select products for the buyer. Procurement teams must translate goals such as “prevent unauthorized access,” “control access points,” “monitor the perimeter,” and “detect tampering” into fence-system requirements that can be quoted and inspected.

United States: Restricted Areas, the FSP, and MARSEC Measures

U.S. 33 CFR 105.260 requires a facility owner or operator to designate restricted areas to prevent or deter unauthorized access and to protect people, facilities, vessels, sensitive areas, and security and surveillance equipment. The section also requires clearly established security measures for restricted areas and the implementation of access controls and other measures at the applicable MARSEC level.

The section does not prescribe one fence type, mesh opening, or height for every U.S. port. Statements such as “MTSA requires every port to use an 8-foot fence” or “MTSA mandates 358” are therefore overgeneralizations.

The Port Authority of New York and New Jersey's 2025 Seaport Facility Security Guidelines do provide design baselines that include 8-foot chain-link fencing with specified mesh openings and wire diameters. They also consider continuous concrete protection where vehicles can approach and emphasize sightlines, CCTV, and fence sensors. However, this is an owner guideline for a specific port authority, not a nationwide MTSA product provision.

Canada: Marine Facility Restricted Areas and Perimeter Monitoring

Sections 329–333 of Canada's Marine Transportation Security Regulations (MTSR) require a marine facility security plan to designate restricted areas according to operations in order to prevent unauthorized access and protect the facility, vessels, people, surveillance equipment, and ships' stores.

At MARSEC Level 1, the plan must include restricting access to authorized personnel, securing unused access points, installing physical barriers at the remaining access points, checking the authorization of people and vehicles, patrolling or monitoring the perimeter of restricted areas, and using security personnel, intrusion-detection equipment, or surveillance equipment to detect unauthorized access. Higher MARSEC levels require enhanced monitoring, physical barriers, and access-point control.

These provisions likewise do not state that chain link or 358 must be used. The specific system remains subject to the marine facility security plan, risk assessment, owner requirements, and project technical specification.

Australia: Land-Side Restricted Zones and Security Barriers

Regulation 6.25 of Australia's Maritime Transport and Offshore Facilities Security Regulations 2003 defines a security barrier as a fence, free-standing wall, building, or other similar object that clearly defines a maritime security zone and prevents unauthorized access.

For a land-side restricted zone or cleared zone, the security barrier must prevent and deter unauthorized access, support the detection of unauthorized access, provide access control points that are no less effective than the surrounding barrier, and be subject to regular patrols, surveillance, or other inspections.

This means the Australian regulations focus on the boundary, deterrence, detection, consistency at access points, and the ability to inspect—not on requiring one mesh type for every port.

ISPS: Performance, Approval, and Security Plans, Not a Universal Product Name

IMO MSC.1/Circ.1525 explains that a port facility security plan should be developed from a security assessment and should address measures to prevent unauthorized access to the port facility, ships moored at the facility, and restricted areas. It also notes that restricted areas may be defined by fencing or other barriers whose standards should be approved by the designated authority. Lighting, patrols, CCTV, perimeter intrusion detection, and access control are part of the same physical-security system.

In an ISPS context, the right questions are therefore not “Is 358 ISPS compliant?” but:

• What is the approved security task for this zone?
• Can the fence work with access control, monitoring, and patrols?
• Which authority approves the fence standard and drawings?
• Can the supplier provide complete system evidence that matches the tender requirements?

Translating Regulatory Objectives Into RFQ Questions

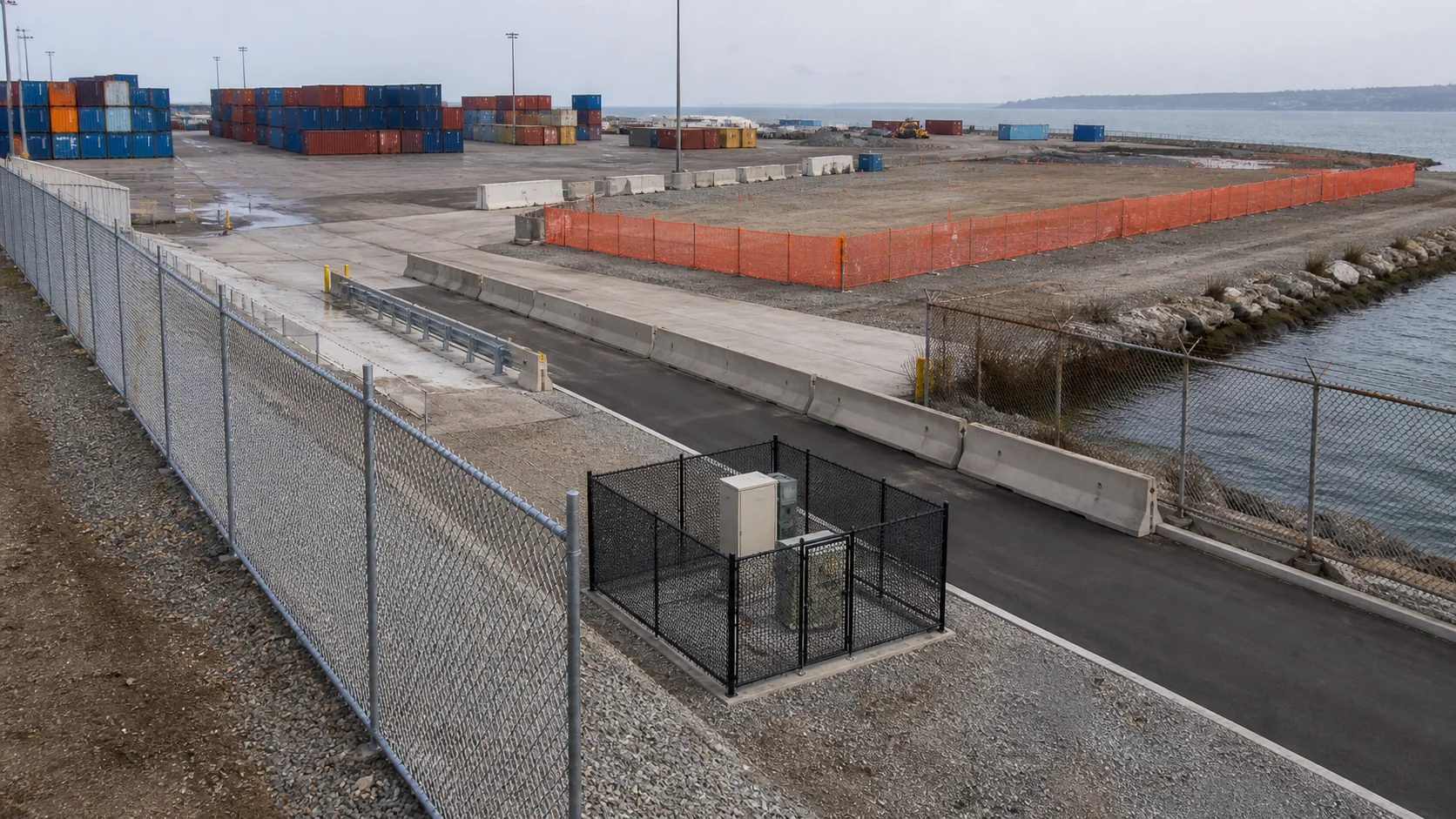

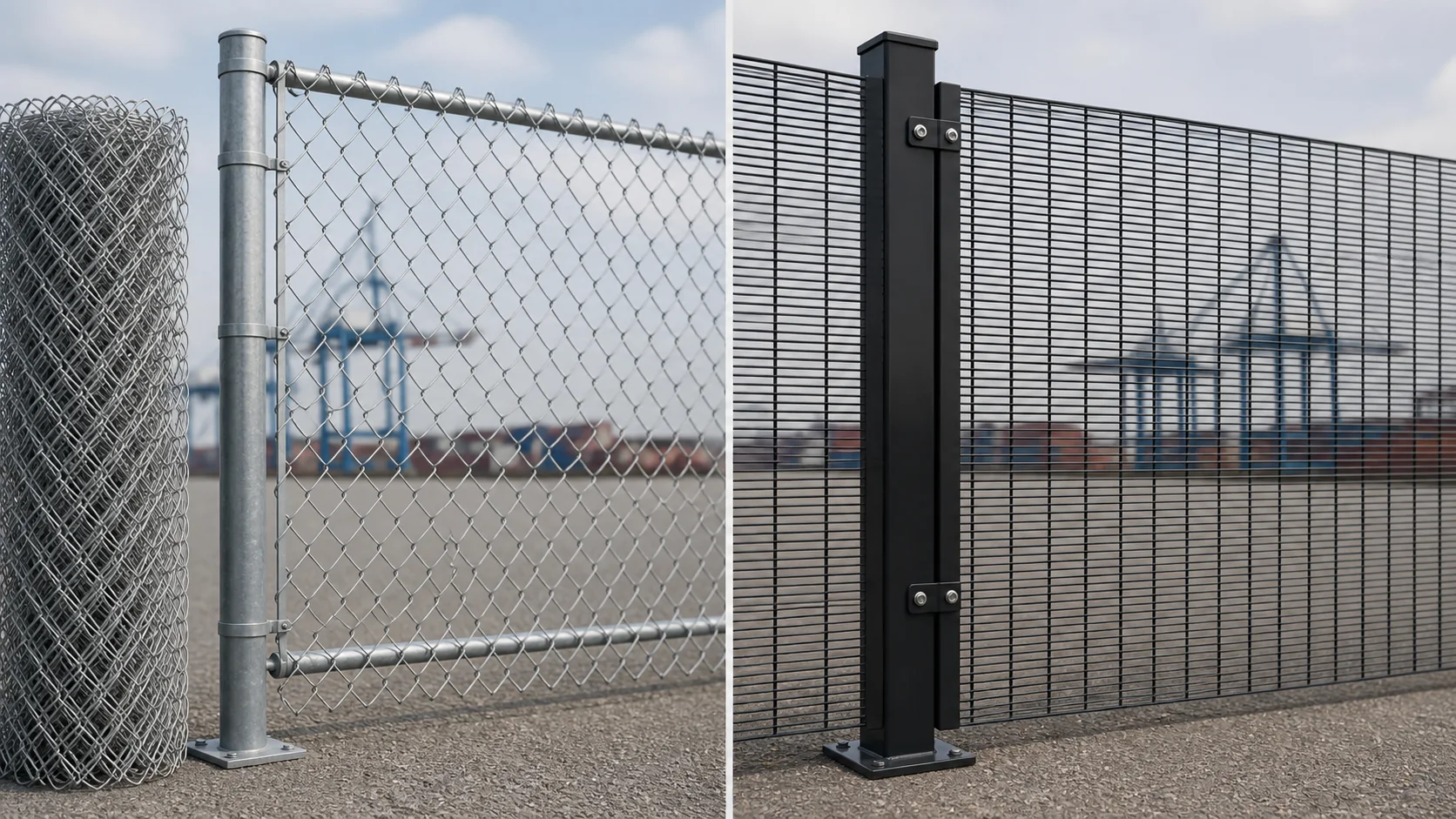

Chain Link vs. 358 Mesh: Compare the Task, Not the Label

Public project records show that both chain link and small-aperture welded mesh are used in maritime environments, but they do not perform the same tasks.

Public information for the 2026 Port of Long Beach Pier A project includes two sections of 8-foot-high chain-link fencing. One is approximately 600 feet long, separates the dock from a labor parking area, and is coordinated with five pedestrian turnstiles and one ADA pedestrian gate. The other is approximately 625 feet long and includes a 16-foot-wide manual sliding gate. The project also combines K-rail and chain-link fencing in an equipment lane, demonstrating that vehicle/equipment protection and pedestrian boundaries need to be coordinated separately.

A 2026 Maine Port Authority public bid project lists approximately 500 linear feet of temporary 4-foot chain-link fencing and 352 linear feet of 8-foot-high security chain-link fencing. It also assigns inspection, testing, documentation, and record-drawing responsibilities to the contractor. This shows that chain link remains a valid system option in current port projects, but it must be defined together with the framework, access points, monitoring, and documentation responsibilities.

For 358, the public specifications published by Zaun and Barkers both use the familiar 76.2 × 12.7 mm mesh opening and 4 mm wire diameter, with panel widths of about 2.515 m and post centers of about 2.44 m. However, they also define post sections, clamp bars, fixing centers, configurations for different heights, and separately tested product versions. “358” therefore describes a familiar mesh concept; it does not replace a complete system specification.

Barkers states publicly that it installed approximately 4,000 m of SecureGuard 358 around the Port of Calais. Zaun's public port case study combines 358 mesh with enhanced topping measures, temporary movable boundaries, and vehicle barriers.

Core Comparison Table

When Is Chain Link a More Reasonable Starting Point?

Chain link is not synonymous with “low security.” Its suitability depends on whether the complete system meets the approved task. The following applications are usually worth evaluating first:

• Long, straight outer boundaries and large-area demarcation;
• Separation between docks and parking, equipment, or general operational areas;
• Areas that require strong visibility, quick local repair, or future adjustment;
• Construction-phase or changeable temporary boundaries; and
• Areas where the risk assessment permits chain link and the system task can be completed through the framework, bottom condition, gates, monitoring, and vehicle barriers.

Total length and height are not enough to make the decision. Mesh opening, core/finished wire diameter, selvage, line and terminal posts, rails or tension wire, ties, bottom clearance, top measures, and foundations all affect the final result. When PVC-coated fabric is used, refer to the PVC-Coated Chain-Link Fence Specification Guide to check the core and finished wire diameters, mesh opening, roll height, coating, and packing.

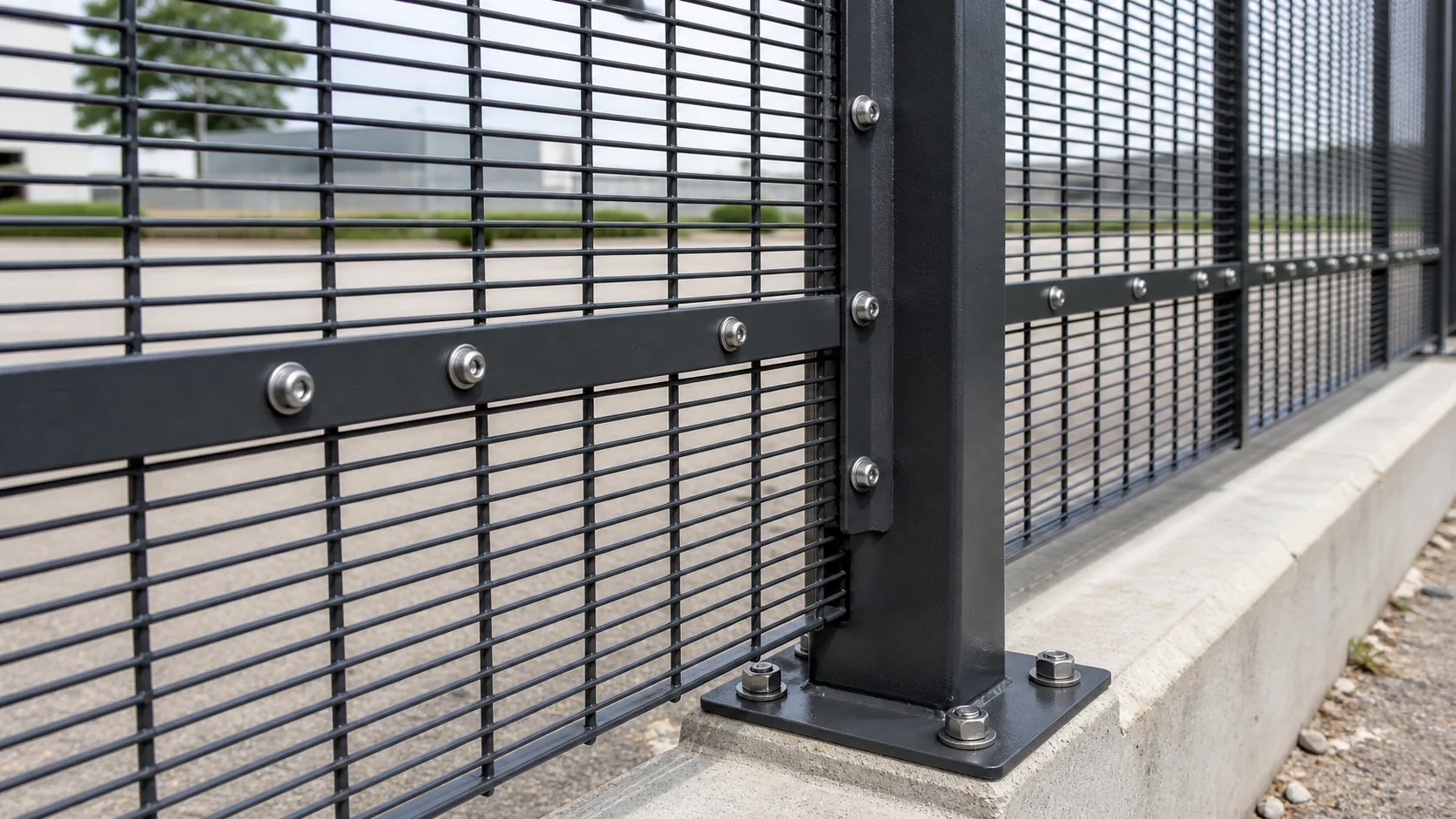

When Should 358 Be Evaluated First?

When the approved task requires fewer climbing handholds, more controlled fixings, a more rigid panel, and less direct space for tool access, 358 or another small-aperture rigid system can be evaluated first.

However, the buyer should not accept a quotation that contains only the line “2.4 m high 358 fence.” At minimum, continue by confirming:

• Mesh opening and horizontal and vertical wire diameters;
• Panel width and tolerances;
• Post centers, section, and wall thickness;
• Panel overlap or butt-joint method;
• Clamp bar, clip, bolt type, and fixing centers;
• Accessible side and anti-tamper requirements;
• Slope, corner, wall-top, or concrete-barrier interfaces;
• Matching gates and emergency exits; and
• Whether a specified test standard and exact tested product version are required.

A standard 358 panel cannot automatically inherit the rating of another reinforced or tested version made by the same manufacturer. For mesh tolerances, wire diameter, welds, posts, fixings, coating, and shipping inspection, continue with the 358 Anti-Climb Fence Specification and Inspection Guide.

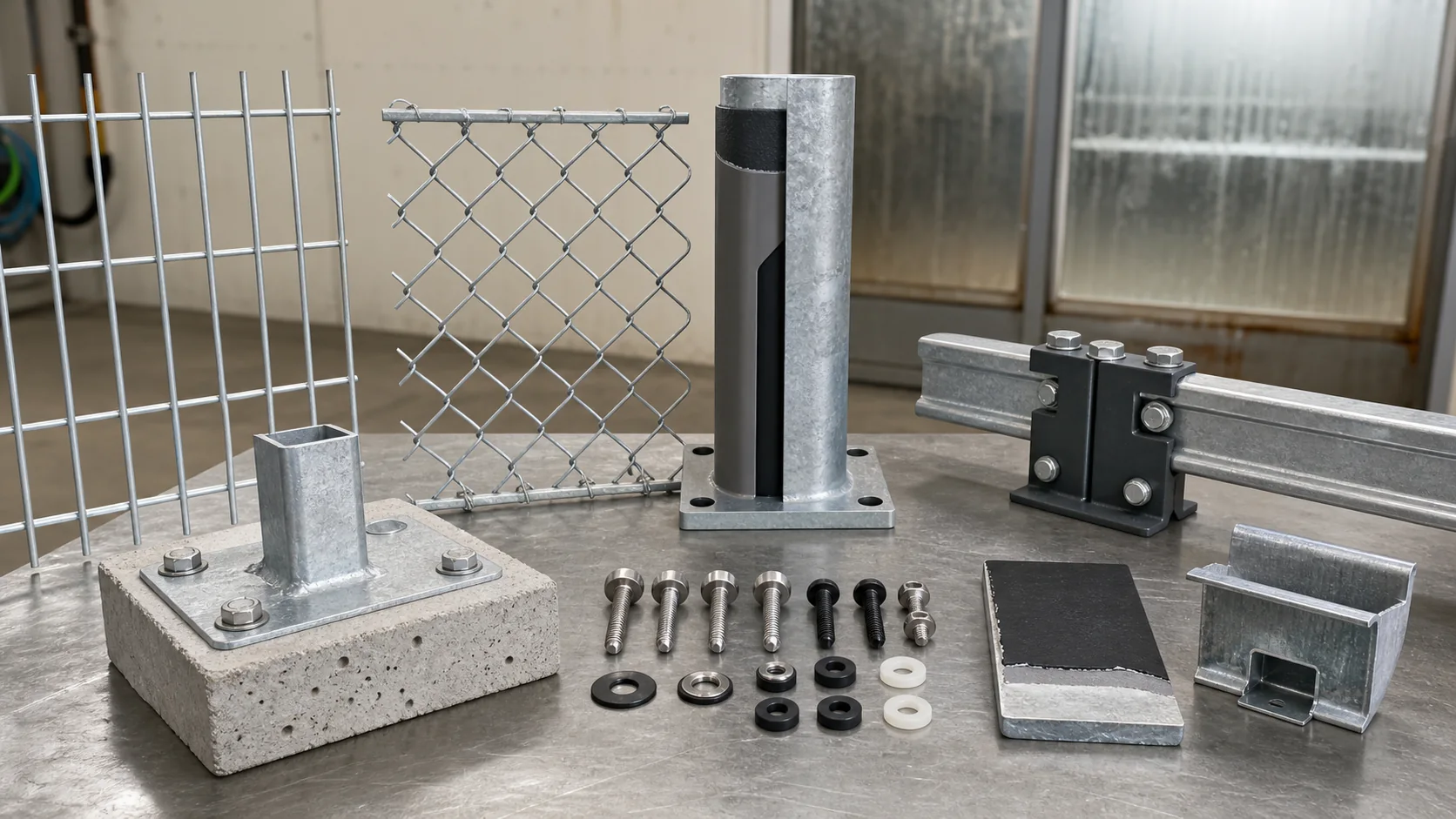

Marine Exposure: Buy a Coating System, Not a Color Name

“Marine grade,” “heavy galvanized,” or “green powder coating” is not enough to create an inspectable marine-environment specification. Salt deposition, wet-dry cycles, drainage, sea winds, splash, concrete interfaces, and installation damage can affect different components.

In Jacksons' published Portsmouth Naval Base case study, some mesh fencing is combined with gates and turnstiles. Where the boundary crosses a beach and extends into the sea, the project uses double galvanizing and a marine powder-coating treatment. This is a published practice for one manufacturer and project; it does not mean that every port should use the same coating, and it does not establish a fixed service life.

Define Coating Evidence for Each Component in the RFQ

Do not convert salt-spray test hours directly into years of field service. Salt-spray testing can be used as comparison or quality-control evidence for a particular coating system, but field life also depends on design, environment, damage, cleaning, maintenance, and installation quality.

ISO 1461 also cannot be used broadly to replace every standard for wire, welded panels, and continuously galvanized products. The tendering party should first confirm whether the standard applies to the component and manufacturing process in question.

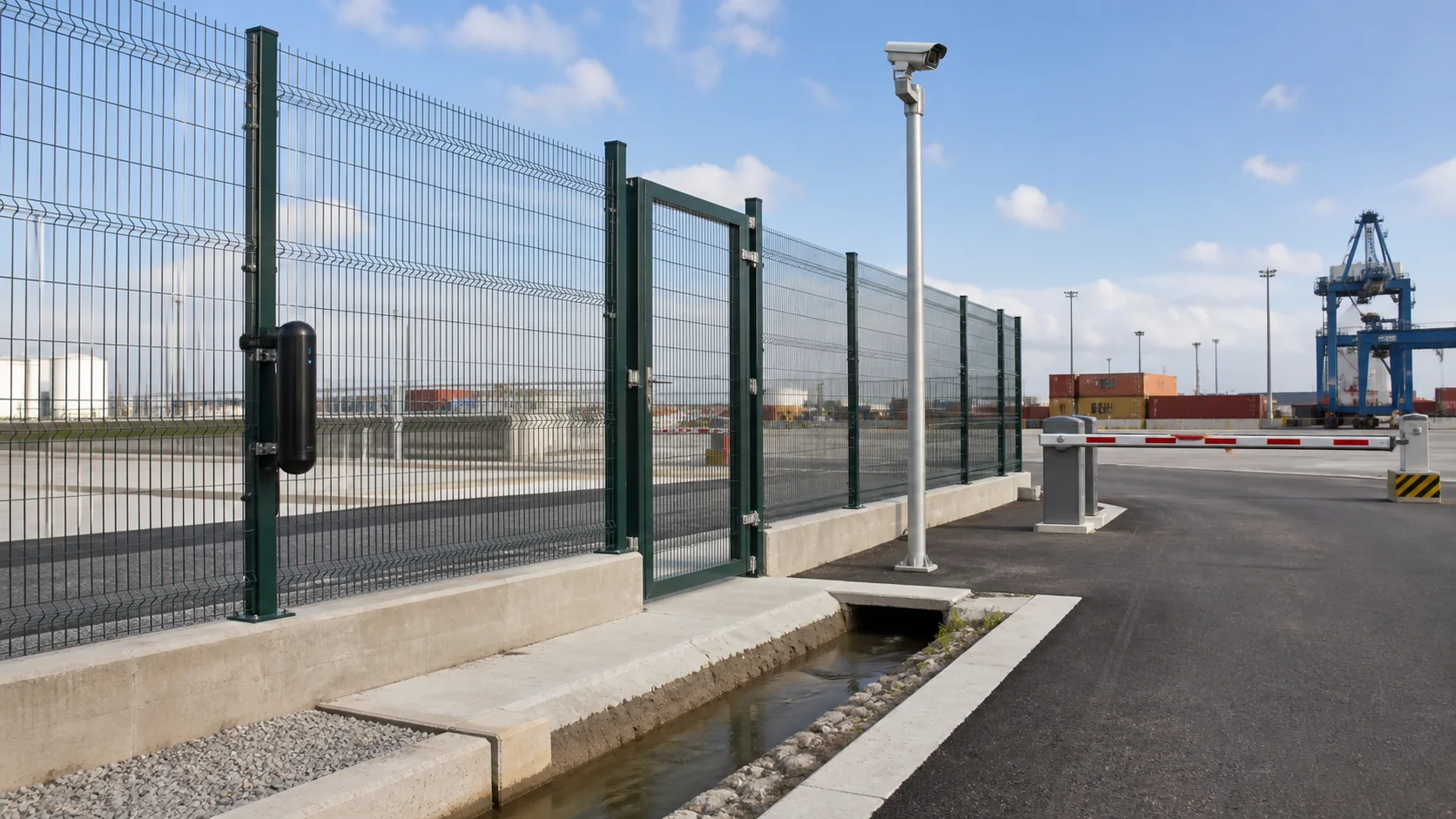

A Fence Is Only One Layer: Coordinate the Critical Interfaces

Clear Zones, Sightlines, Lighting, and CCTV

The fence should support surveillance rather than create new blind spots. At minimum, the RFQ should state:

• Whether cameras mainly look along the fence line or face the fence;
• Whether clear zones are required on both sides of the fence;
• Whether vegetation, storage yards, containers, or temporary equipment may obstruct the view;
• Nighttime lighting and limited-visibility conditions;
• Who will design, install, and commission the PIDS; and
• Whether field tests are required for false alarms, missed detections, and sensor-mounting methods.

Without actual testing, no mesh type should be described as “inherently compatible with every PIDS.”

Access Points and Gates

Australian regulations expressly require access control points for a land-side restricted zone or cleared zone to be no less effective than the surrounding security barrier. The same principle is useful as a cross-market procurement rule: gates, turnstiles, and emergency doors must not become undefined weak points in the fence line.

Use the TOPSFENCE fence gate product page to continue checking pedestrian gates, swing gates, sliding gates, matching infill, gate posts, and hardware. The gate schedule should state at least:

• Clear opening and overall height;
• Infill type and bottom clearance;
• Manual or automatic operation;
• Daily opening frequency and equipment duty cycle;
• Locking, closing, limiting, and emergency-release hardware;
• Gate-post and foundation responsibilities;
• Access-control, electrical, fire, and safety interlocks; and
• Whether a separate vehicle-impact rating is required.

Vehicle Threats and Crash Barriers

Standard chain link and standard 358 are primarily used for personnel boundaries, delay, deterrence, and monitoring interfaces. They should not be described as tested vehicle crash barriers.

Public Port of Long Beach projects use K-rail, bollards, and fencing separately for traffic boundaries, equipment protection, and personnel restriction. The PANYNJ guidance also considers concrete protection where vehicles can approach. This shows that the buyer should define the vehicle threat, fence, and HVM system separately and then coordinate them on the drawings.

Drains, Culverts, Utilities, and Waterside Boundaries

When a fence crosses a drain, culvert, utility line, embankment, or beach, a continuous line on a plan is not enough. Confirm:

• Whether the opening maintains an access-control task equivalent to the adjacent fence;
• Whether drainage capacity is obstructed;
• How inspection and cleaning access will be retained;
• Whether the foundation affects underground utilities;
• Who is responsible for waterside measures;
• Whether environmental permits are involved; and
• Whether tides, scour, floating debris, and corrosion change the construction.

Articles and public RFQs should not disclose specific camera blind spots, patrol frequencies, response times, or exploitable bypass details.

How Do You Prepare a Comparable, Buildable Port Fence RFQ?

A low-quality inquiry often provides only two values: total length and height. That is not enough for different suppliers to quote against the same technical baseline, and it can omit posts, terminal posts, fasteners, foundations, gates, coatings, and documents.

1. Site and Security Inputs

Provide at least:

• Destination country, port, and approving authority;
• Project type and security zone/task;
• Length, height, and location ID for each fence section;
• Straight runs, corners, ends, slopes, and steps;
• Wind, ground, concrete wall, K-rail, or base-plate conditions;
• Pedestrian and vehicle access points;
• Drainage, utility, and waterside crossings;
• CCTV/PIDS/lighting interfaces;
• Vehicle accessibility and separate HVM requirements; and
• Marine exposure, salt, drainage, and maintenance conditions.

2. Complete System BOM

A chain-link system may include:

• Fabric;
• Line posts, terminal posts, corner posts, and gate posts;
• Top rail, bottom rail, tension wire, or tensioning assemblies;
• Tension bars, ties, clamps, bolts, and caps;
• Approved top measures;
• Foundations, base plates, or wall connections;
• Gate interfaces; and
• Spare parts, labels, and packing.

A 358 system may include:

• Panels;
• Line posts, terminal posts, corner posts, and gate posts;
• Clamp bars, clips, bolts, nuts, and washers;
• Special corner, slope, and wall-top components;
• Approved top measures;
• Foundations or base plates;
• Gate interfaces; and
• Spare parts, labels, and packing.

3. Technical Parameters and Deviation Schedule

Every critical value should be clear:

• Nominal value and permitted tolerance;
• Measurement location and method;
• Applicable standard and edition;
• Precedence of the owner's drawings over supplier drawings;
• Evidence required for an “approved equal”;
• Items the supplier cannot meet or needs to clarify; and
• The deviation status of every alternative material and construction.

For example, if a tender line states only “2.4 m high 358 anti-climb fence, marine-grade coating,” the supplier must ask at least the following questions:

1. What are the 358 mesh opening, horizontal and vertical wire diameters, and tolerances?
2. Who determines the panel width and post centers?
3. Who is responsible for the post section, wall thickness, wind load, and foundation?
4. Does “security fixing” mean a clamp bar, clip, or dedicated fixing system?
5. Which components, measurement methods, and repair requirements does “marine grade” cover?
6. Is a specified test standard or attack rating required?
7. Who is responsible for the gates, PIDS, and CCTV?
8. Is there a separate vehicle barrier?
9. Who is responsible for inspection, documentation, packing, and container loading?

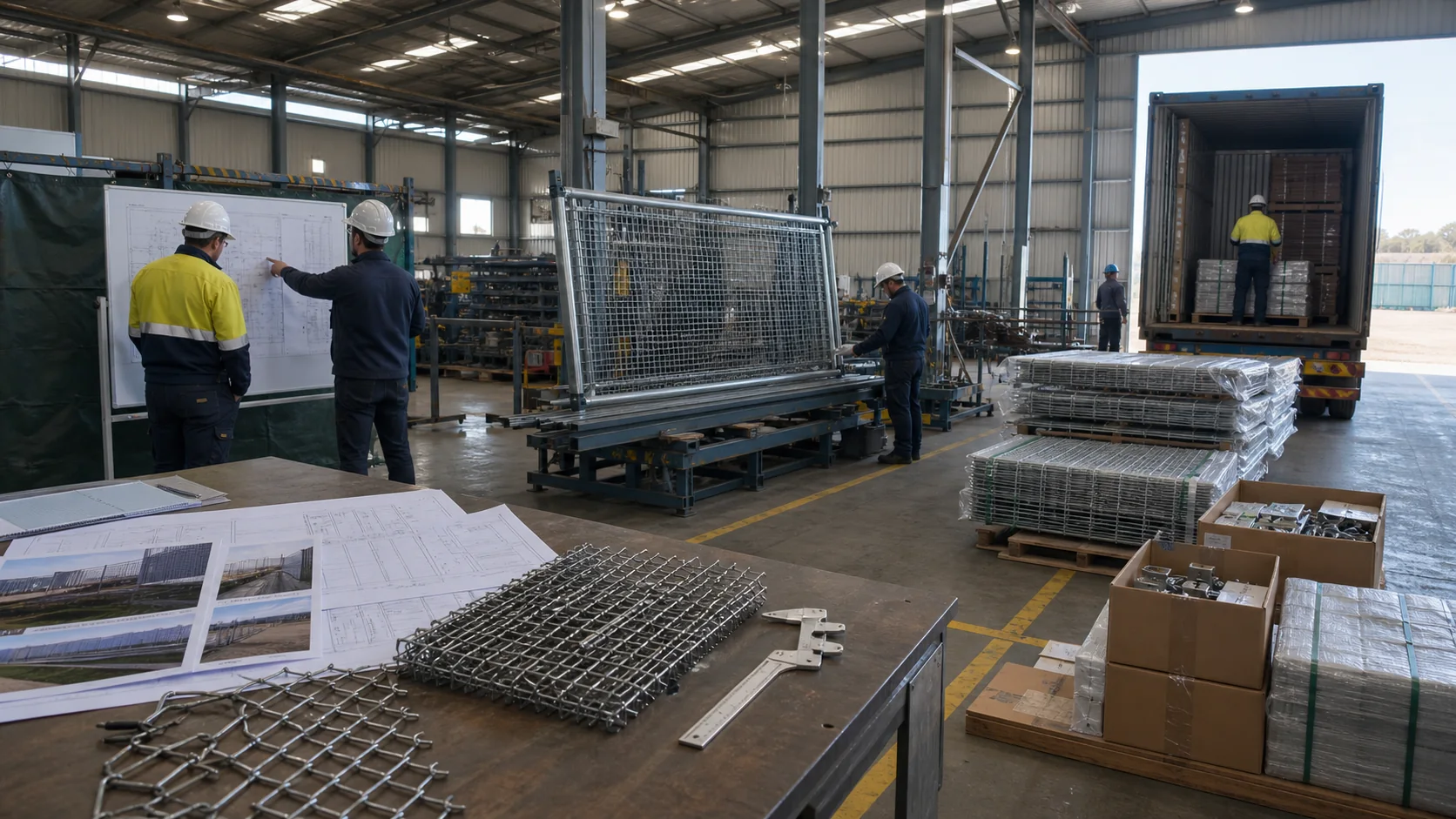

4. Inspection and Document Package

Before production, it is advisable to approve:

• Drawing revision;
• Technical specification matrix;
• Deviation and clarification list;
• Sample or color sample;
• Inspection and test plan (ITP); and
• Packing and labeling plan.

Before production completion and shipment, the buyer may require:

• Batch traceability;
• Records for mesh opening, wire diameter, panel width, post section, and wall thickness;
• Weld, dimensional, and appearance inspections;
• Coating measurements and adhesion records;
• Hardware and quantity checks;
• Packing, labeling, and bundle-number checks;
• Third-party inspection when required by the project;
• Container-loading photographs, packing list, and document index; and
• Closure records for shortages and exceptions.

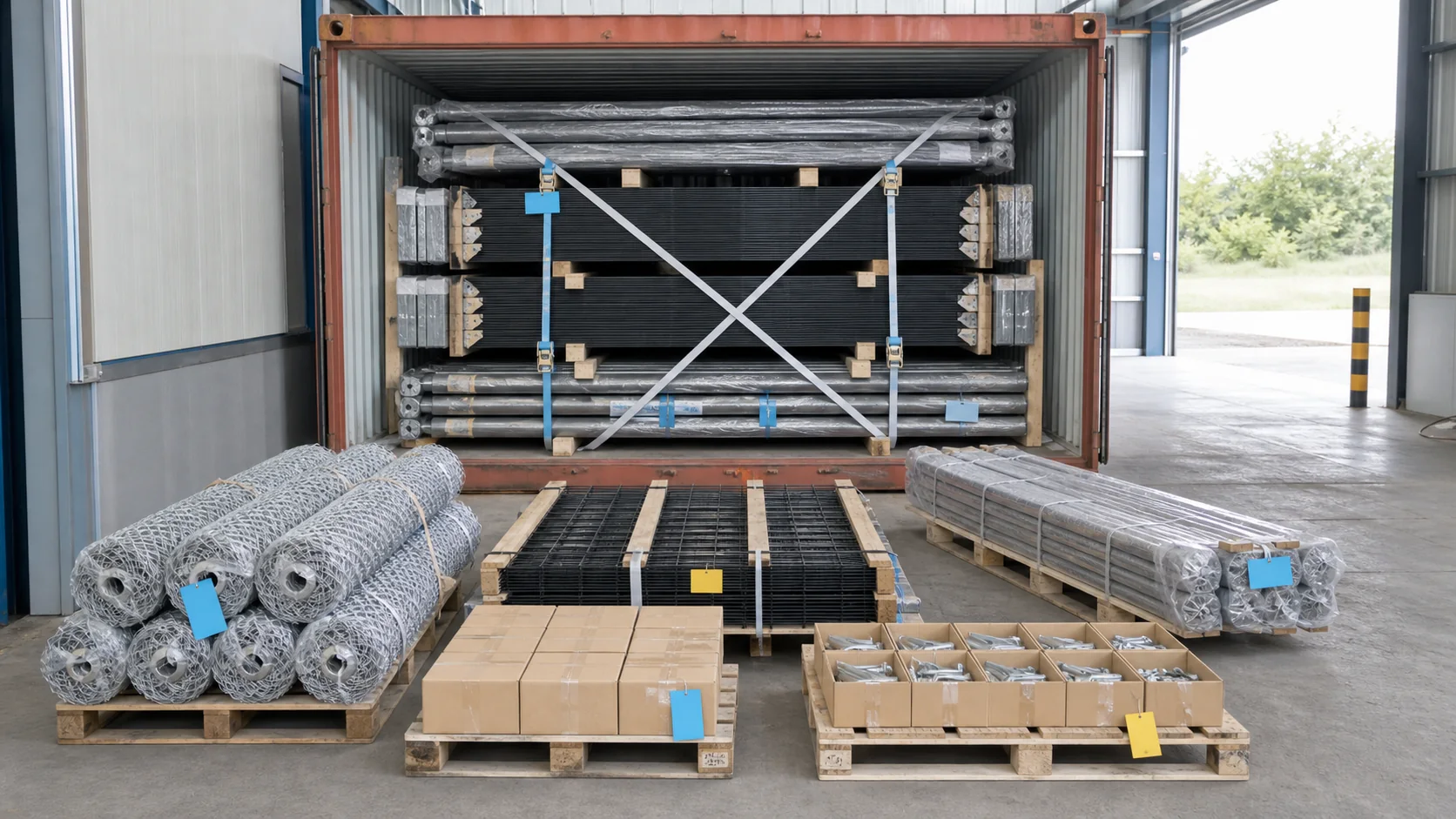

5. Packing, Labeling, and Container Loading

Common delays on export fence projects are often not caused by a nonconforming main material, but by:

• Missing small fittings;
• Posts and panels from different sections being mixed together;
• Bundle numbers that cannot be matched to the BOQ;
• Panel abrasion, deformation, or trapped water;
• An unloading sequence that is the reverse of the site installation sequence;
• Spare parts that are not identified separately; and
• No stated container-loading weight or lifting points.

The RFQ should require each bundle or roll to identify the project number, zone number, fence section, component, quantity, and weight, together with a hardware matching list and container-loading drawing. Use the TOPSFENCE production, inspection, packing, and container-loading process to confirm which photographic and documentary records can be provided.

What Evidence Should a Fence Manufacturer Provide at Each Stage?

Before Quotation

The supplier should state:

• Manufacturable scope and exclusions;
• Inputs that require customer clarification;
• Sample documents that can be provided;
• Which parameters come from the customer's tender and which are supplier recommendations; and
• Whether any alternatives remain unconfirmed.

Before Production

The following should be completed:

• Signed or approved drawing revision;
• Technical specification matrix;
• Deviation schedule;
• Sample approval;
• ITP;
• Packing plan; and
• Confirmation of project standards and document language.

During Production and Pre-Shipment Inspection

The following records should be created:

• Raw-material and batch traceability;
• Inspection records for mesh openings, wire diameters, panels, posts, and hardware;
• Welding and coating records;
• Quantity and spare-parts checks;
• Packing, labeling, and container-loading inspections; and
• Third-party inspection reports when required.

At Shipment

Provide:

• Final packing list;
• Bundle and roll numbers;
• Container-loading photographs;
• Document index;
• Closure records for exceptions and shortages; and
• The latest drawings and component cross-reference required for installation.

Using Specification References on U.S., Canadian, and Australian Projects

Regulations, product standards, owner guidelines, and supplier evidence are not on the same level.

U.S. Projects

When the project expressly invokes them, check separately:

• ASTM A392: zinc-coated steel chain-link fence fabric;
• ASTM F668: polymer-coated chain-link fence fabric;
• ASTM F1043: chain-link fence framework; and
• ASTM F2453/F2453M: the applicable product scope for welded wire mesh.

Before writing “ASTM compliant,” identify the specific standard, edition, component, and evidence. Compliance of one mesh component with a material standard does not mean the complete fence, foundation, gate, and installation automatically comply.

Canadian Projects

When invoked by the project, check the applicable parts of the CAN/CGSB-138 series for chain-link fabric, framework, and installation, using the edition specified by the tender and the requirements of the responsible authority.

Australian Projects

When invoked by the project, AS 1725.1 can be used as a specification reference for chain-link security fences and gates. Its applicability, structural and wind-load requirements, and relationship to security-barrier rules still need to be determined by the project designer and approving authority.

Conflict-Resolution Principle

A common working order on actual projects is:

Contract and tender requirements → approved drawings and formal clarifications → invoked product/installation standards → supplier's internal documents.

When a supplier finds a conflict, it should submit a clarification and deviation rather than interpreting its standard product as “equivalent” on its own.

Port Perimeter Fence RFQ Checklist

• Identify the country, port, and approving authority. This determines the regulations, owner standards, document language, and review responsibility.
• State each security zone or operational task. The outer boundary, cargo restricted area, and parking area may not use the same system.
• Provide a segmented fence-line schedule. A single total length does not show corners, ends, gates, slopes, and different areas.
• State whether chain link or 358 is specified, or whether a performance-based alternative is permitted. A product name does not replace a complete system.
• Define mesh opening, wire diameter, and tolerances. These values affect handholds, tool access, weight, and quote comparability.
• Define posts, rails/clamp bars, fixings, and foundations. The fabric or panel is only one part of the system.
• Provide terrain, elevation, wind, and bottom conditions. Slopes, walls, concrete barriers, and soft soil change the construction.
• List gates, turnstiles, and access-control interfaces. Access points must not become undefined weak points.
• State the CCTV or PIDS interfaces. Sensor compatibility and false-alarm behavior should be reviewed and tested by the system provider.
• Identify vehicle exposure and separate HVM requirements. Standard fencing must not be treated as a vehicle barrier by default.
• Define marine exposure and coating by component. Mesh, posts, fasteners, base plates, and repair areas need different evidence.
• List applicable standards and editions. “To ASTM,” “to BS,” or “marine grade” is not specific enough.
• Require a specification matrix, drawings, ITP, and deviation schedule before production. This prevents a low quote from hiding omissions.
• Define packing, numbering, hardware kits, spare parts, and container-loading evidence. Export damage and missing small parts can delay the complete system.

Frequently Asked Questions

What Is the Best Fence for a Port Facility?

No single fence is suitable for an entire port. Chain link can be the starting point for long outer boundaries, parking areas, and general operational separation. Approved higher-consequence areas can evaluate 358 or another small-aperture rigid system. Vehicle-accessible areas need a separate crash barrier. Waterfront and waterside areas also need separate definitions for corrosion, drainage, and foundations. The safest approach is to prepare a fence schedule by zone/task rather than use one product throughout the facility.

Does ISPS Require 358 Fencing?

No. The ISPS-related framework requires a port facility security plan to prevent unauthorized access and manage restricted areas, access control, monitoring, and approved physical barriers. IMO guidance mentions fencing or other barriers, but it does not designate 358 as a universal product. The use of 358 in public port cases shows that it is an optional system for higher-security areas, not an automatic ISPS requirement.

Does MTSA Require Every Port to Use an 8-Foot Fence?

There is no evidence that 33 CFR 105.260 prescribes one 8-foot fence for every port. PANYNJ guidance and several public port projects do use 8-foot chain-link fencing, but these are owner- or project-level design decisions. The final height should be determined by the FSP, risk assessment, competent-authority requirements, and project drawings.

Can Chain Link Be Used for a Restricted Area?

It can be evaluated, but the name “chain link” is not enough. The project must also check the mesh opening, wire diameter, framework, bottom condition, top measures, gates, monitoring, vehicle barriers, and corrosion protection. Canadian MTSR and U.S. rules both place physical barriers, access control, patrols, and detection in the same security system, so suitability is determined by the approved plan and project standard.

When Is 358 More Suitable?

When the approved task requires fewer climbing handholds, restricted direct tool access, a more rigid panel system, and controlled fixings, 358 is worth evaluating first. The buyer still needs to define the complete panel, post, fixing, foundation, and gate system and specify the exact test standard and product version when a security rating is required.

Is 358 Fencing Crash-Rated?

Standard 358 should not be described as crash-rated. Vehicle threats require a separate HVM system or tested vehicle barrier, foundation, and gate strategy. A fence can be coordinated with that system, but it cannot inherit the crash rating unless the exact combined components have been tested and approved.

What Coating Should a Coastal Port Use?

There is no universal “marine-grade coating.” The buyer should first define the exposure environment, then specify the coating, measurement, and repair requirements separately for the fabric or panels, posts, clamp bars/rails, fasteners, base plates, and installation-damage areas. Public peer projects can inform system design, but their warranty, service life, or environmental classification cannot be transferred directly.

Which Standards Should an RFQ Reference?

Reference only standards and editions that the project actually invokes, that apply to the component, and that the supplier can support with evidence. Regulations determine security responsibilities and performance objectives; product standards describe materials or construction; approved drawings define the project solution; and supplier documents demonstrate production and inspection results. Do not replace a specific standards matrix with the phrase “complies with international standards.”

Which Documents Should Be Approved Before Production?

At minimum, approve the drawing revision, technical specification matrix, deviation and clarification schedule, sample or color sample, ITP, packing plan, and component-numbering rules. When the project requires third-party inspection, also confirm witness points, sampling rates, report format, and document language.

How Can Quotes From Different Suppliers Be Compared Fairly?

Fix the same technical baseline first, then compare included items, excluded items, deviations, evidence, and logistics separately. A low unit price may omit terminal posts, gate hardware, fasteners, coating records, spare parts, or packing. Prices are comparable only when every supplier quotes against the same fence-line schedule, BOM, and document requirements.

Can a Complete System Be Recommended From Length and Height Alone?

No reliable recommendation can be made. The country and port, zone task, terrain and foundations, wind load, gates, vehicle exposure, CCTV/PIDS, waterside interfaces, corrosion environment, applicable standards, documentation, and delivery requirements are also needed. Length and height support only a very preliminary quantity estimate.

Final Recommendation: Define the Zone Task Before Selecting the Product

The correct decision sequence for port perimeter fencing is:

Regulations and security plan → zone task → threats and interfaces → chain link/358/mixed system → marine exposure → drawings and BOM → inspection and shipping evidence.

Chain link is suitable for many long boundaries, operational zones, and temporary tasks. 358 is more suitable for approved higher-security tasks that call for a small-aperture rigid system. Vehicle threats, gates, PIDS, CCTV, waterside conditions, and corrosion must be coordinated separately. Do not let “price per meter” replace a system-level comparison, and do not let labels such as “358,” “marine grade,” or “ASTM compliant” replace an inspectable specification.

Send a sanitized tender extract, BOQ, fence-line schedule, or project drawing through the TOPSFENCE inquiry page for technical clarification and quotation review. The information should preferably include the destination country/port, length and height of each section, zone task, terrain, coating environment, gate and monitoring interfaces, applicable standards, quantity, and delivery schedule.

Public Sources

1. U.S. 33 CFR 105.260 — Security measures for restricted areas
2. Canada Marine Transportation Security Regulations
3. Australia Maritime Transport and Offshore Facilities Security Regulations 2003
4. IMO MSC.1/Circ.1525
5. Port of Long Beach Pier A Zero Emissions Infrastructure Project
6. Maine Port Authority International Marine Terminal Bid Addendum
7. Zaun HiSec 358 product specification
8. Barkers SecureGuard 358 product specification
9. Barkers company history — Port of Calais reference
10. Zaun port border-security case study
11. Jacksons Portsmouth Naval Base case study
