2026 Sports Field Chain-Link Fence Specifications: ASTM Standards, System Schedules, and RFQ Checklist

There is no single sports field chain-link fence height, wire diameter, mesh opening, post spacing, or windscreen configuration that applies to every project. The correct approach is to identify the sport, the fence zones, and the function of each zone first, and then review the owner's specifications, project drawings, local requirements, and sport-specific standards. ASTM F3729-25 can serve as a general reference for outdoor sports and recreation areas; F3684-24 applies to tennis court enclosures; F2000-19 covers baseball and softball field fencing; and F3558-24 addresses pickleball court fencing. Before requesting a quote, these requirements should be converted into a complete schedule for the chain-link fabric, framework, fittings, coatings, installation interfaces, submittals, and packing.

This article is intended for importers, distributors, sports facility contractors, and project procurement teams preparing technical RFQs and bid responses. It does not replace the project specifications, authority requirements, sports governing-body standards, accessibility review, or the final design by a licensed design professional.

Identify the Sport, Fence Zones, and Controlling Documents First

A sports facility project normally has more than one fencing function.

The same project may include:

• site perimeter fencing;
• separation between athletes and spectators;
• ball-containment fencing;
• baseball or softball backstops and wing fencing;
• tennis or pickleball court enclosures;
• player-area or dugout fencing;
• practice cages;
• maintenance access and vehicle gates;
• separation from roads, parking areas, slopes, or other hazards; and
• windscreens or elevated ball-containment netting.

These zones should not automatically use the same height, mesh opening, core-wire diameter, post specification, or foundation design.

Define the Function of Each Fence Zone

Before selecting a chain-link fence product, record the function of each zone.

For example:

• the main purpose of perimeter fencing may be boundary and access control;
• a court enclosure must balance ball containment, visibility, and athlete access;
• a baseball backstop may involve a taller structure, padding, and an interface with overhead ball-containment netting; and
• fencing near a parking area may also separate the field from an adjacent hazard.

Specifications should therefore be developed in this order:

Sport -> fence zone -> functional requirements -> controlling documents -> complete fence system -> RFQ

Starting with a "common mesh opening" or "common wire gauge" can easily produce a familiar-looking product combination that is not suitable for the actual project.

Establish the Document and Responsibility Hierarchy

During procurement and technical review, requirements can be checked in the following order:

• owner, bid, and contract documents;
• authority requirements;
• accessibility, safety, and protective requirements;
• sports governing-body or facility design standards;
• instructions from the project's licensed design professionals;
• applicable ASTM guides, specifications, or installation practices; and
• manufacturer product data and installation instructions.

The contractual order of precedence may differ from one project to another.

If two documents conflict, request written clarification from the owner or design team instead of asking the manufacturer to decide which requirement applies.

Which ASTM Sports Fence Standards Remain Active in 2026?

ASTM documents do not all serve the same purpose:

• Guide: provides a framework for judgment and design considerations;
• Specification: defines performance or product requirements within its scope; and
• Practice: defines installation, construction, or operating methods.

Citing one sport-specific standard does not mean the chain-link fabric, framework, fittings, foundations, and installation requirements have all been fully specified.

2026 Sports Fence Standard Selection Matrix

ASTM F3729-25 is a broad guide for outdoor sports and recreation areas. Its public scope emphasizes that when the governing organization for a sport has established facility requirements, those requirements should receive primary consideration. A general guide also cannot cover every sport with specialized needs.

ASTM F3684-24 addresses the function, layout, design, and maintenance of tennis court perimeter enclosures. Different locations may use different configurations because of differences in ball containment, access, viewing, windscreening, or adjacent facilities.

ASTM F2000-19 is a safety performance specification for baseball and softball field fencing and provides recommended minimum requirements. Those "minimum requirements" cannot be converted directly into one bill of materials for every project.

ASTM F3558-24 addresses such functions as ball containment, limiting unauthorized access, separating athletes from fixed objects or spectators, sightlines, and windscreening for pickleball court fencing.

Withdrawn Standards on Old Drawings Require Clarification

ASTM lists F2631-07 as withdrawn in 2016, with no replacement.

ASTM also lists F969-11(2016) as withdrawn in 2025, likewise with no replacement.

Accordingly, do not state:

• "F3729 formally replaced F2631"; or
• "F3684 formally replaced F969."

When bid documents still cite a withdrawn standard, we recommend the following steps:

• record the original clause in the compliance matrix;
• note that the standard has been withdrawn;
• submit a request for clarification to the owner or design team;
• request confirmation of the current controlling requirement; and
• do not substitute another standard unilaterally in the supplier quotation.

Component Standards Must Still Be Listed Separately

Sport-specific standards do not replace the separate specifications for each component of a chain-link fence system.

Depending on the project, the component schedule may include:

Before issuing a bid response or purchase order, confirm the current version of each standard again.

The standards in this table will not all apply to every project.

Build a Zone-by-Zone Performance Schedule

A zone schedule prevents the buyer and manufacturer from treating the entire sports field as one continuous fence with identical specifications.

Sample Fence Zone Performance Table

The table below is a procurement template, not a default design recommendation.

For each zone, the owner or design team should provide:

• layout and zone ID;
• intended function;
• design wind conditions;
• environmental and corrosion exposure conditions;
• safety clearances;
• accessibility requirements;
• foundation design basis; and
• required submittals and samples.

The supplier should provide:

• available chain-link fabric, framework, fittings, and coatings;
• manufacturable dimensions and tolerances;
• packing methods for fabric rolls, steel pipe, and fittings;
• available samples and documents; and

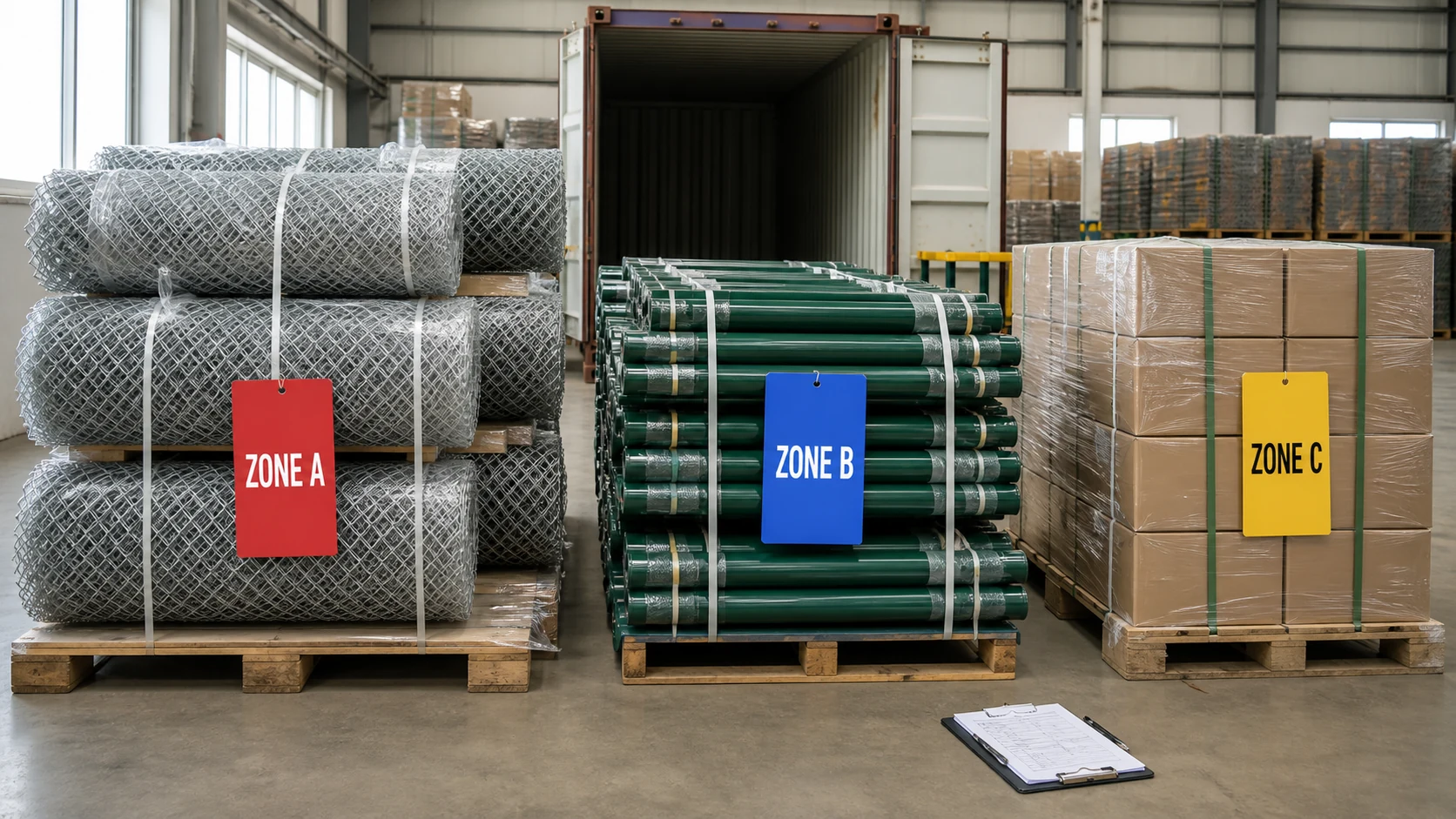

• labeling, packing, and container-loading plans.

Public U.S. school project specifications show that backstop fencing, athletic-field fencing, and general site fencing can be specified separately for different applications, while shop drawings, product data, and physical samples are also required. Such projects demonstrate the importance of zone-based procurement, but their dimensions are project-specific values and cannot be copied as industry defaults.

Convert Performance Requirements Into a Complete Chain-Link Fence System

A reliable RFQ cannot specify only chain-link fabric.

Define the Chain-Link Fabric Specification Clearly

At minimum, record:

• mesh or diamond-opening size;
• steel core-wire diameter;
• wire gauge and the gauge system used;
• finished diameter after coating;
• roll height;
• roll length;
• top selvage;
• bottom selvage;
• metallic or polymer coating specification and class;
• color;
• dimensional tolerances; and

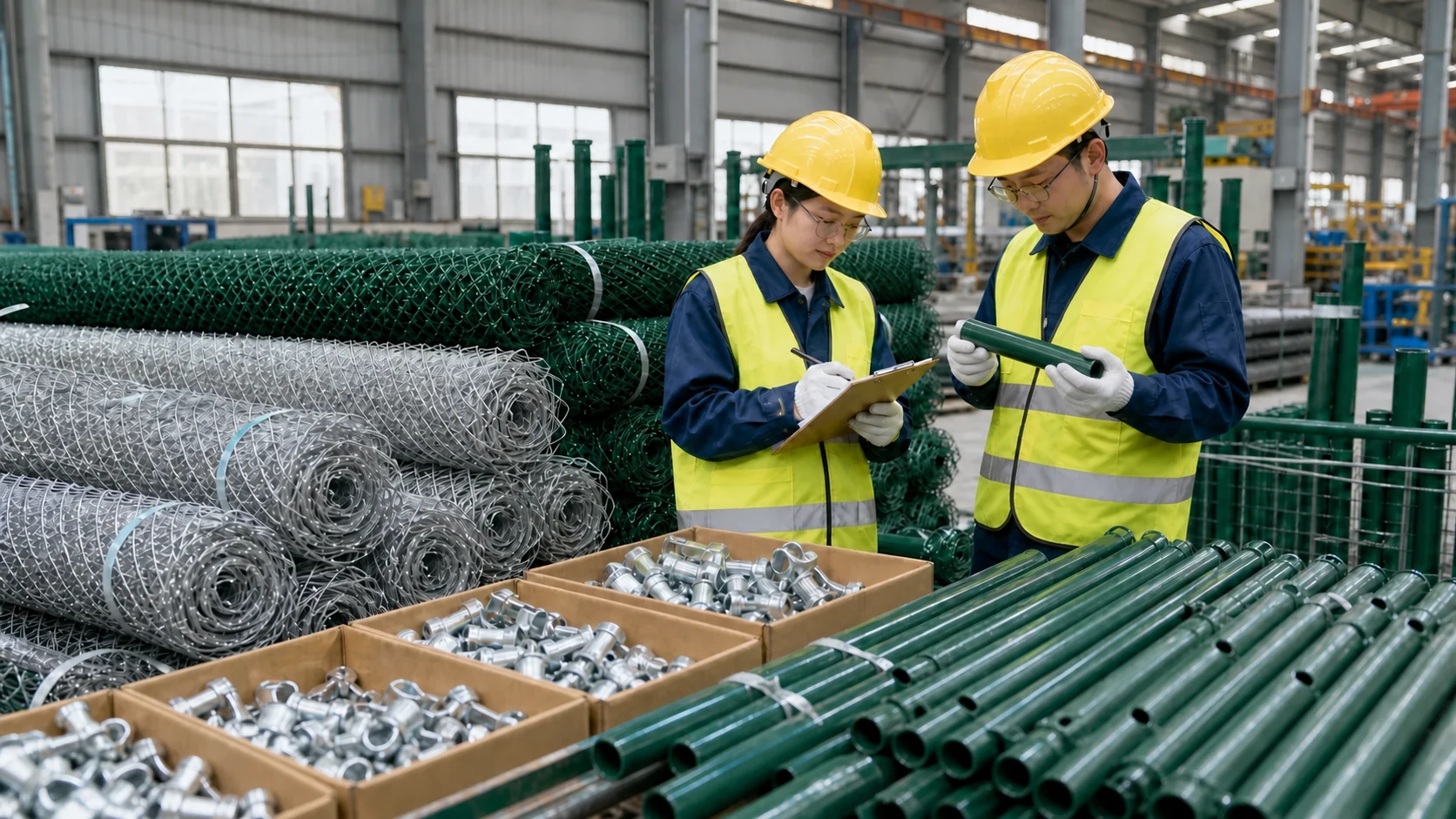

• required inspection, material, or coating documents.

For PVC or other polymer-coated products, do not retain only one ambiguous "wire diameter" field.

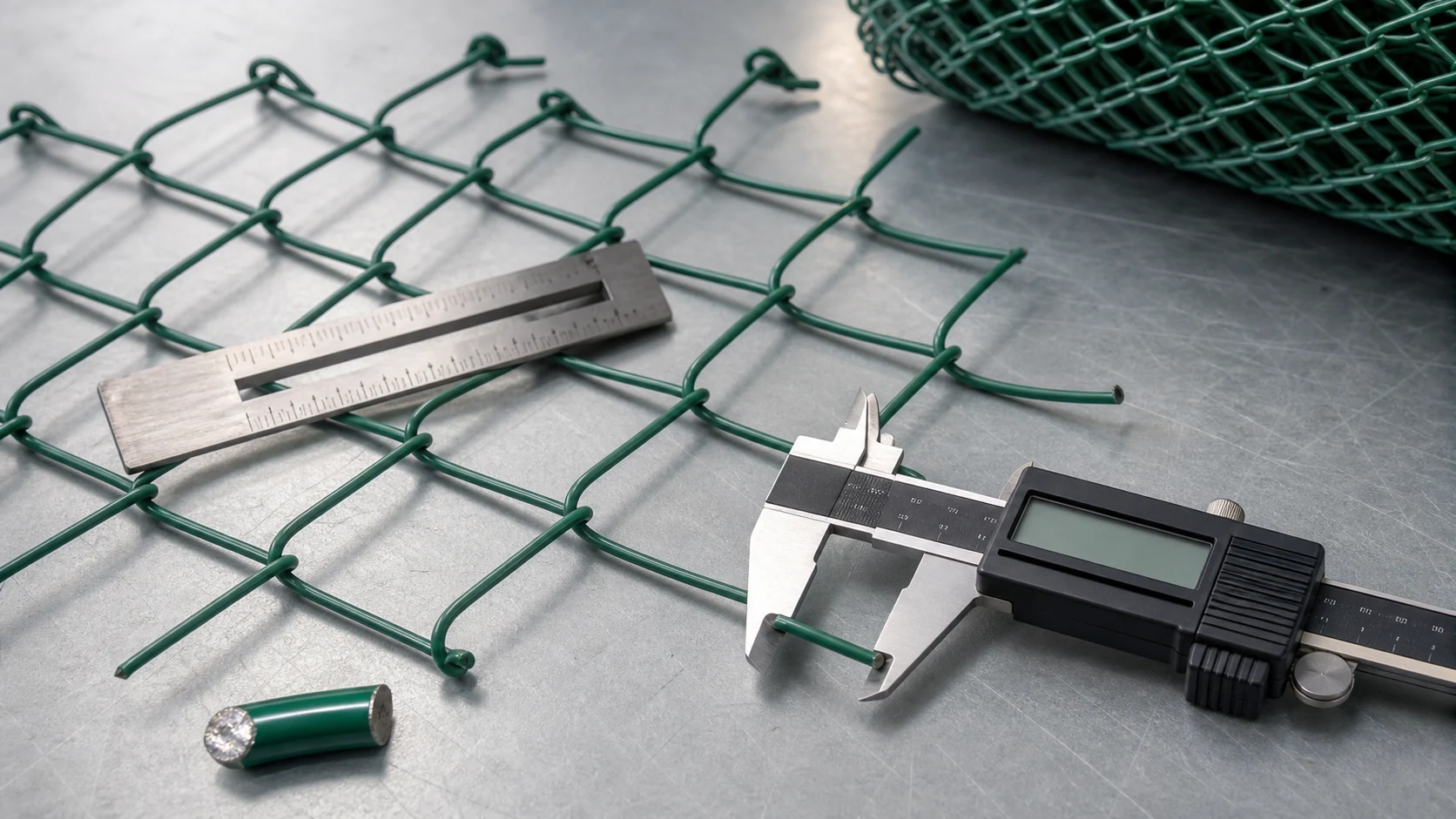

The core-wire diameter and the finished diameter after coating are two different values.

For example, "9-gauge green chain-link fence" is still incomplete because the buyer has not stated:

• whether 9 gauge refers to the steel core or the finished diameter;
• which gauge system is being used;
• the coating thickness; or
• the permitted tolerance.

Specify Framework, Rails, Braces, and Fittings as a System

The framework schedule should include:

• outside diameter and wall thickness of line posts;
• outside diameter and wall thickness of terminal, corner, and gate posts;
• framework material or reference grade;
• protective coatings on interior and exterior surfaces;
• top rail;
• bottom or intermediate rail;
• brace rails;
• line-post spacing;
• terminal bracing;
• tension wire;
• tension bars and tension bands;
• tie wires or clips; and
• rail ends, post caps, and other fittings.

Framework dimensions cannot be selected independently of:

• fence height;
• fabric wire diameter;
• mesh opening;
• windscreen;
• local wind conditions; and
• site design requirements.

ASTM F1043 relates framework load capacity and post spacing to fabric characteristics, framework specifications, and design wind loads.

It cannot be interpreted as "one table for every sports field."

Keep Foundation Design Within the Correct Scope of Responsibility

As the manufacturer, we may need to know:

• whether posts are embedded, flange-mounted, or installed by another method;
• the project's design wind conditions;
• the scope of windscreens and elevated netting systems;
• the locations of line posts, terminal posts, and gates;
• corrosion and environmental exposure conditions; and
• whether foundation materials are included in the supply scope.

The following, however, should be determined by the project documents and local professionals:

• soil assumptions;
• foundation dimensions;
• concrete grade;
• embedment depth; and
• final structural capacity.

Industry wind-load guides commonly consider:

• basic wind speed;
• exposure category;
• fence height;
• mesh opening;
• wire diameter;
• post material and section;
• icing conditions; and
• windscreen coverage.

One generic post spacing or foundation dimension therefore cannot replace project-specific calculations.

Check Safety Details on the Athlete Side

The project team should check:

• exposed wire ends;
• tie-wire tails;
• sharp edges and points;
• entrapment or snagging hazards;
• gaps between the ground and components;
• fabric installation orientation;
• rails and fittings facing the field side;
• collision risk between athletes and posts;
• protective padding;
• transitions between fencing, walls, gates, player areas, and netting systems; and
• adjacent roads, parking areas, slopes, or hard facilities.

These details should be determined according to the project, the sport, and local requirements rather than written as one construction rule for every project.

Adapt the System for Different Sports and Markets

Tennis and Pickleball

Tennis and pickleball enclosures must balance:

• ball containment;
• athlete access;
• spectator sightlines;
• gate locations;
• maintenance access;
• safety; and
• windscreening.

Different zones of the same court may use different heights.

The enclosure system may also interface with lighting, shade structures, spectator areas, and landscaping.

For tennis projects, review F3684 and the project requirements. For pickleball projects, review F3558 and the owner's facility standards.

The RFQ should record each windscreen panel separately:

• installation zone;
• height and length;
• coverage area;
• open-area percentage or air permeability;
• attachment method; and
• whether it is permanent, seasonal, or removable.

Writing only "include windscreen" does not provide enough structural input.

Baseball and Softball

Do not combine all of the following into one "field fence" line item:

• outfield or perimeter fencing;
• backstop fencing;
• backstop wing fencing;
• dugout fencing;
• bullpen or practice areas;
• spectator-separation fencing;
• overhead protection on the field side;
• padding; and
• overhead or extended ball-containment netting.

F2000 can serve as a safety-performance reference, but the actual configuration should still be controlled by the field drawings and owner documents.

In public school projects, the backstop area, athletic field, and general site fencing often use different fabric requirements, and windscreen height is determined by the project drawings. Those values represent only the corresponding project and cannot be copied into other bid packages.

Soccer, Football, Lacrosse, Cricket, and Multipurpose Fields

Where applicable, F3729 can serve as a broad starting point for judgment, but each zone should still consider:

• how the ball travels;
• athlete and spectator circulation;
• distance from roads or parking areas;
• adjacent sports;
• shared access routes;
• maintenance access;
• security;
• sightlines; and
• local safety and accessibility requirements.

Public information for Canadian cricket facilities shows different chain-link backstop, side-fence, and practice-cage heights at different sites. This demonstrates that height is determined by the specific layout and function, not by one standard product table.

Terminology Differences in the United States, Canada, and Australia

Different terminology does not mean that market standards are interchangeable.

U.S. ASTM guides do not automatically apply to Canadian municipal projects or Australian bid projects.

Australian projects may cite different parts of AS 1725 for tennis courts, cricket enclosures, or general sports ground fencing and may also cite AS 2423 requirements for coated steel wire products. Before claiming compliance, verify the exact edition and contract provisions required by the project.

Windscreens, Tall Backstops, and Ball-Containment Netting Change the Structural Question

A windscreen changes more than appearance; it also increases the area exposed to wind.

The RFQ should record:

• the fence zone where the windscreen will be installed;
• the height and length of each windscreen panel;
• total coverage area;
• open-area percentage or air permeability;
• attachment spacing and connection method;
• local design wind conditions;
• exposure category or equivalent project parameter;
• whether the windscreen is permanent, seasonal, or removable;
• whether windscreening will be installed on gate leaves;
• whether printed graphics or identification are included; and
• who is responsible for the structural calculations.

Depending on the design conditions, windscreening may affect:

• post size;
• post spacing;
• rails;
• bracing; and
• foundations.

The design should also be reviewed again when the fence is connected to:

• ball-containment netting;
• steel cables;
• protective padding;
• signage;
• lighting attachments; or
• other attached components.

The fact that a windscreen can be physically attached to an existing fence does not establish that the existing fence has adequate structural capacity.

Define Load Transfer and Responsibility Interfaces

The project drawings should show the relationship among:

• chain-link fabric;
• line posts and terminal posts;
• rails and braces;
• windscreens;
• ball-containment netting;
• support cables;
• protective padding;
• signage;
• lighting or shade structures; and
• concrete foundations.

The supplier's component schedule should make clear:

• which components are included in the quotation;
• which components are supplied by others;
• which connections require confirmation by the project design team; and
• which calculations are outside the manufacturer's supply scope.

Unless project-specific structural calculations have been prepared and approved by the responsible licensed professional, a factory quotation cannot be described as an approval document for local wind loads, foundations, or structural interfaces.

What Should Importers Approve Before the Purchase Order?

Use a Compliance and Deviation Matrix

Deviations should not be hidden in a generic note at the end of a quotation.

Record separately:

• the owner's requirement;
• the value quoted by the supplier;
• supporting evidence;
• the deviation;
• the responsible reviewer; and
• approval status.

Approve Shop Drawings and Samples

Before production, review:

• fence elevations;
• zone IDs;
• lengths and heights;
• fabric schedules;
• framework schedules;
• typical connections;
• terminal bracing;
• gates included in the order;
• color and surface finish;
• windscreen and netting-system interfaces;
• components supplied by others; and
• packing and bundle labels.

Public project specifications commonly require the following submittals before installation:

• shop drawings;
• product data;
• material compliance documents;
• fabric samples; and
• sample sections of the different steel-pipe types.

These requirements can help the buyer identify system mismatches before production.

Pre-Shipment Inspection

The inspection plan should match the approved component schedule.

Typical items we check include:

• steel core-wire diameter;
• finished diameter after coating;
• mesh opening;
• roll height;
• roll length;
• top and bottom selvage;
• coating and color;
• post outside diameter;
• post wall thickness;
• rail dimensions;
• fitting quantities;
• coating appearance;
• steel-pipe bundle and carton labels;
• spare parts; and
• packing-list quantities.

Each document should be described only according to what it actually demonstrates.

For example:

• a fabric dimensional inspection record cannot prove that the foundation design is adequate;
• a steel-pipe material certificate cannot prove that the entire installed system complies with every project clause; and
• a coating report cannot replace the project's structural review.

Pack and Label by Fence Zone

For a sports field project with multiple zones, the drawing zone ID should be marked on:

• fabric rolls;
• post bundles;
• rail bundles;
• fitting cartons;
• gate-component packages; and
• spare-parts boxes.

The packing list should link each package unit to the approved fence-zone schedule.

This can reduce errors such as:

• installing backstop components in the perimeter fence;
• opening and mixing fittings for different zones;
• being unable to identify the intended use of steel pipe or fittings after arrival on site; and
• having an installation sequence that does not match the container-loading sequence.

Sports Field Chain-Link Fence RFQ Checklist

• Project country and location.
• Sport and facility type.
• Owner or bid technical specifications.
• Current drawing number and revision.
• Fence-zone ID.
• Length and height of each zone.
• Mesh or diamond-opening size.
• Steel core-wire diameter, gauge system, and coating.
• Top and bottom selvage.
• Post, rail, and brace schedule.
• Windscreens, ball-containment netting, padding, and signage.
• Required shop drawings, reports, tests, and samples.
• Zone labels, packing method, and spare parts.
• Quantity, destination, and Incoterm.
• Items that still require approval by the local design team, installer, or authority.

Please send us the sport, fence-zone drawings, the length and height of each zone, the windscreen or netting-system area, surface finish, destination, and required submittals.

Based on this information, we at TOPSFENCE can organize the component schedule and packing plan and identify items that still require confirmation by the project design team or local installer.

Frequently Asked Questions

Which ASTM Standard Applies to Sports Field Chain-Link Fencing?

It depends on the sport and the function of the fence. ASTM F3729-25 is a general guide for outdoor sports and recreation areas; F3684-24 addresses tennis court enclosures; F2000-19 covers safety performance for baseball and softball field fencing; and F3558-24 addresses pickleball court fencing. Owner documents, authorities, sport-specific standards, and the project design team still control the final design.

Did ASTM F3729 Replace F2631?

ASTM lists F2631-07 as withdrawn in 2016, with no replacement. F3729 is a current guide for fencing in outdoor sports and recreation areas, but its public status does not establish a formal replacement relationship between the two documents. When an older project still cites F2631, request written clarification from the owner or specification writer.

Does ASTM F969 Still Apply to Tennis Court Fencing?

No. ASTM lists F969-11(2016) as withdrawn in 2025, with no replacement. The project team may review the current F3684-24, but F3684 cannot automatically replace F969 on older drawings without approval from the specification writer.

What Wire Gauge Should a Sports Field Chain-Link Fence Use?

There is no universal sports field wire gauge. The correct steel core-wire diameter depends on the sport, fence zone, mesh opening, height, use intensity, coating, windscreening, and project documents. The RFQ should define the core-wire diameter and gauge system. For coated products, record the finished diameter separately.

What Mesh Opening Should Tennis, Pickleball, or Baseball Fencing Use?

Select it according to sport-specific documents, the ball-containment function, fence location, and project specifications. Backstop areas, court enclosures, and general perimeter fencing may require different mesh openings. Values copied from another school or municipal project, or from a supplier chart, are only references unless they are formally adopted by the project design team.

How Tall Should Sports Field or Backstop Fencing Be?

Height depends on the fence zone, ball trajectory, adjacent uses, spectator location, circulation, safety, and site layout. Perimeter fencing, athlete-separation fencing, outfield fencing, and backstop fencing should not automatically use the same height. Show the height of each zone on the drawings and obtain project approval.

Can a Windscreen Be Installed on Any Chain-Link Fence?

No. Windscreening increases the area exposed to wind and may affect framework strength, post spacing, bracing, and foundations. Before installation, review the windscreen area, open-area percentage, attachment method, and local wind conditions. The fact that a windscreen can be tied to an existing fence does not establish that the existing structure is safe.

What Is the Difference Between Core-Wire Diameter and PVC-Coated Diameter?

The core-wire diameter is the diameter of the steel wire inside the polymer coating; the finished diameter includes the coating. Two products with the same finished diameter may contain different amounts of steel. Where applicable, record both values during procurement and state which dimension the gauge refers to.

Which Documents Should Importers Request From the Manufacturer?

Depending on the bid requirements, importers may request product data, component schedules, shop drawings, a compliance and deviation matrix, material or coating documents, dimensional inspection records, samples, packing lists, and a zone-labeling plan. Each document should identify the component, sample, or batch it covers and the project clause it actually supports.

If the Fabric Complies With ASTM, Does the Entire Fence Comply With ASTM?

No. The fabric, framework, fittings, and installation may each be controlled by different standards. The complete system may also involve project-specific structural, safety, wind-load, foundation, accessibility, and interface requirements. Evidence for one fabric component cannot prove that the complete installation complies with every project requirement.

Who Is Responsible for Approving Post Spacing and Foundations?

The design team and authorities identified in the project contract should approve them based on wind conditions, soil, local requirements, and structural conditions. We can provide component information and manufacturable specifications, but a general supplier chart cannot replace project structural design.

What Information Does a Reliable Sports Field Fence RFQ Require?

At minimum, provide the project country, sport, bid specifications, current drawings, zone schedule, lengths, heights, mesh opening, steel core-wire diameter, coating, selvage, framework, bracing, windscreen or netting system, submittals, packing method, destination, and trade terms. Identify separately any items that still require approval by local professionals.
