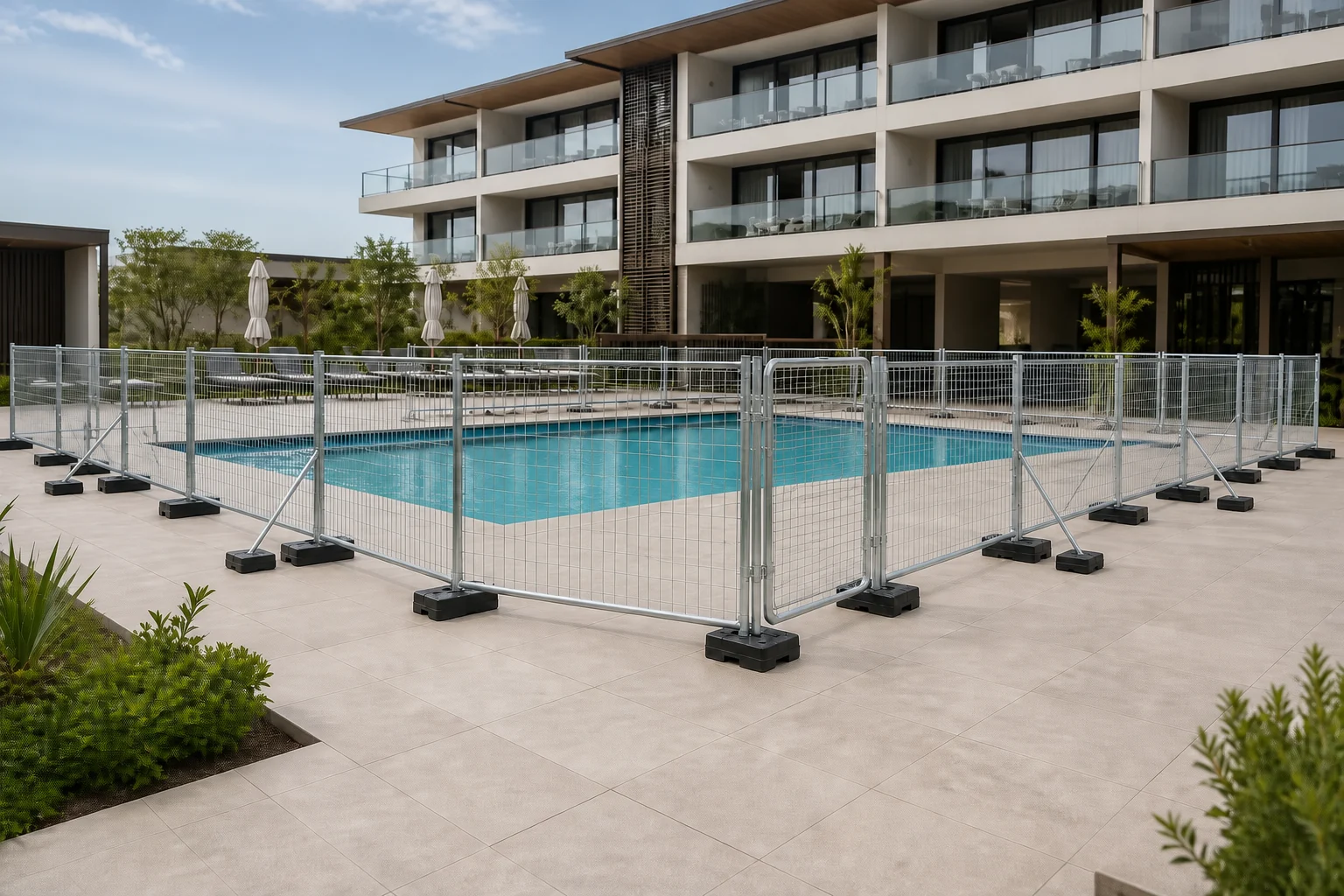

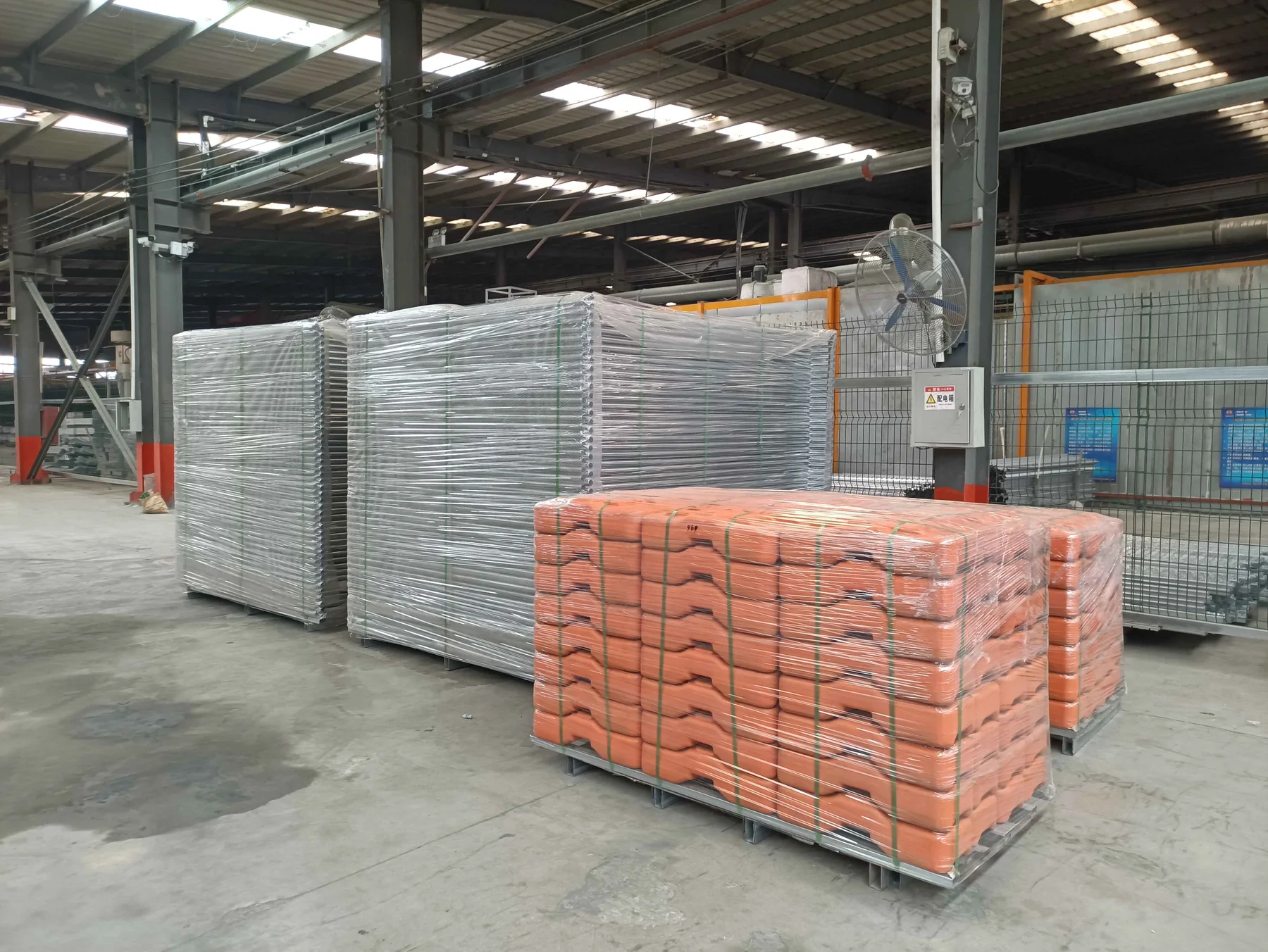

Poolside installation images are configuration visualizations; the factory-packing image is a production photo. Final dimensions and support layout follow the approved drawing.
Custom temporary pool fence manufacturer
We manufacture galvanized welded-mesh temporary pool fence panels for completed pool perimeters. The rigid modular bays use weighted bases, clamps and support stays, so the approved layout can be installed without drilling the finished deck. Custom panels, matching gates, hardware and export packing are supplied as one project-ready system.
One complete supply package
We quote the galvanized panels and every supporting component as one system. This gives importers, distributors and project buyers a complete bill of materials instead of an incomplete panel-only price.

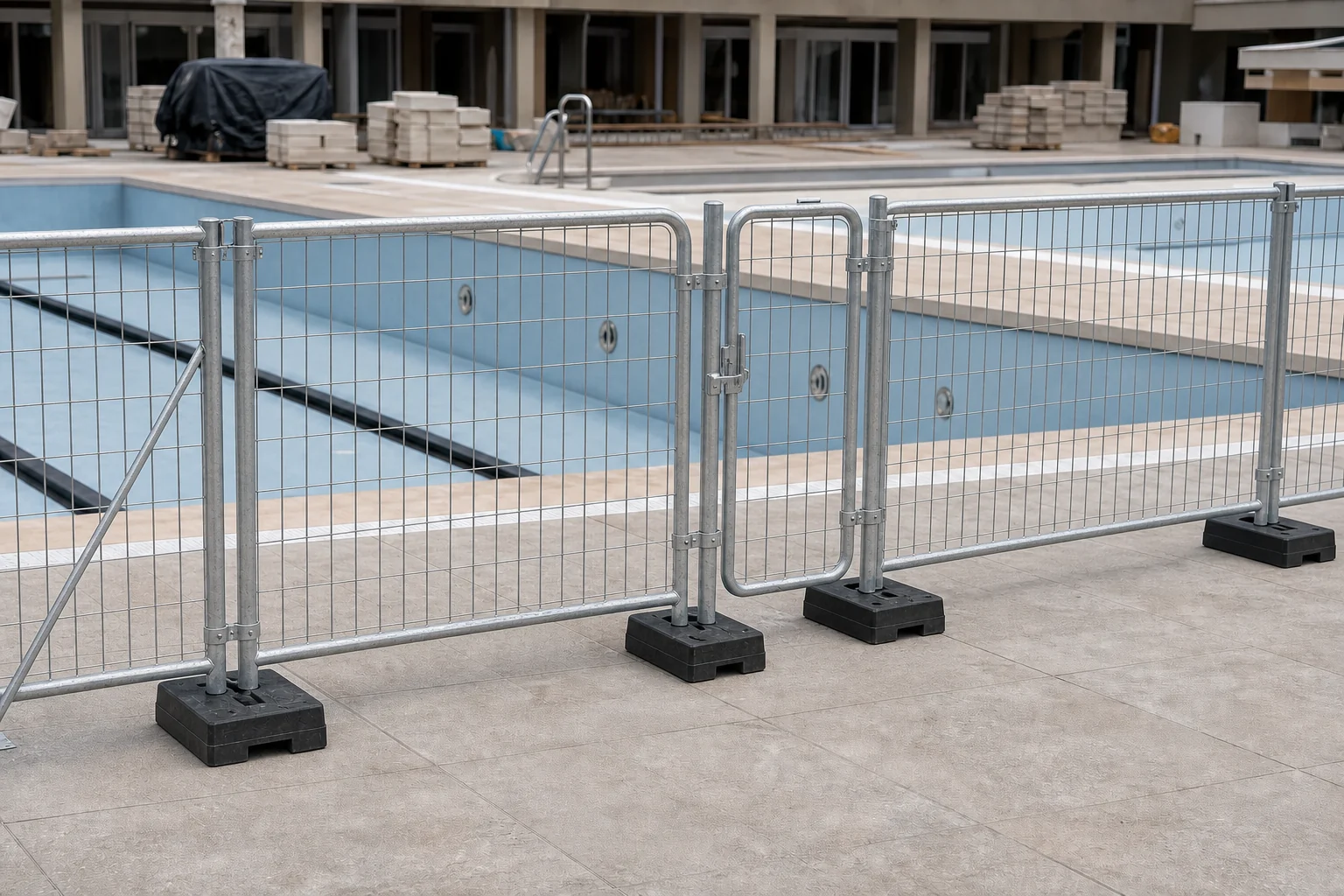

Rigid modular panelsFence body
Round-tube steel frames and welded-mesh infill form rigid modular bays for completed pool perimeters.
No-drill support
Concrete, rubber or steel weighted bases support the panel line without intentional drilling into the finished pool deck.

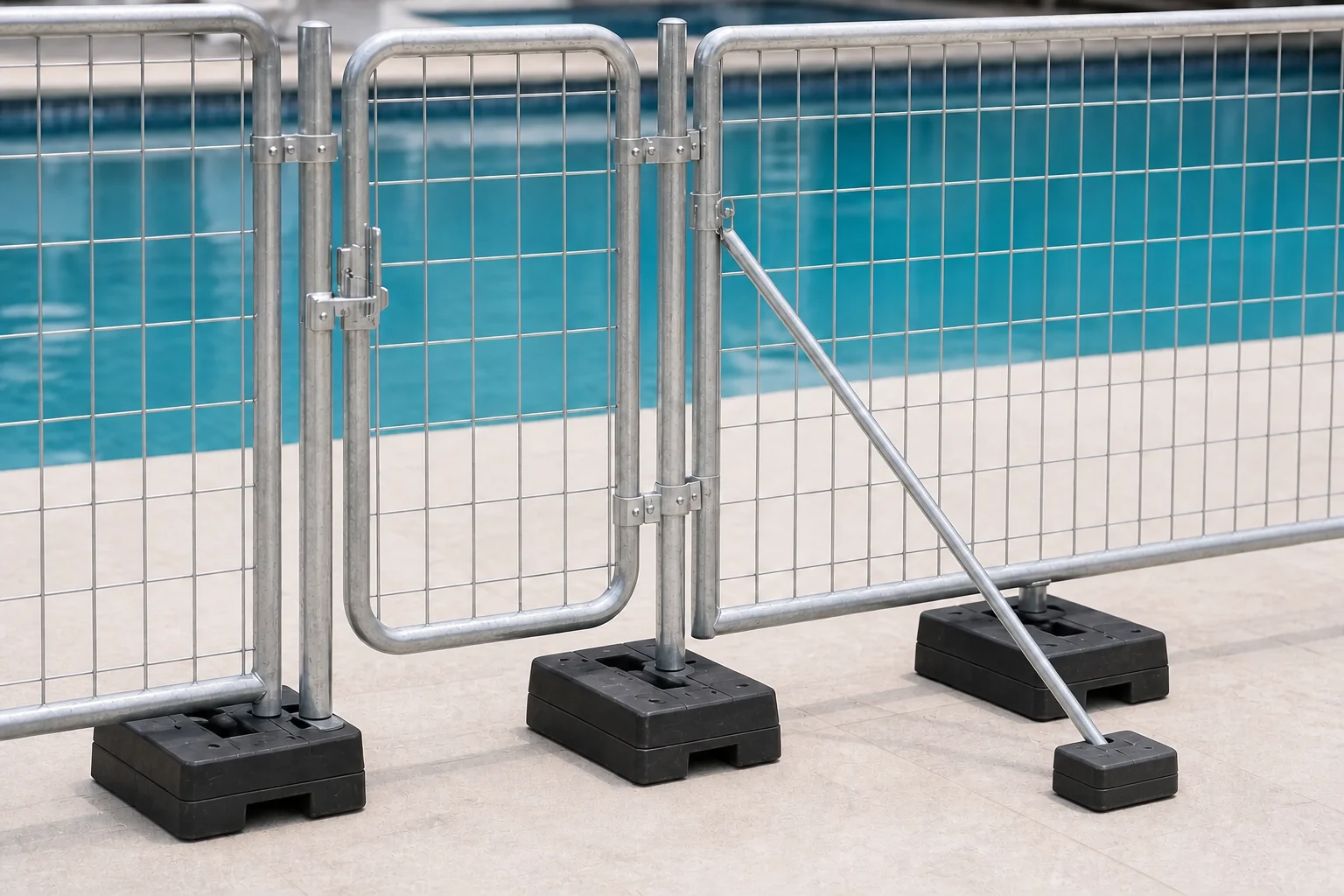

Matched access
Matching framed gates, shorter bays and corner transitions are confirmed from the approved pool layout.
Review the complete configuration
A useful quotation matches the approved fence line, support layout, gate package and export packing. Compare every supplier against the same bill of materials.
| Quotation group | Included scope | Confirm before production |
|---|---|---|
| Panels | Galvanized round-tube frame and welded-mesh infill | Height, width, tube, wire, opening and finish |
| Weighted support | Concrete, rubber or steel bases with protective contact points as specified | Surface condition, footprint, slopes and walking clearance |
| Connections | Top clamps, bolts, corner parts and support stays | Bay count, corners, changes in level and support layout |
| Access | Matching framed gate, hinges, latch hardware and support | Opening width, swing direction and required gate behavior |
| Spares | Approved spare clamps, bolts, hinges and latch parts | Distributor stock or project replacement quantity |
| Export packing | Panel pallets, counted base loads and hardware cartons | Order quantity, labels, packing marks and destination port |
Confirm standard panel, base, gate and spare-part combinations that can be received, stocked and reordered consistently.
Provide the actual fence line, surface, corners, steps, gate positions and handling plan before approving production.
The buyer or project professional must confirm barrier dimensions, gate behavior, support layout and any required test scope.

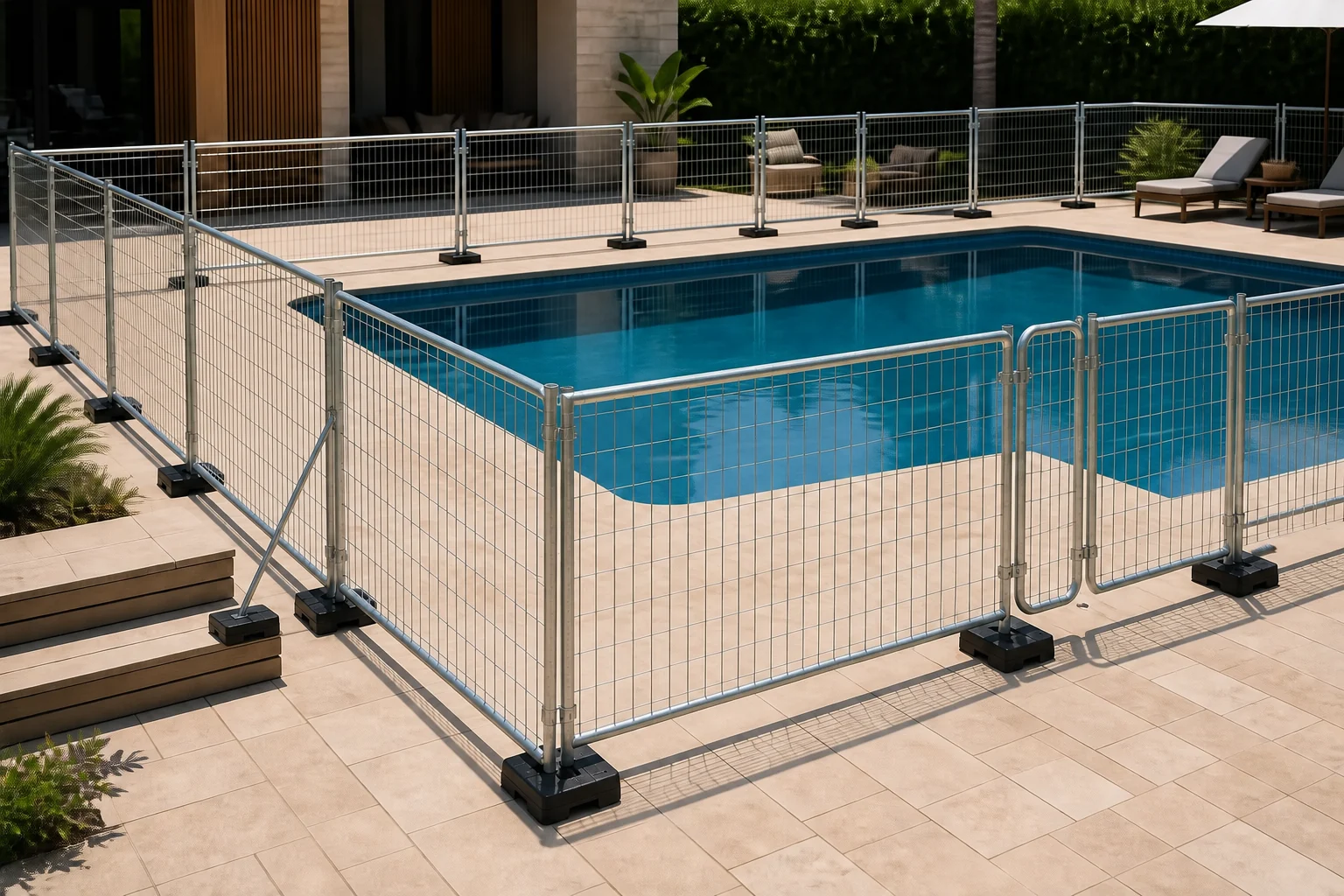

Pool-side layout and surface fit
The freestanding panel system avoids intentional deck holes, but the approved support plan must still match the surface, access route, corners, level changes and local project requirements.
| Pool or site condition | Recommended panel configuration | Confirm before quotation |
|---|---|---|
| Completed concrete deck | Weighted bases with protective contact points and the approved support-stay layout | Fence line, drainage, walking clearance, gate position and local rules |
| Above-ground pool with a surrounding deck | Freestanding bays where the completed deck or adjacent surface supports the approved footprint | Access points, climbable surroundings, deck edge, level changes and gate behavior |
| Paver, tile or finished patio | Non-penetrating bases with surface protection matched to the approved layout | Surface strength, voids, slopes, fragile finishes and trip clearances |
| Irregular perimeter | Shorter bays and approved corner transitions around steps and obstructions | Scaled layout, corners, changes in level, obstacles and gate swing |
| Seasonal relocation | Numbered panels, bases and hardware for controlled removal and reassembly | Storage method, part identification, reinstallation inspection and spare hardware |
Quotation reference
The values below are common starting points seen in temporary pool fence sourcing. They are not fixed TOPSFENCE specifications or a compliance claim. We manufacture the final order to the buyer's approved drawing, sample and requested test scope.
| Quotation item | Available configuration |
|---|---|
| Typical height | 1.2–1.4 m Custom height by approved drawing |
| Typical panel size | 2300 × 1350 mm 2400 × 1200 mm 2400 × 1300 mm |
| Frame | 32 / 38 / 42 mm round-tube steel |
| Infill | Galvanized welded mesh by approved wire diameter and opening |
| Finish | Hot-dip galvanized; powder coating when requested |
| Support method | Approved weighted concrete, rubber or steel bases with clamps and stays |
| Connections | Top clamps, bolts, stays and corner parts |
| Access | Matching framed pedestrian or wider gate |
| Quotation basis | Panels + bases + clamps + stays + gates + spares + packing |
Made to your project
Because this is a custom product, the quotation becomes accurate only after the fence line, fixing surface, complete bill of materials and gate package are confirmed together.
Provide a marked pool plan or drawing, total fence length, corners, curves, steps, obstructions and preferred gate positions.
Approve the panel dimensions, weighted-base footprint, clamps, support stays, corners and gate positions.
Approve the welded-mesh infill, bases, clamps, stays, hinges, latch, finish, spares and packing.
Review the production drawing, quotation, evidence scope, labels, packing marks, quantity and destination details before manufacturing starts.

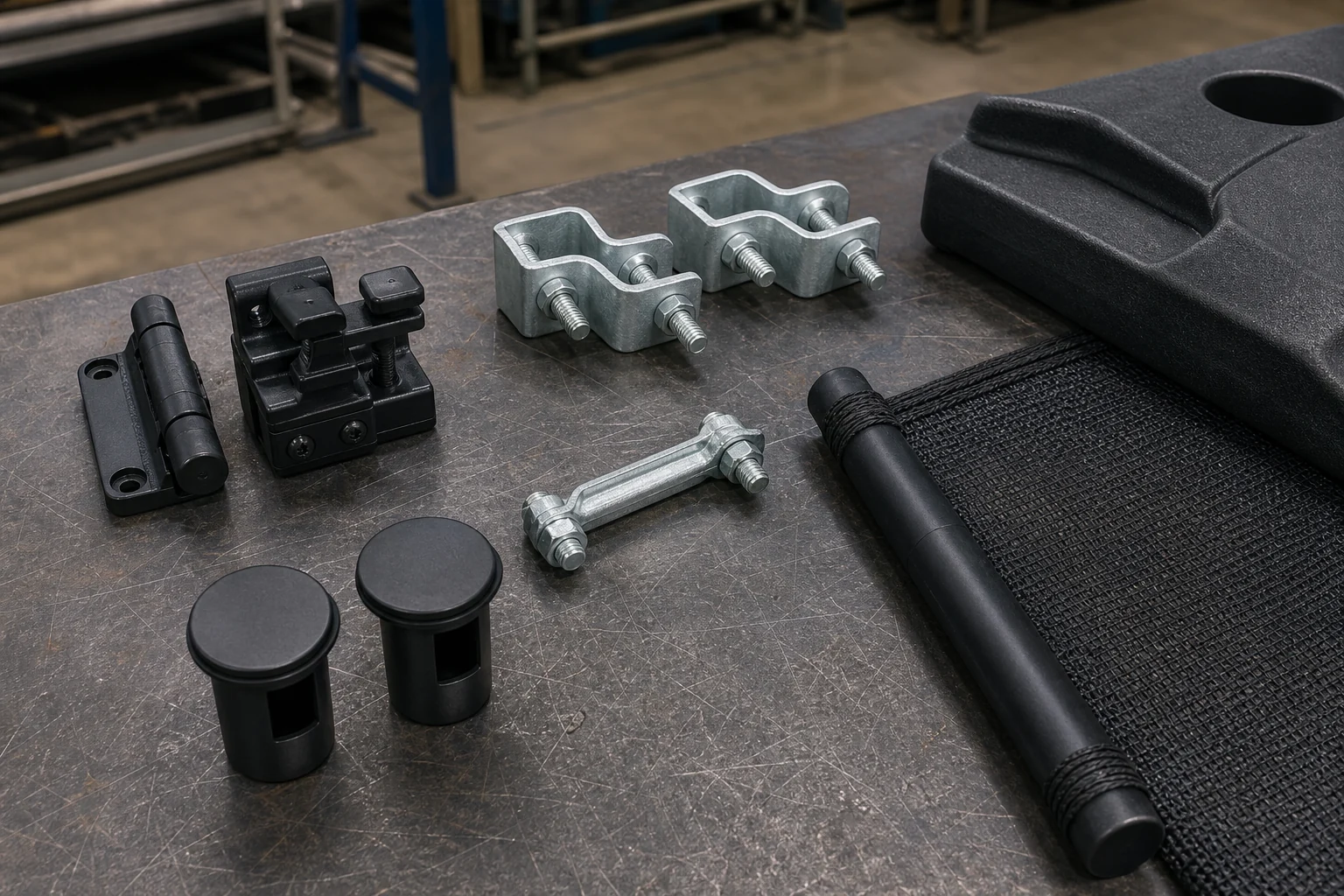

Complete system supply
We list the small parts separately because installation failures often begin with a missing clamp, wrong base opening, unsupported corner or unspecified gate part.
Tube frame and infill manufactured to the approved dimensions, finish and edge requirements.
Galvanized wire diameter, opening and edge condition manufactured to the approved order sheet.
Concrete, rubber or steel base options selected around the approved surface and support layout.
Top clamps, corner parts, support stays, bolts and spare hardware counted by bay and gate.
Opening width, swing, hinges, latch position and closing behavior confirmed from the approved specification.
Panel pallets, base loads and hardware cartons identified for receiving and stock control.
Installation and removal overview
The final method must follow the approved drawing and local requirements. This outline helps buyers scope the weighted bases, support hardware, labor, storage and inspection before ordering.
Confirm the barrier line, gate, corners, slopes, steps, clearances and local approval path before positioning any component.
Follow the drawing for base spacing, surface protection, corners, support stays and walking clearance without intentionally drilling the deck.
Position the galvanized bays, install top clamps, support stays and gate parts, then check alignment and every connection.
Release the approved connections, identify panels, bases and hardware, store all parts dry and protected, and inspect each component before reinstallation.
Do not assume a moved fence retains the original performance. Recheck base fit, alignment, clamps, stays, gate swing, latch operation and local requirements.
State whether the project requires production drawings, installation instructions, material or coating records, QC photos, packing lists or a defined third-party test scope.
Up to 6,000 sets per month
Our monthly production capacity reaches up to 6,000 sets, subject to configuration and schedule. Every batch follows material, dimension, weld, finish, component-fit and pack-count checks against the approved order.
Confirm steel tube and welded-mesh wire against the approved order sheet.
Measure panel size, frame diagonal, gate opening and critical connection points.
Check frame and mesh welds, wire ends and exposed edges before finishing.
Test weighted bases, clamps, stays, hinges and latches with actual production parts.
Review the specified finish and visible handling marks before bundling.
Match panel pallets, base loads and hardware cartons to the packing list.

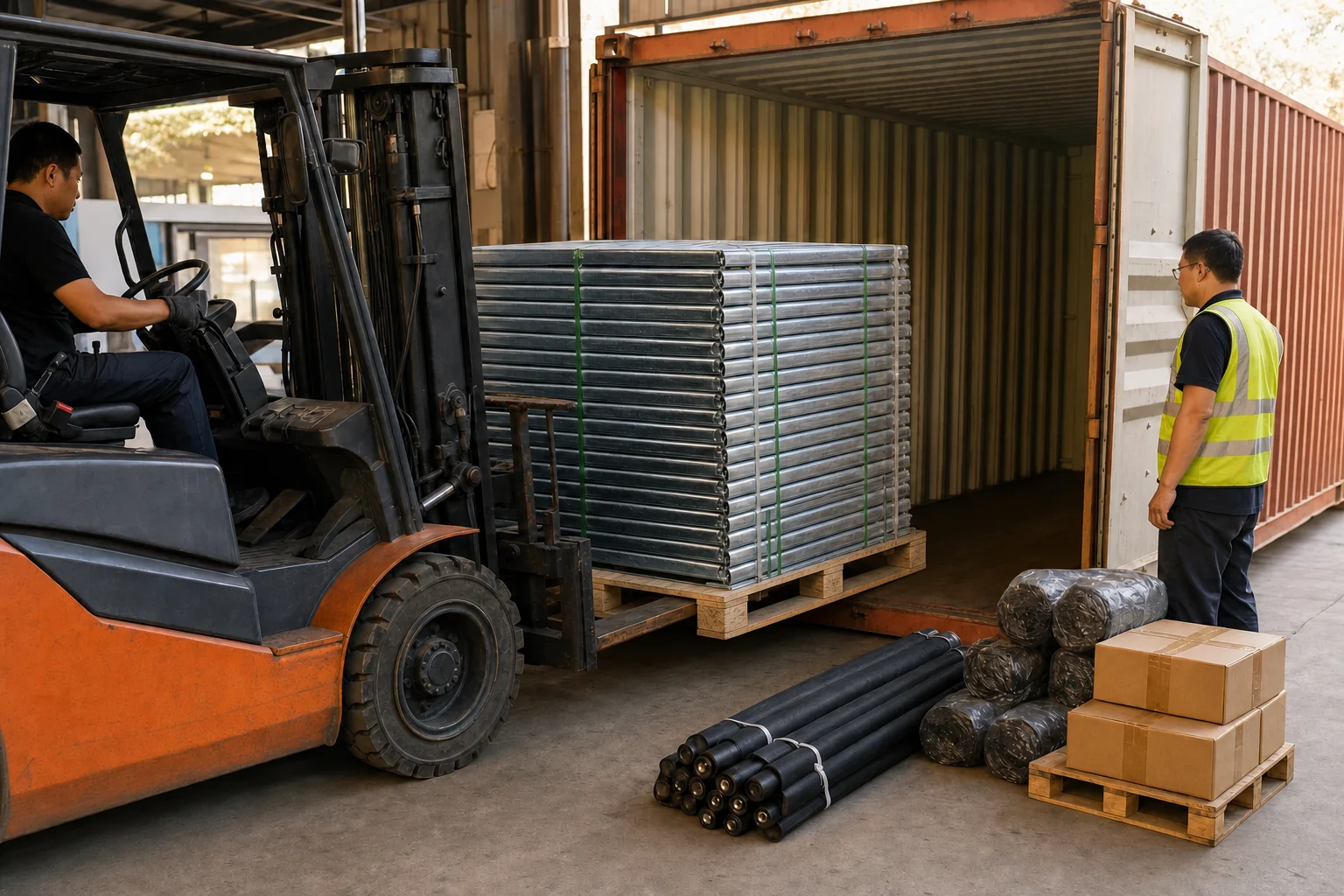

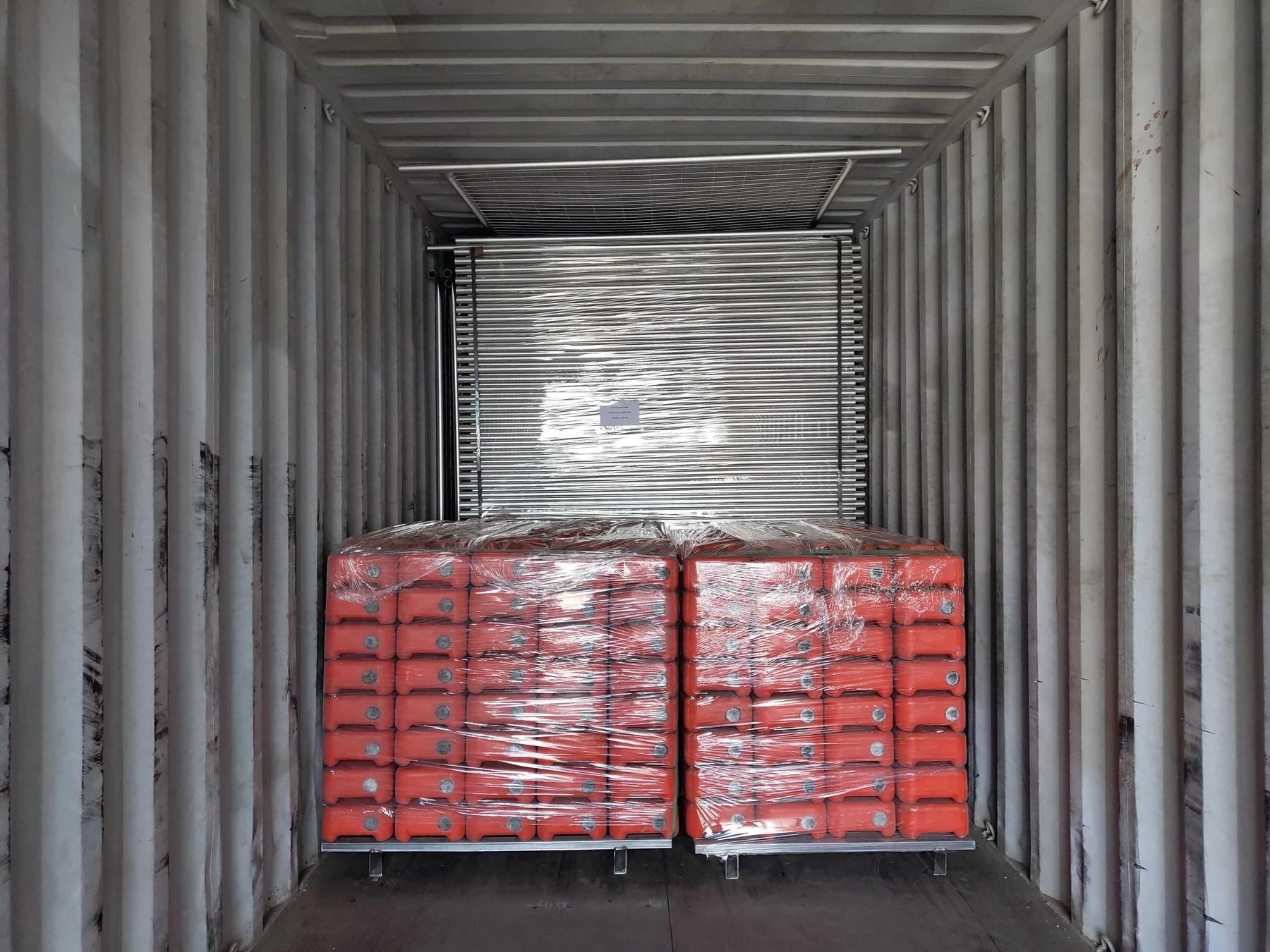

Exported to 100+ countries
We plan pallet protection, base loading and counted hardware cartons around the order and destination so distributors and project buyers can receive one complete system.
Steel panel pallets nested with separators, stable strapping and protected contact points.
Weighted base loads grouped and secured for handling and receiving.
Hardware cartons counted for clamps, stays, hinges, latches and spare parts.
Loading records available for buyers who need pallet, carton and container photos.
Project requirements and approval
This fence is manufactured to the buyer's approved drawing and order specification. Product supply alone does not establish compliance in every market. The buyer and project professional must confirm barrier dimensions, openings, gate behavior, support layout, installation method and any required test scope before production.
State the required dimensions, openings, gate behavior, support layout, installation method and approval path before ordering.
If the project requires material records, coating checks, production drawings or third-party testing, define the scope before production.
We can document the approved dimensions, components, batch checks and packing. We do not describe an untested generic configuration as universally compliant.
Get a useful quotation
Price changes with the complete bill of materials. Compare quotations using the same drawing, panel specification, base and support layout, gate scope and packing requirement.
The approved fence line determines standard bays, shorter transitions and the total component count.
Height, panel width, frame tube, wire diameter and welded-mesh opening affect material use.
Base type, surface protection, corner parts and support-stay quantities affect the installed system and freight volume.
Opening width, post set, hinges, latch, closing behavior and spare hardware must be priced together.
Hot-dip galvanizing and any requested powder coating change the production route and minimum quantity.
Pallet design, carton count, order quantity and destination port shape the landed-cost comparison.
Before requesting a quote
Direct answers for importers, distributors, contractors and project buyers sourcing a galvanized no-drill temporary pool fence system.
We manufacture a rigid galvanized welded-mesh temporary pool fence system with weighted bases, clamps, support stays and matching gates for completed pool perimeters.
Yes. We quote from the buyer's pool layout or drawing, approved height, panel width, frame tube, welded-mesh infill, surface condition, weighted-base layout, gate quantity, finish, order quantity and destination requirements.
The galvanized welded-mesh panels use an approved layout of weighted bases, clamps and support stays on the finished surface, so the system does not require intentional drilling into the pool deck.
The modular panel bays can be repositioned or removed with their bases and hardware when the approved layout changes. The complete barrier should be inspected again after every move or reinstallation.
Possibly, when the completed deck or adjacent surface supports the approved barrier layout. The buyer must confirm access points, deck edges, clearances, climbable surroundings, gate behavior and the applicable local requirements before ordering.
No. Product configuration, installation and approval depend on the applicable state and local rules. Buyers should confirm requirements with the local authority or project professional before ordering.
Yes. We can quote matching pedestrian gates, posts, hinges and latch hardware. Self-closing or self-latching requirements must be stated in the approved specification.
Send the required height and total length, panel size, surface condition, weighted-base preference, gate quantity, finish, order quantity, packing needs, destination port and any available pool layout or drawing.
Yes. We separate panels, weighted bases, clamps, support stays, gates and small hardware by line item and can prepare pallet, carton and loading records for export receiving.
Request a quote
Send the pool layout or drawing, total length and height, panel size, surface condition, weighted-base preference, gate quantity, finish, order quantity, packing requirements and destination port. We will review the complete bill of materials and reply with a practical factory quotation.
