In our factory, the same visual idea can require a different frame, bar section or connection once the panel width, height, wind exposure and finish route are known. That is why we review the layout before treating a photo as a production specification.
This page is for design selection. For available materials, reference sections, finish routes and quotation inputs, use our custom flat bar fence systems page.
What Defines a Flat Bar Fence Design?
A flat bar fence uses solid rectangular bars as its main visual infill. The bars may run vertically or horizontally, interlace in a woven pattern, sit inside a perimeter frame, or combine directions for an architectural effect. Steel and aluminum can both be used, but section choice, support and finish must suit the project.

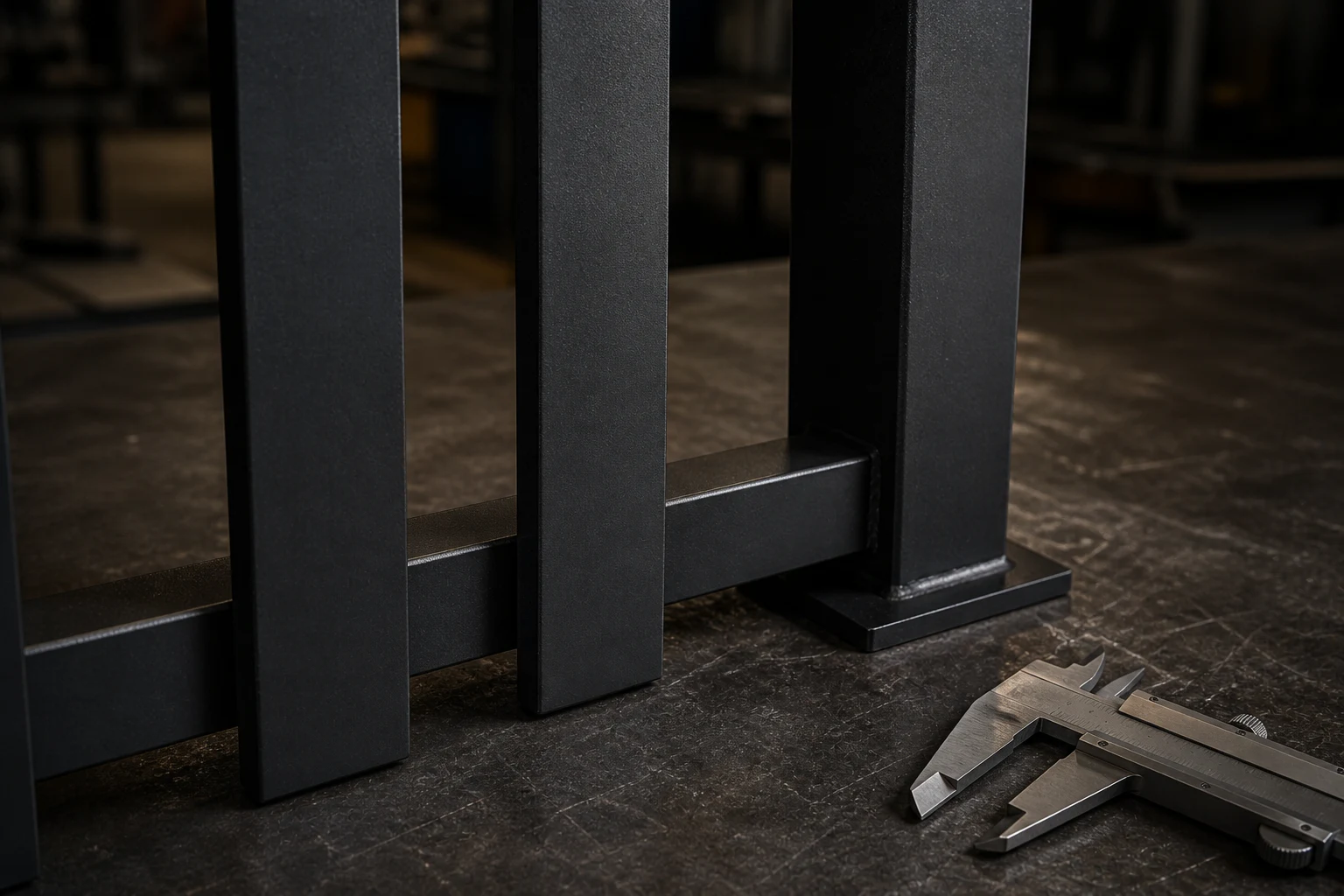

From a production view, the important design variables are flat bar width and thickness, clear spacing, orientation, panel span, frame and post size, weld or mechanical connections, coating access, drainage and installation method.
Flat Bar Fence Design Selection Criteria
Start with the job the fence must do, then choose the visual direction. A residential flat bar fence design may prioritize privacy and appearance, while a commercial boundary may place more weight on visibility, panel rigidity, gate coordination and coating durability.
- Privacy and sightlines: decide where screening is needed and from which viewing angles.
- Panel size and support: confirm the clear span, post spacing and whether intermediate support is acceptable.
- Material and finish: match steel or aluminum and the finish route to the exposure and desired appearance.
- Installation interfaces: coordinate posts, walls, base plates, corners, slopes and matching gates.
- Fabrication access: leave enough access for welding, drainage, surface preparation and coating coverage.
| Design layout | Privacy and visibility | Support and fabrication | Best-fit applications | Main limitation to check |
|---|---|---|---|---|
| Vertical | Open to semi-private; sightlines remain predictable. | Direct load path; frame and post spacing still need review. | Commercial boundaries, villas, courtyards and gates. | Bar spacing, climbability, ground clearance and gate alignment. |
| Horizontal | Can provide stronger screening with wide, close-set bars. | Long bars may need intermediate support or a stiffer frame. | Residential, landscape and contemporary façades. | Free span, deflection, drainage and unintended footholds. |
| Woven | Partial screening changes with angle and weave depth. | More forming, contact points and coating access checks. | Feature boundaries and architectural screens. | Repeatable spacing, tolerance, weld locations and finish coverage. |
| Framed or mixed | Flexible: open, angled, irregular or layered. | Perimeter frame controls handling and installation. | Custom panels, corners and coordinated gate systems. | Drawing clarity, weight, interfaces and pattern consistency. |
Four Common Flat Bar Fence Designs
Vertical Flat Bar Fence Design

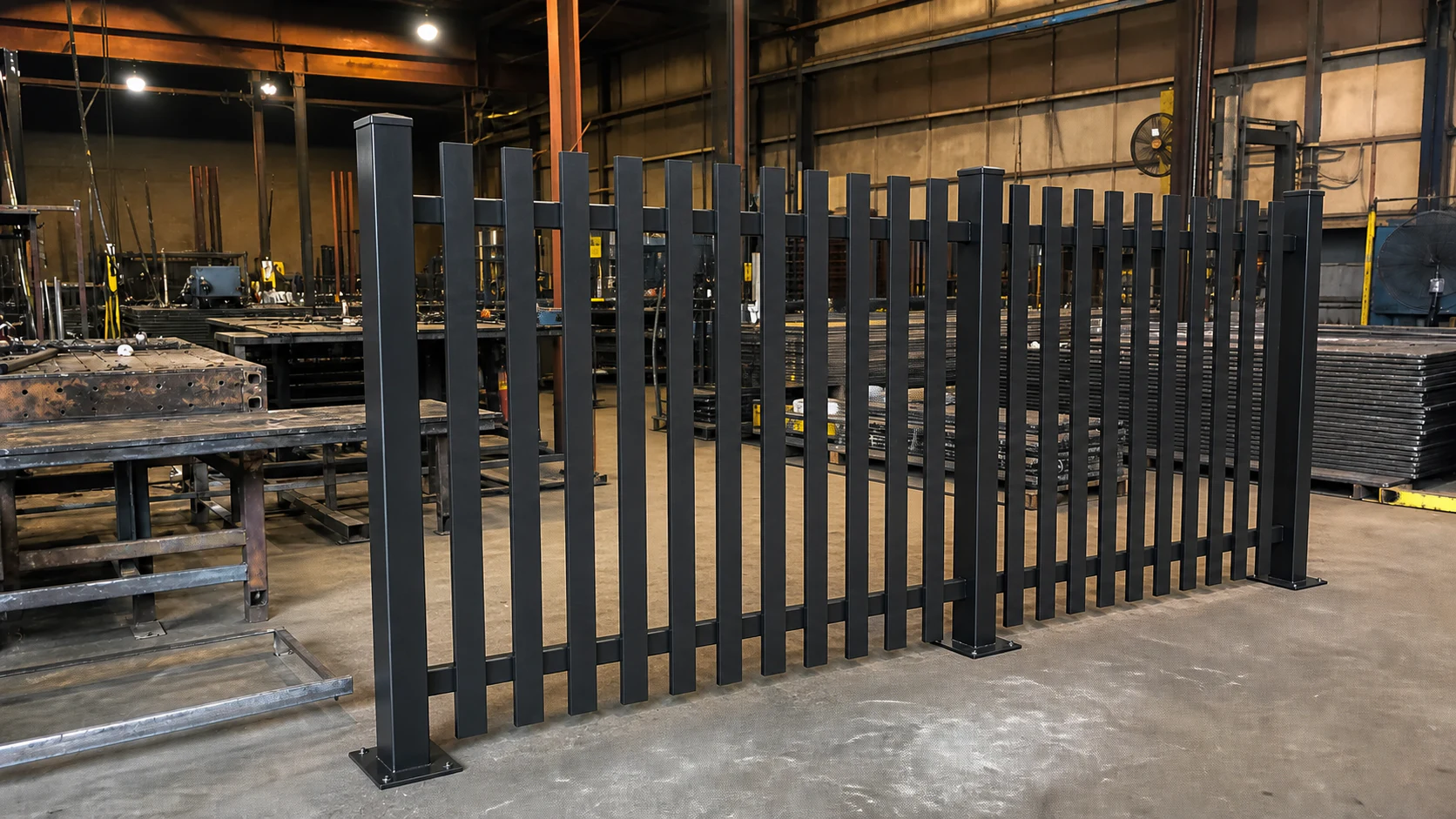

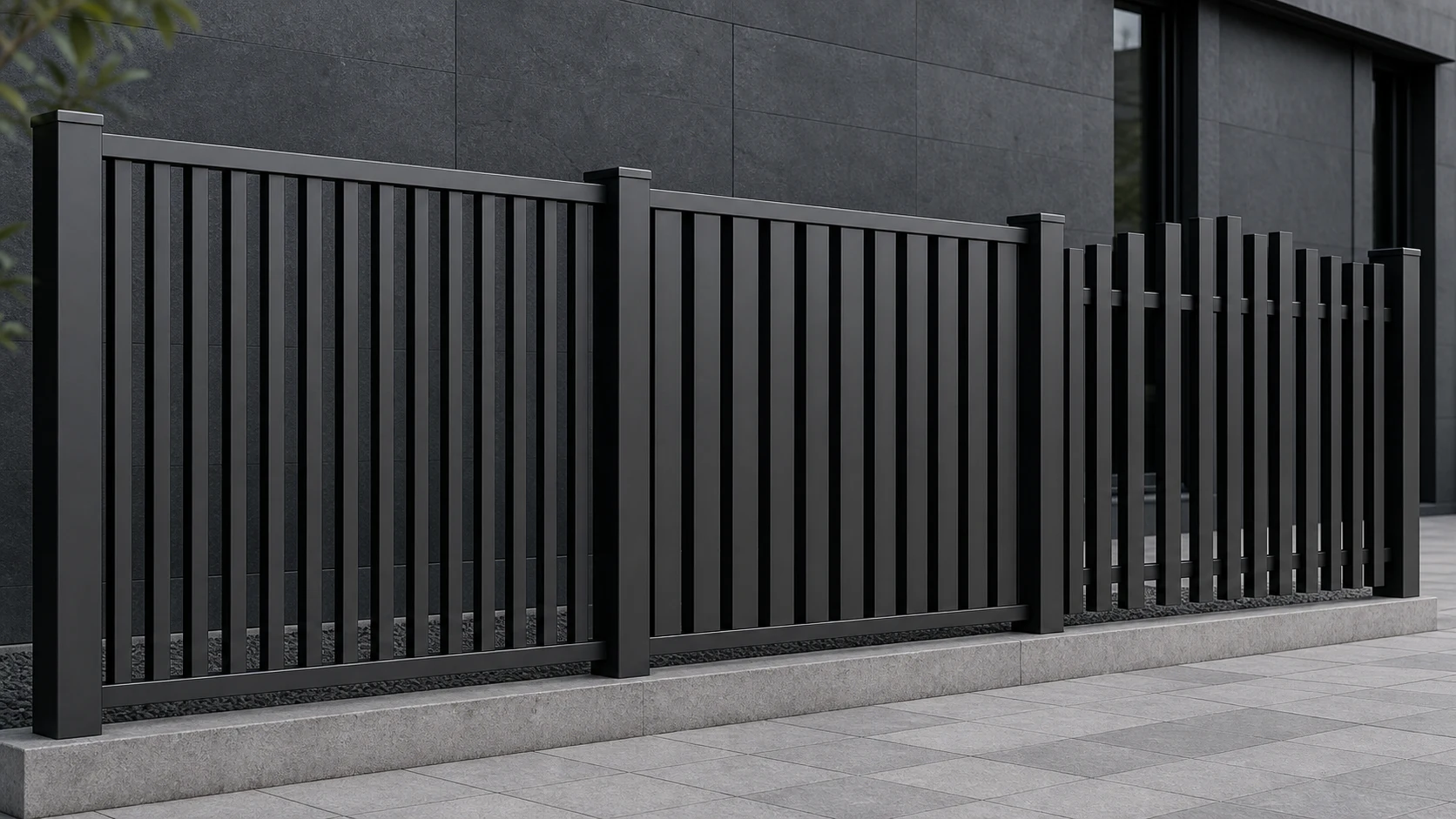

Vertical bars create an orderly elevation and work well where the fence and gate need a consistent rhythm. We ask buyers to define flat bar size, clear spacing, panel height, frame, post centers, bottom clearance and gate alignment. For sites with safety or anti-climb requirements, the local project professional should review the final spacing and geometry.
Horizontal Flat Bar Fence Design

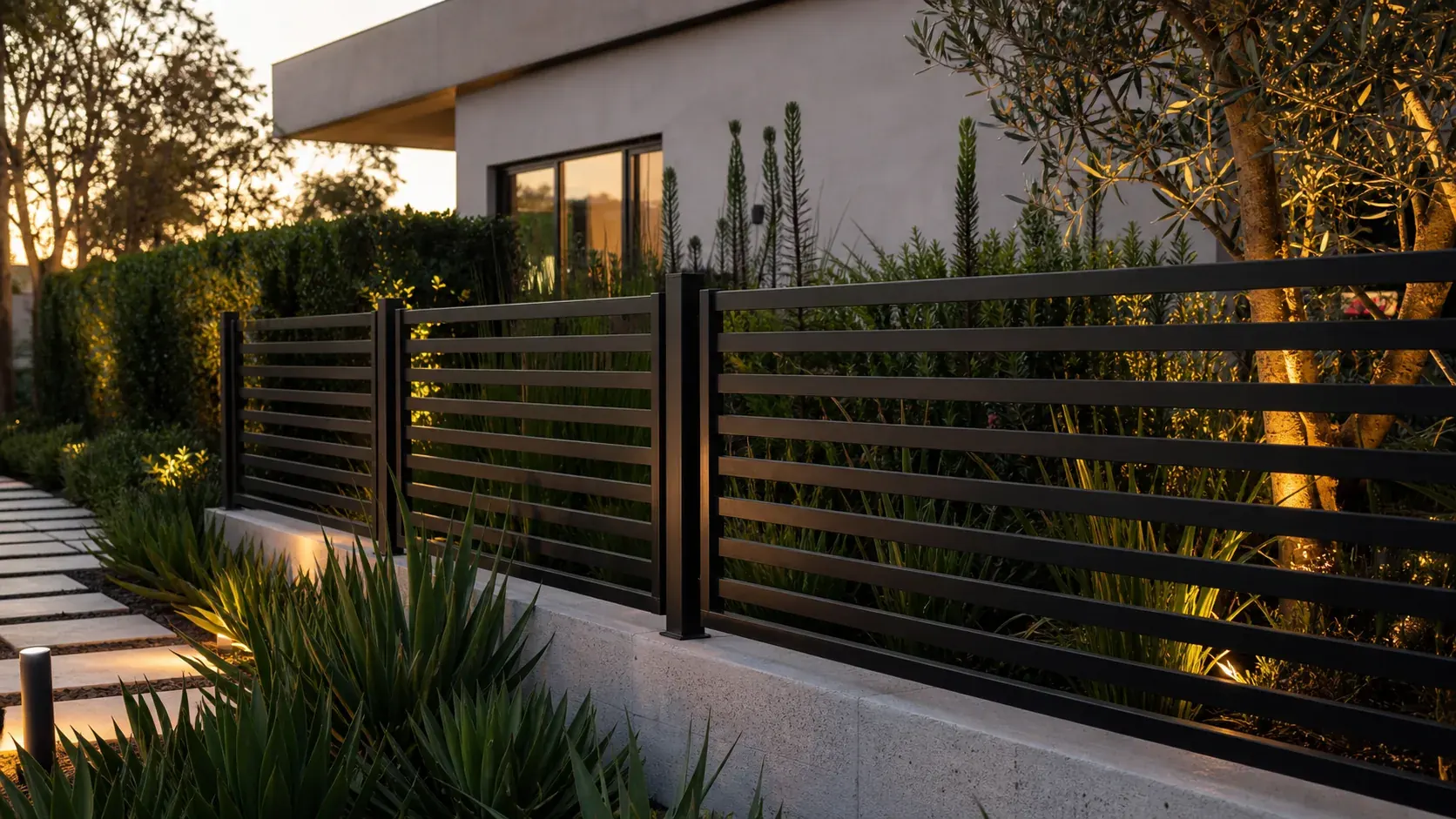

A horizontal flat bar fence creates a wider visual line and can increase screening when bars are wide and closely spaced. The design must also address free span, bar deflection, intermediate support, drainage and any foothold concern. A long horizontal panel should not be approved from appearance alone.
Steel Flat Bar Fence Weave Design

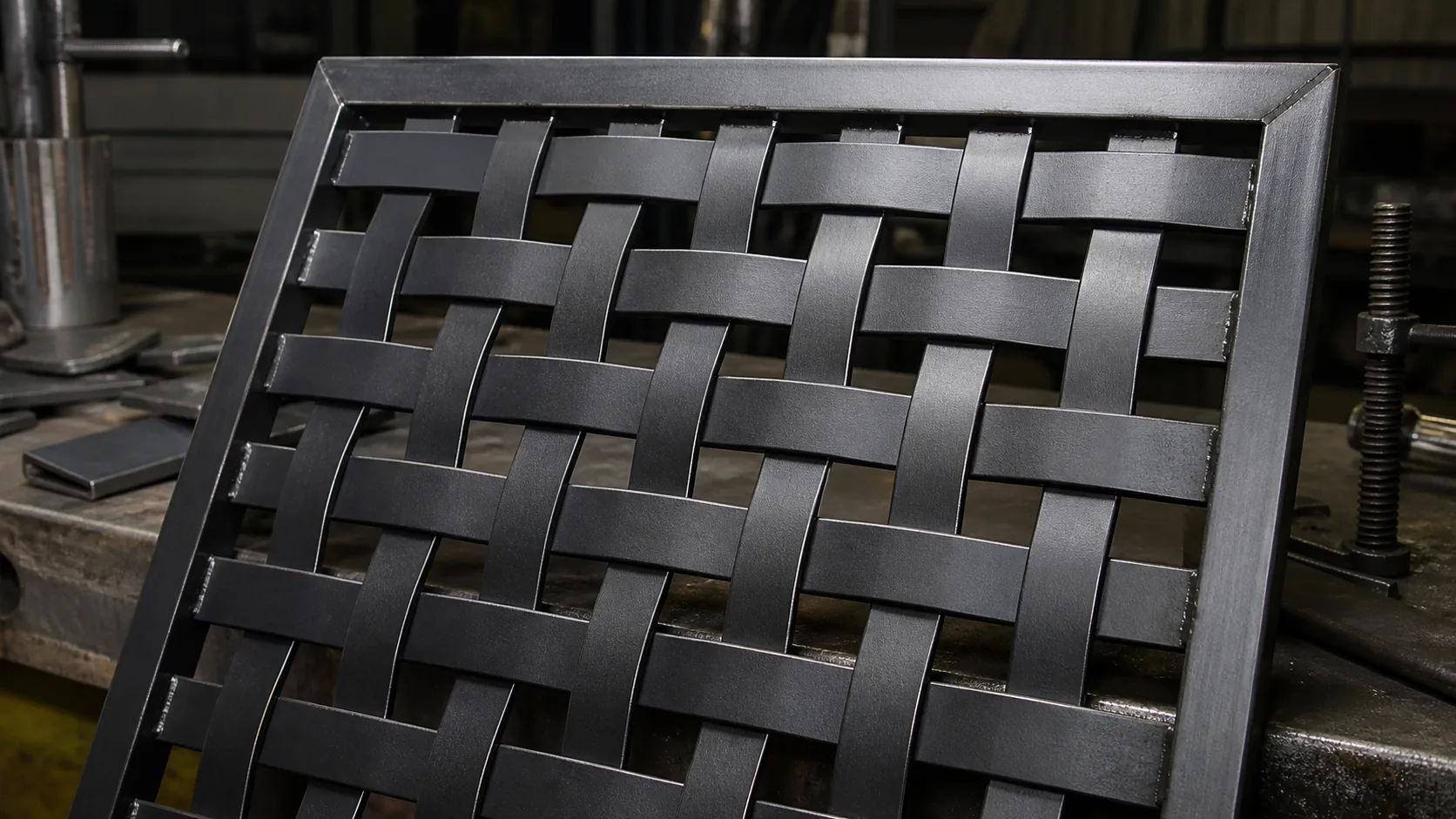

A steel flat bar fence weave interlaces bars to create depth and changing sightlines. Compared with straight layouts, our production review focuses more on bar flexibility, pattern repeat, contact points, welding access, tolerance and whether the chosen finish can cover tight interfaces.
Framed and Mixed-Direction Panels
Framed panels use a perimeter member to control the infill during fabrication, coating, packing and installation. Mixed-direction or angled bars can create a distinctive metal flat bar fence design, but every change in direction must be located by dimension rather than left to visual interpretation.
Woven Design Fabrication Checks
A steel flat bar fence weave is an interwoven panel rather than a simple straight-bar layout. The weave may run vertically, horizontally, diagonally or in a custom repeat. Buyers often choose it for architectural depth and partial screening.
From our factory perspective, the drawing should define the over-under sequence, repeat dimension, bar size, clear opening, perimeter frame, weld locations and acceptable tolerance. Tight contact areas also need a realistic surface-preparation and coating route.
We do not recommend scaling a woven pattern from a photograph. Small dimensional changes can alter the finished sightline, panel width and installation alignment.
Material and Finish Comparison
A generic flat bar fence design may be fabricated in steel or aluminum. The visual concept can remain similar, but the bar section, frame, connection method, weight and finish route are not automatically interchangeable.
We select a preliminary route from the drawing, exposure and appearance requirement, then confirm the actual material and process before quotation. We do not claim that one finish suits every climate or project.

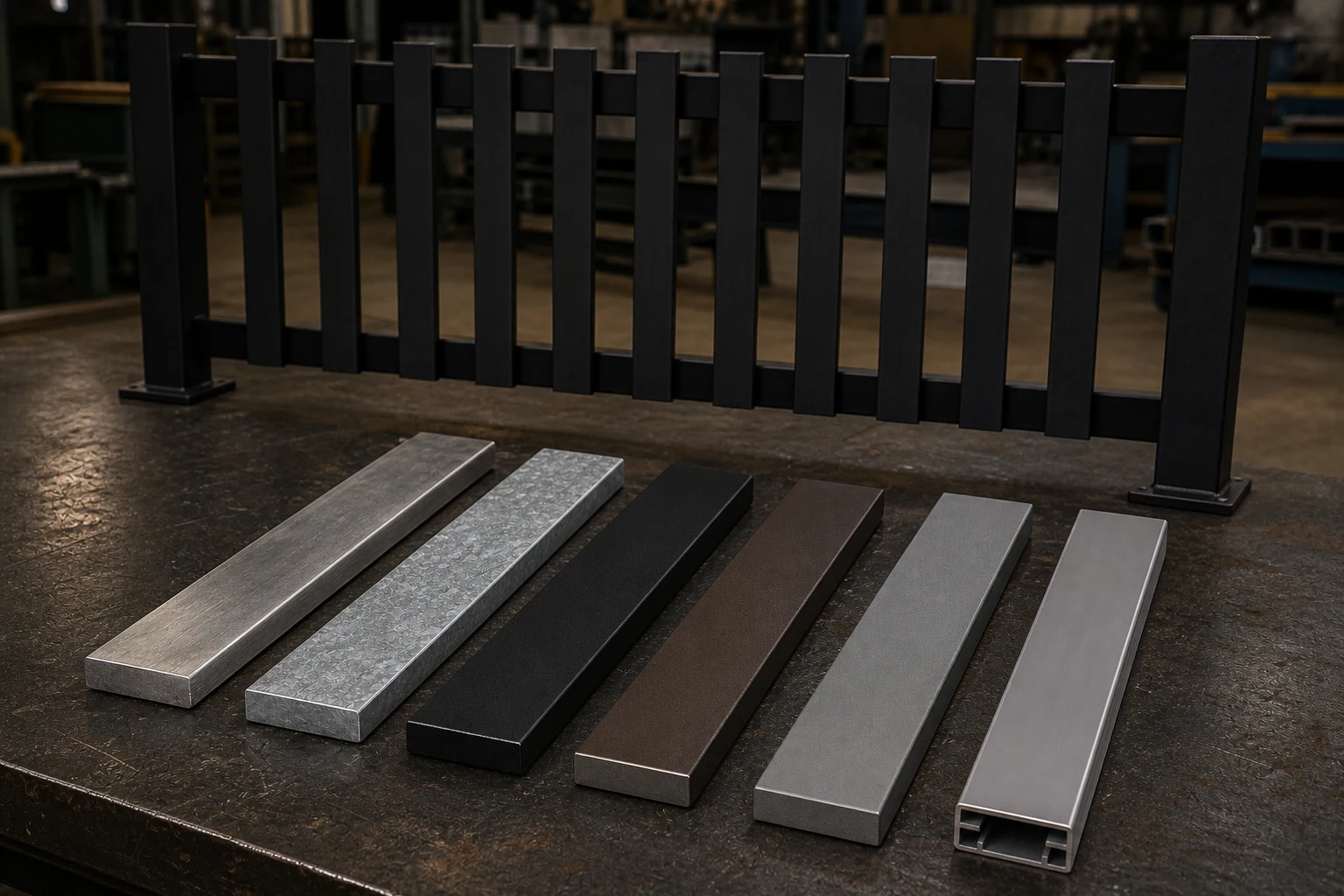

| Material or finish route | Design considerations | Confirm before quotation |
|---|---|---|
| Fabricated steel | Strong visual sections and welded frames; weight and corrosion protection must be planned. | Grade, section, weld details, drainage, surface preparation and exposure. |
| Hot-dip galvanized steel | Fabrication details must allow drainage and venting; the final appearance differs from a smooth painted surface. | Fabrication sequence, vent/drain provisions, zinc coverage expectations and tolerance. |
| Galvanized plus powder coated steel | Combines a zinc layer with a colored finish when the complete process is compatible. | Pre-treatment, coating system, color, gloss, repair method and packing protection. |
| Aluminum | Lower weight and different section behavior; welded or mechanically assembled details require their own review. | Alloy/temper where specified, profile, connection, finish and isolation from dissimilar metals. |
| Powder coated or anodized aluminum | Finish choice affects color range, texture, edge appearance and maintenance expectations. | Color or anodized reference, gloss/texture, exposure and acceptable variation. |
Choose the Layout for the Application
We commonly review flat bar designs for residential boundaries, commercial fronts, landscape fencing, apartment and villa projects, public spaces and architectural screens. The application does not determine one automatic layout; it establishes the privacy, sightline, access, durability and installation questions the drawing must answer.

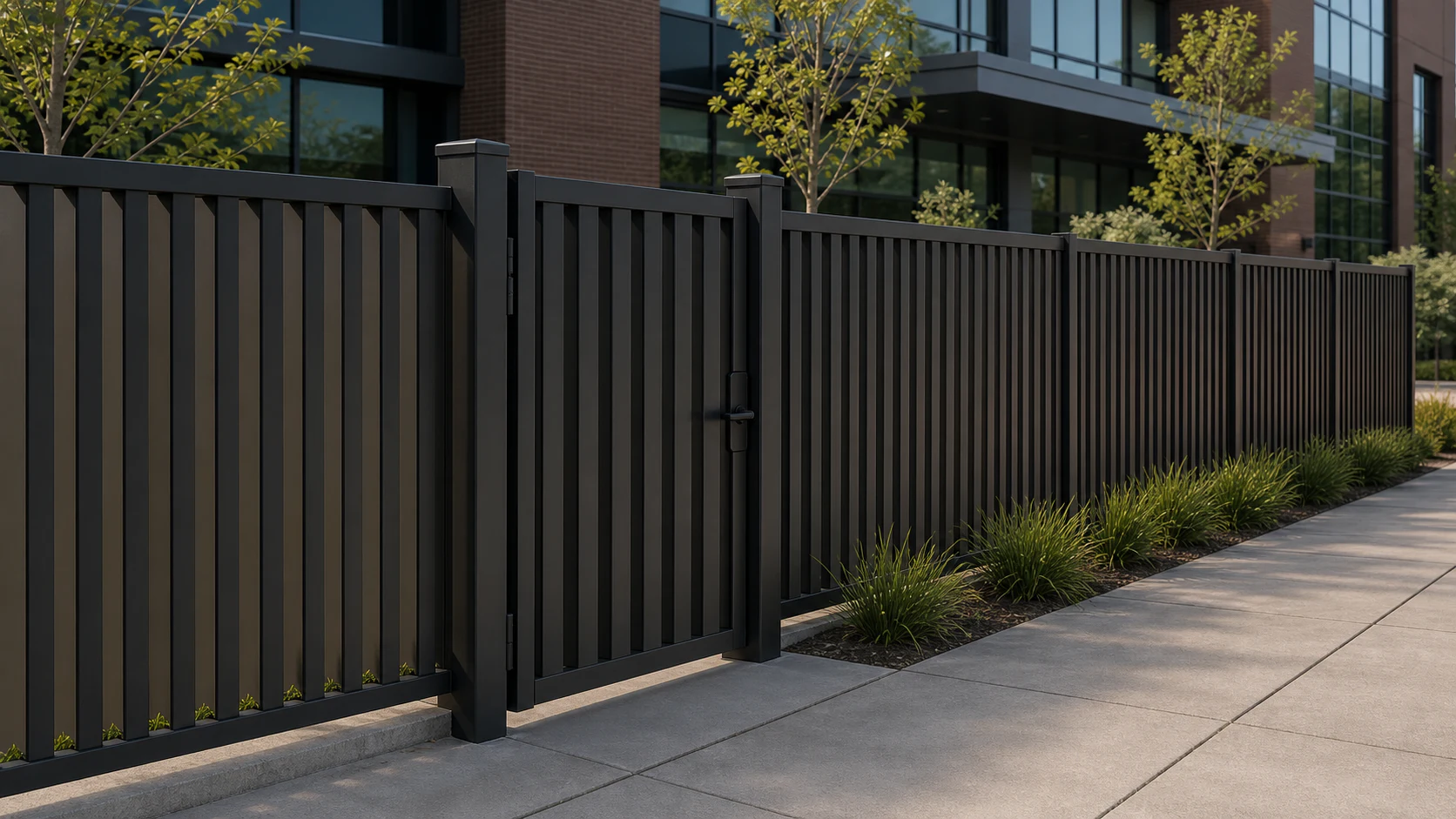

For example, a residential flat bar fence design may use horizontal or angled bars for screening, while a commercial boundary may use a vertical layout to retain visibility and simplify gate coordination. Local safety, pool, guard, anti-climb or structural requirements must be confirmed by the project team before fabrication.
How Spacing Changes Privacy and Visibility
Privacy is not controlled by spacing alone. It changes with flat bar width, clear opening, bar angle, viewing distance, viewing direction, panel height and whether the layout is straight, overlapped or woven.
- Record whether spacing is a clear opening or a center-to-center dimension.
- Check the fence from the approach, property and road-facing sightlines.
- Do not assume a narrow front view means full privacy from an angle.
- Coordinate bottom clearance, slopes and gate gaps with the main pattern.
- Confirm any local opening, climbability or pool-barrier rule separately.
Structural and Installation Constraints
A flat bar layout is not a structural specification by itself. Panel span, height, bar section, frame stiffness, post centers, base connection, wind exposure and site interfaces work together. Final structural suitability remains project-specific.
Horizontal bars deserve particular attention because a long free span can deflect or require intermediate support. Woven panels add forming and contact points. Irregular patterns can shift weight and create alignment problems across adjacent panels. Corners, raked ground and matching gates should be drawn, not left as site assumptions.
What a Fabrication Drawing Should Include
Use this checklist to translate design intent into requirements that a factory can review:
- Finished panel height and width, including any raked or corner panels
- Flat bar width, thickness and orientation
- Clear opening or center-to-center spacing, with the method stated
- Perimeter frame, intermediate support and post sections
- Base plates, embedded posts, wall brackets or other fixing details
- Woven sequence, angle or pattern repeat where applicable
- Gate leaves, hinges, latches and pattern alignment
- Material, surface treatment, color and finish reference
- Quantity by panel type, packing requirement and destination
Common Flat Bar Fence Design Mistakes
- Approving from one photo: the image does not define scale, spacing, section or the back side.
- Leaving spacing ambiguous: clear opening and center-to-center spacing produce different panels.
- Ignoring horizontal span: a clean elevation may still need support that changes the appearance.
- Specifying finish after detailing: tight gaps, sealed cavities and contact points can limit coating access.
- Designing the gate later: hinges, latches, frames and ground clearance can interrupt the pattern.
- Using one panel everywhere: corners, slopes, end conditions and wall interfaces often need separate types.
FAQ
Is a vertical or horizontal flat bar fence design better?
Neither direction is universally better. Vertical layouts usually simplify drainage and uninterrupted height, while horizontal layouts may increase screening but often need closer review of span and intermediate support.
What affects privacy in a flat bar fence?
Privacy depends on bar width, clear spacing, bar angle, viewing direction, panel height and whether the layout is straight, overlapped or woven.
When does a horizontal flat bar fence need intermediate support?
Support depends on bar section, free span, spacing, frame stiffness, wind exposure and connection details. The final arrangement should be checked from a dimensioned project drawing.
What should a flat bar fence fabrication drawing include?
Show panel height and width, flat bar width and thickness, clear spacing, frame and post sections, bar direction, fixing points, gates, finish, quantity and site-specific interfaces.
How does finish affect an outdoor flat bar fence design?
The material, corrosion exposure, welds, drainage and contact points affect the finish route. Steel designs may use galvanizing and powder coating, while aluminum designs commonly use powder coating or anodizing.
Can a reference photo be used for a factory quotation?
A reference photo can communicate the visual direction, but an accurate quotation still needs dimensioned requirements, material, finish, quantity, connections and destination information.
Conclusion
The best flat bar fence design is the one that keeps the intended sightline while remaining clear enough to fabricate, finish, transport and install. From our factory perspective, the decision should end with dimensions, not only a style reference. When your layout is ready, review our steel and aluminum flat bar fence systems and send the drawing for a production and quotation review.
