Controlled, visible perimeters
We recommend 358 mesh when your project needs restricted handholds, limited tool access and clear sightlines for surveillance around a controlled boundary.
358 system details
High-security welded mesh system

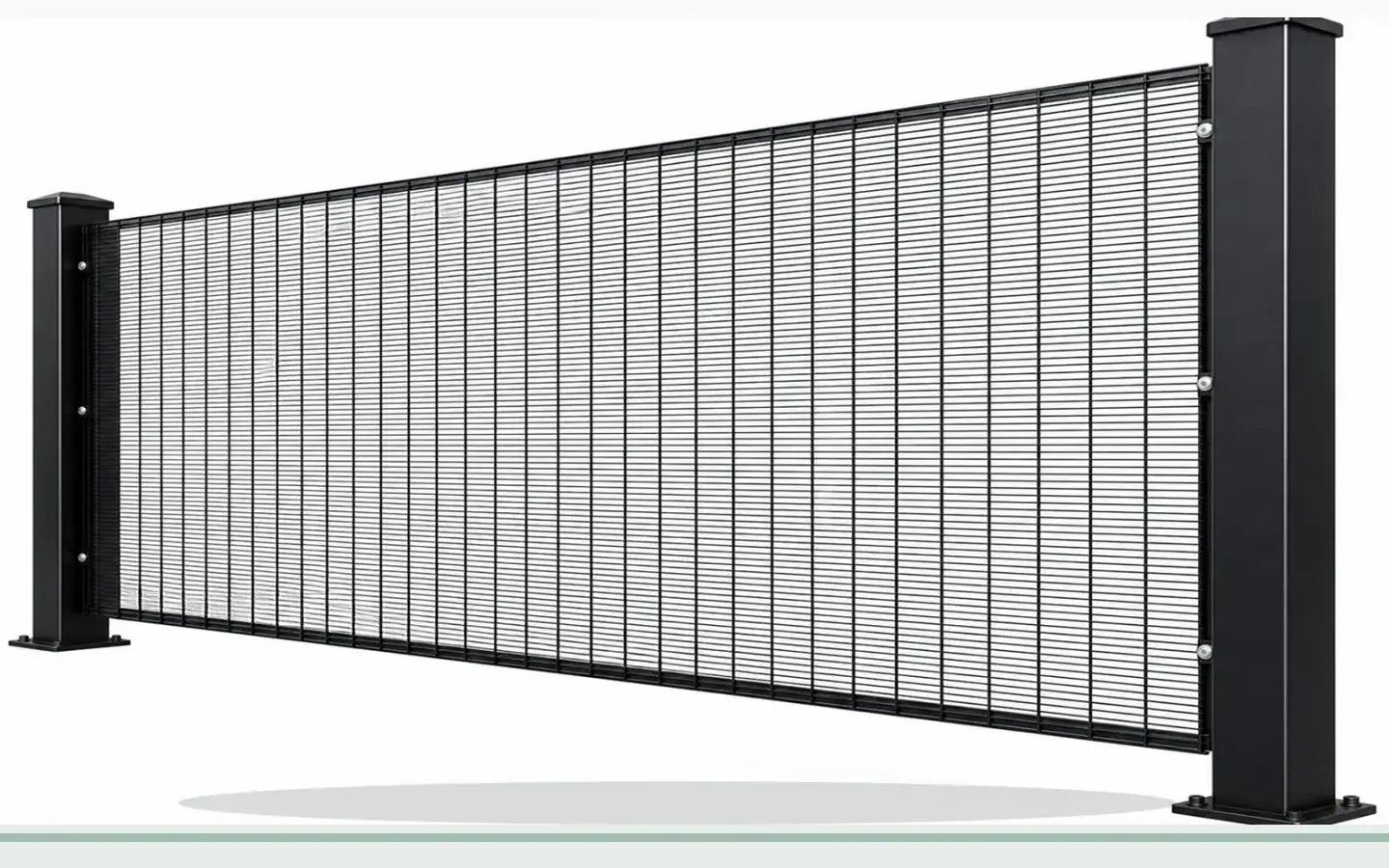

358 Anti-Climb Fence Panels, Posts & Gates
We manufacture permanent 358 anti-climb fence systems with the defining 3 × 0.5 in (76.2 × 12.7 mm) narrow mesh opening. A complete project combines panels, posts, secure fixings and matching gates; unlike portable temporary anti-climb panels, the final wire, height, coating and structural details follow the approved drawings and site conditions.
- Complete factory-direct system: work with a 358 anti climb fence manufacturer for panels, posts, clamp bars, anti-tamper fixings and matching gates.
- Project-specific: custom heights, post systems, coatings and security toppings.
- Drawing-led supply: panel centres, corners, gates and hardware checked together.
- Export ready: labelled bundles, separated hardware and loading documentation.
System type
358 Anti Climb Fence System
Supply scope
Panels, Posts, Fittings and Gates
Include the total fence length and destination port for a more useful first quotation.

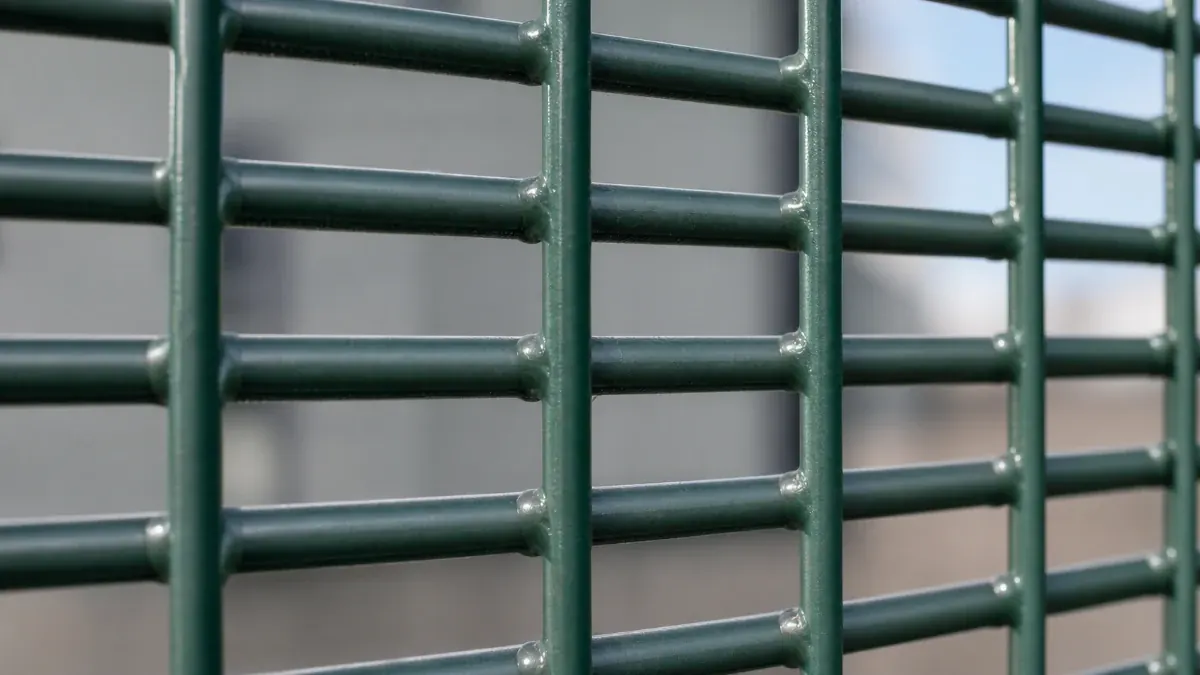

Mesh opening76.2 × 12.7 mm
Wire diameter4.0 / 4.5 mm
Panel height1.8–3.0 m+
Panel width2.0 / 2.2 / 2.5 m
FinishGalvanized + coated
System scopePanel + post + gate
Choose the right system
Is 358 the Right Anti-Climb Fence Panel for Your Project?
“Anti-climb panel” can describe several different products. Start with the installation task, security level and service life before comparing price.
| Fence system | Best-fit task | Installation and structure | What to check next |
|---|---|---|---|
| 358 anti-climb fence | Permanent high-security perimeter with narrow mesh and clear surveillance sightlines. | Project-matched panels, fixed posts, secure fittings, gates and approved foundations. | Confirm height, fence line, post/foundation assumptions, coating, gates and required evidence. |
| Temporary fence systems | Construction, event or short-term site control where the fence must be relocated. | Portable panels with feet, couplers and bracing rather than a permanent post foundation. | Confirm panel format, stability plan, ground conditions, duration and local site rules. |
| 3D wire mesh fence | General commercial, residential or industrial perimeter where V-bend rigidity and value matter. | Welded panels with formed bends, posts, clips or brackets and matching gates. | Compare mesh, wire, V-bends, post spacing, finish and the required security level. |
| Chain link fence | Flexible perimeter coverage, sports, utility or large-area projects with different visibility and budget needs. | Woven mesh fixed to line, terminal and corner posts with rails, wire and fittings. | Compare mesh size, wire gauge, coating, framework, toppings and installation conditions. |
Intent boundary: this page covers permanent 358 welded-mesh systems. For a relocatable panel on feet, review the temporary fence range instead of treating the two systems as interchangeable.
Before you specify the system
When a 358 Fence Is—and Is Not—the Right Fit
We use the product name as a starting point, then help you confirm the complete perimeter design against your security objective, site conditions and approved project requirements.
Height, wind, ground and access
We do not select the system by panel height alone. We confirm the post section, foundations, fixing rows, corners, slopes, gates and any approved security topping together.
Not a universal security specification
We review local rules, risk assessments and engineering requirements before recommending a configuration, and we do not present one generic setup as suitable for every site.
Verify before ordering:
Factory capability
Production, QC and packing process
Specification and inspection guide
Choose the security level
Select a 358 Fence Configuration for the Project
We configure each 358 anti-climb mesh fencing order around its height, fixing method, security topping and access requirements instead of treating every project as the same panel.
Most requested
Standard perimeter

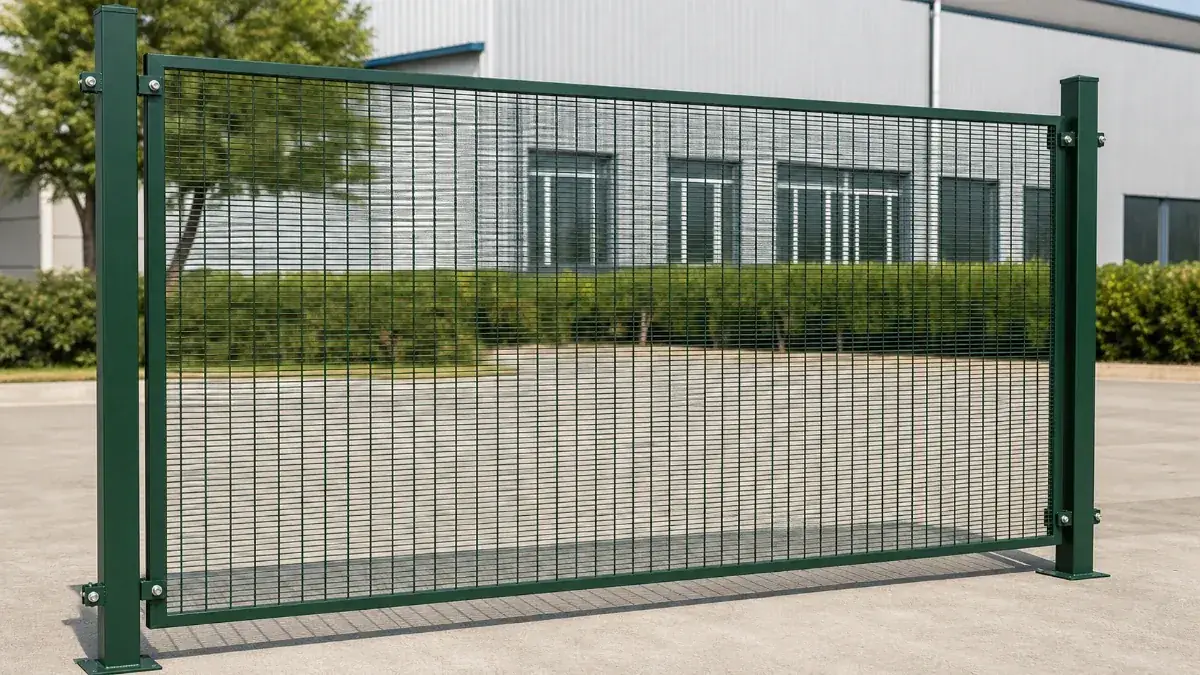

Standard 358 Panel System
We supply this configuration for data centers, utilities, logistics yards and other controlled perimeter projects.
- 1.8–3.0 m panel heights
- Square or rectangular posts
- Clamp bar or bracket fixing
Enhanced perimeter

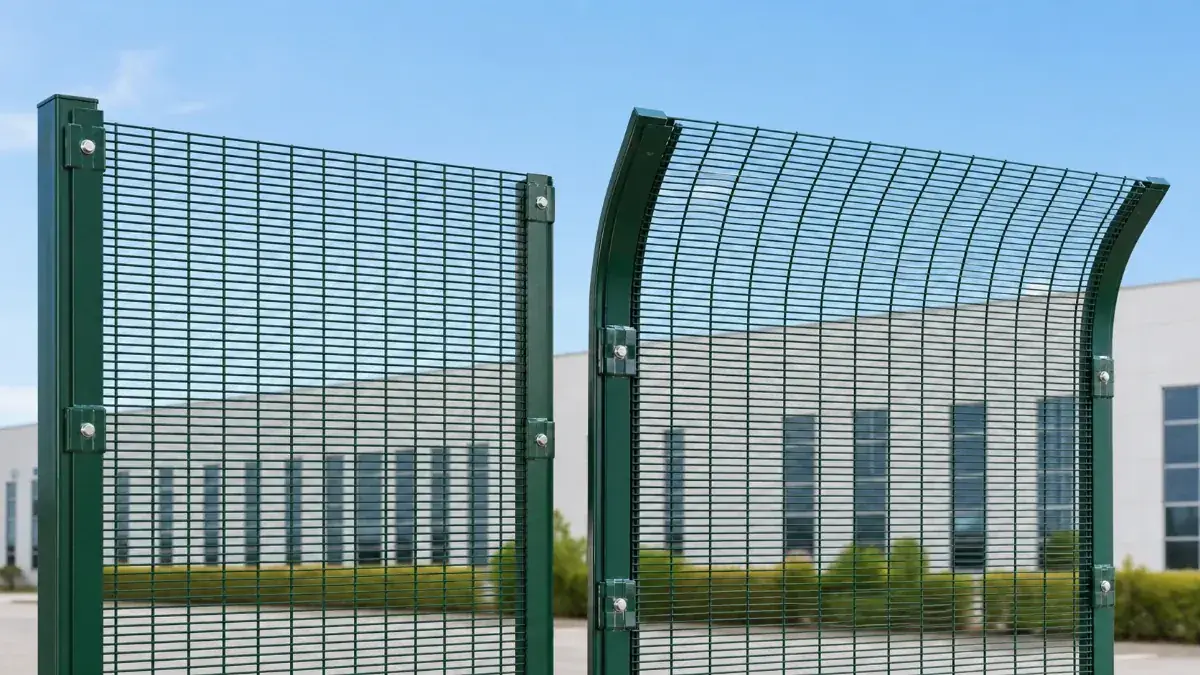

Extended or Cranked Top System
We manufacture this configuration for sites requiring added height or support for approved barbed or razor wire topping.
- Straight or crank extensions
- Project-specific topping supports
- Reinforced posts and fixing rows
Controlled access

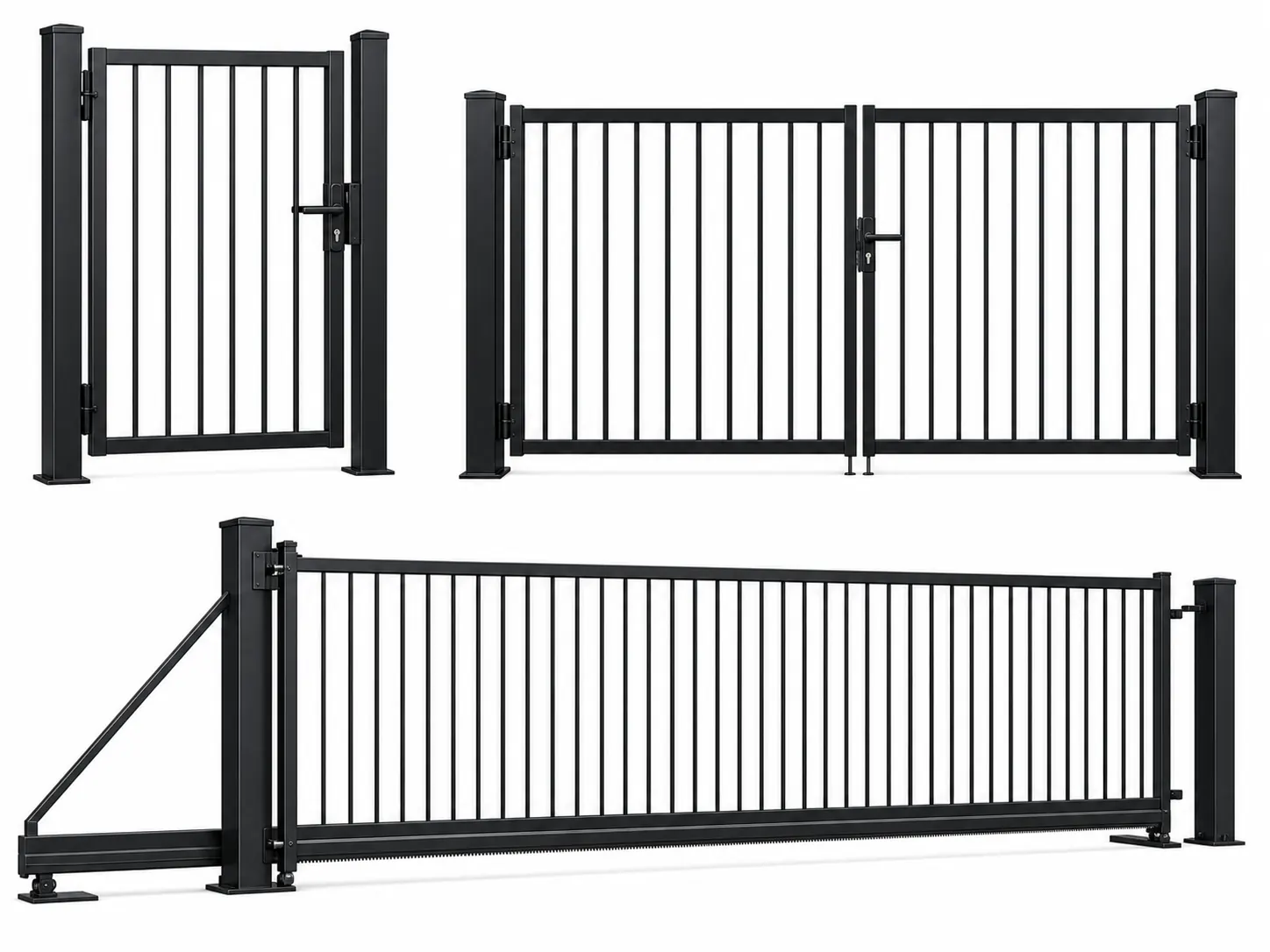

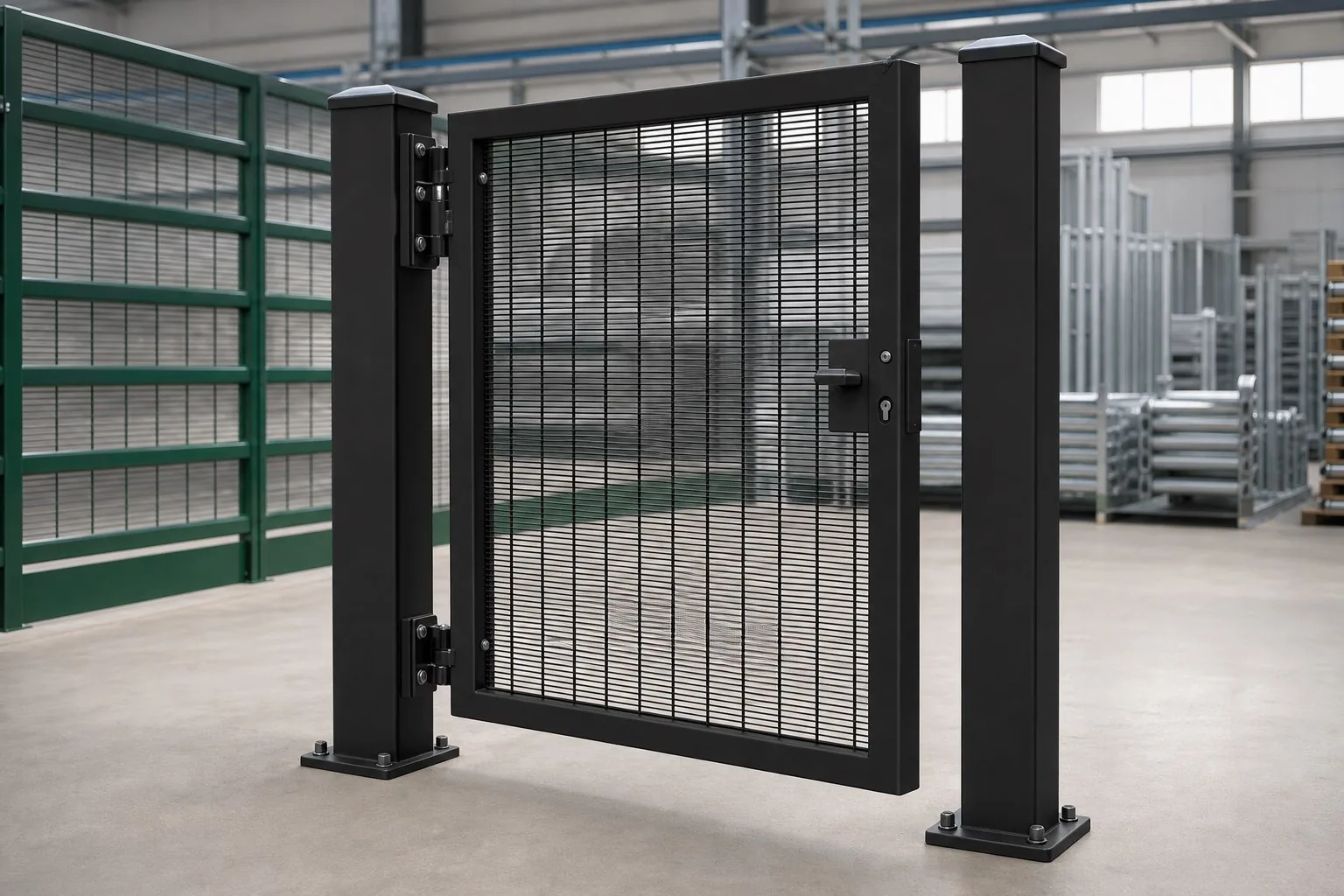

358 Pedestrian and Vehicle Gates
We manufacture matching mesh gates to suit the fence height, post system and access opening.
- Single- and double-leaf options
- Hinges, drop bolts and lock preparation
- Matching finish and infill mesh
Technical reference
358 Anti-Climb Fence Specifications
We use these common specifications as a starting point, then confirm the final panel, post and fixing details against your approved project drawings and site conditions.
| Specification | Common options | Quotation note |
|---|---|---|
| Mesh opening | 76.2 × 12.7 mm 3 × 0.5 in |
We manufacture the defining aperture of standard 358 security mesh. |
| Wire diameter | 4.0 mm, 4.5 mm project-specific options |
We confirm it together with the panel height and required rigidity. |
| Panel height | 1.8, 2.0, 2.4, 3.0 m stacked systems available |
We coordinate the post and fixing design for taller systems. |
| Panel width | 2.0, 2.2, 2.5 m custom widths |
We match panel width to the post centres and fence-line drawings. |
| Post system | Square, rectangular, I-post base plate or embedded |
We select the post section around height, wind, ground and foundation conditions. |
| Fixing system | Clamp bar, clips, brackets anti-tamper bolts |
We list the fixing quantity and spacing against each panel height. |
| Surface finish | Hot-dip galvanized galvanized + powder coating PVC coated |
Tell us the environment, colour and expected service condition. |
| Security topping | Straight or crank extension barbed / razor wire support |
We supply it to the approved perimeter design and applicable local project rules. |
System quotation
A Secure Perimeter Is More Than a Mesh Panel
For each 358 anti-climb fence project, we separate standard line sections, corners, gates, security topping and spare hardware in our quotation so you can review the complete system before we begin production.
01 Dense mesh panel
02 Security post
03 Fixing system

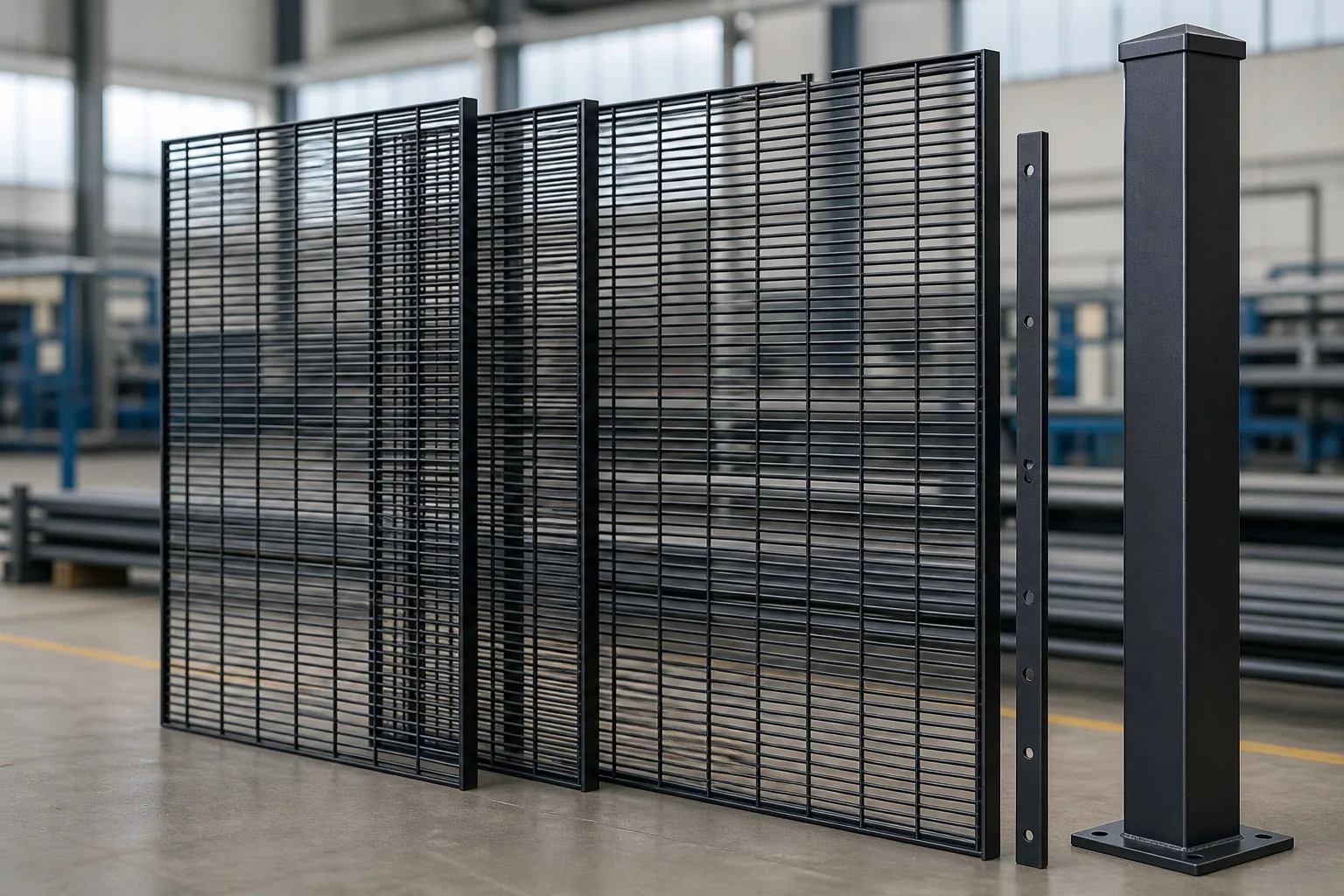

Fence panels
We coordinate standard, reinforced or stacked panels with the required post centres.

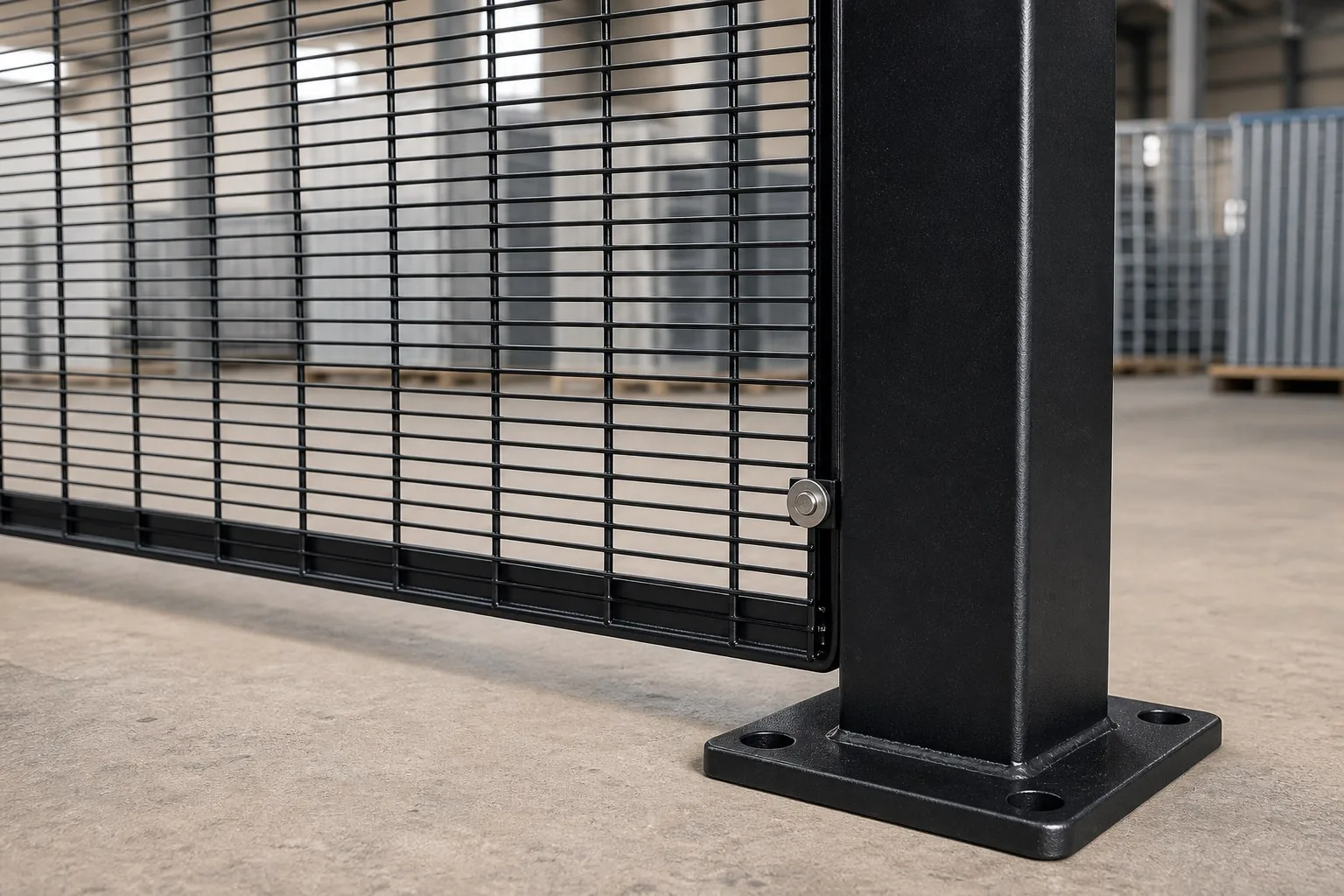

Line and corner posts
We manufacture embedded or base-plated posts with the required caps, corner details and end conditions.

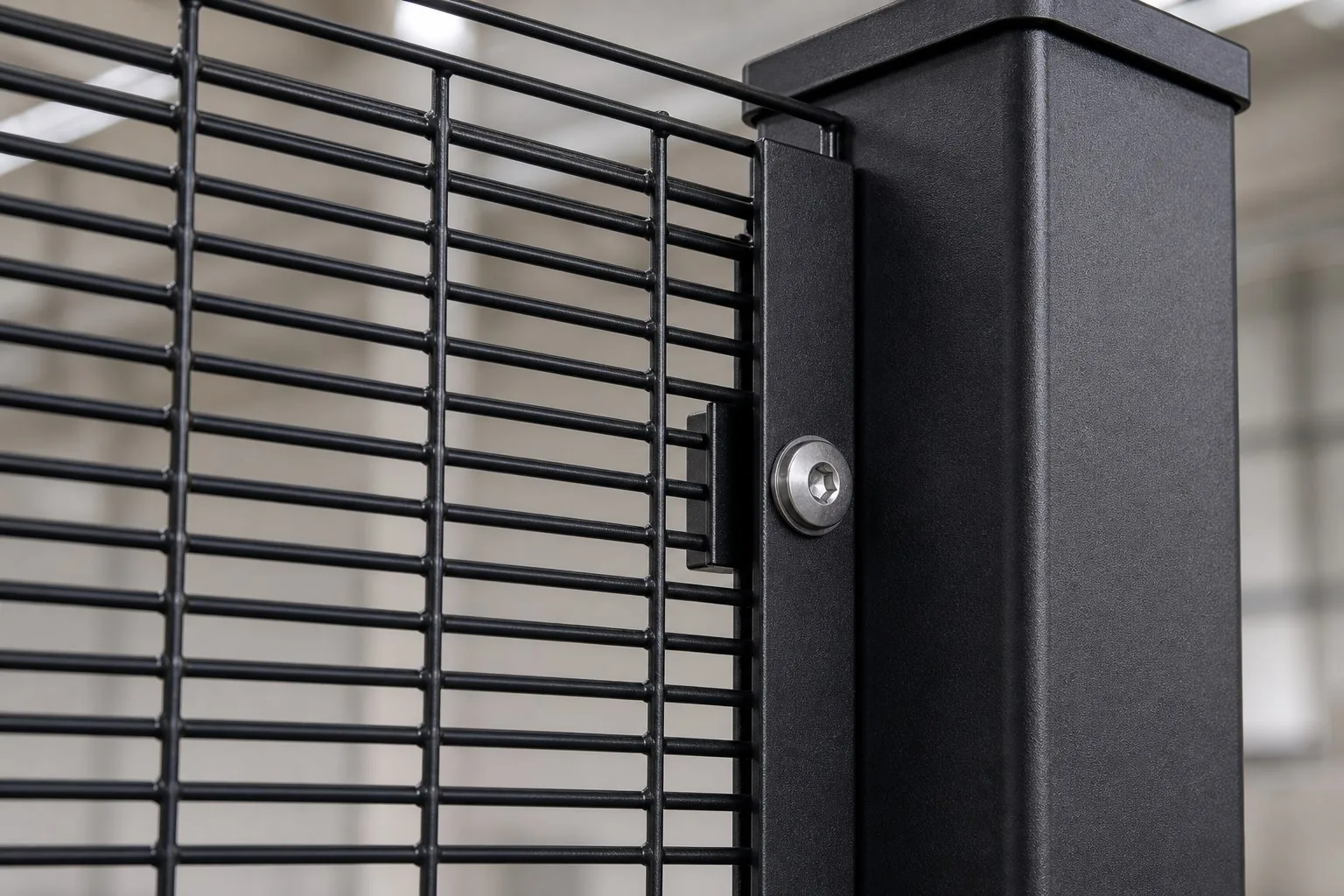

Clamp bars and clips
We select continuous bars or bracket systems for the required security level.
Anti-tamper fixings
We pack and label bolts, nuts and washers against the fixing schedule.
Security topping
We prepare straight or cranked extensions for the approved topping arrangement.
Matching gates
We coordinate pedestrian and vehicle access with the mesh, finish and fence height.
Surface protection
Choose the Finish Around the Project Environment
We do not specify a coating by colour alone. Tell us the exposure, target service condition and project standard so we can quote the correct finish.
01

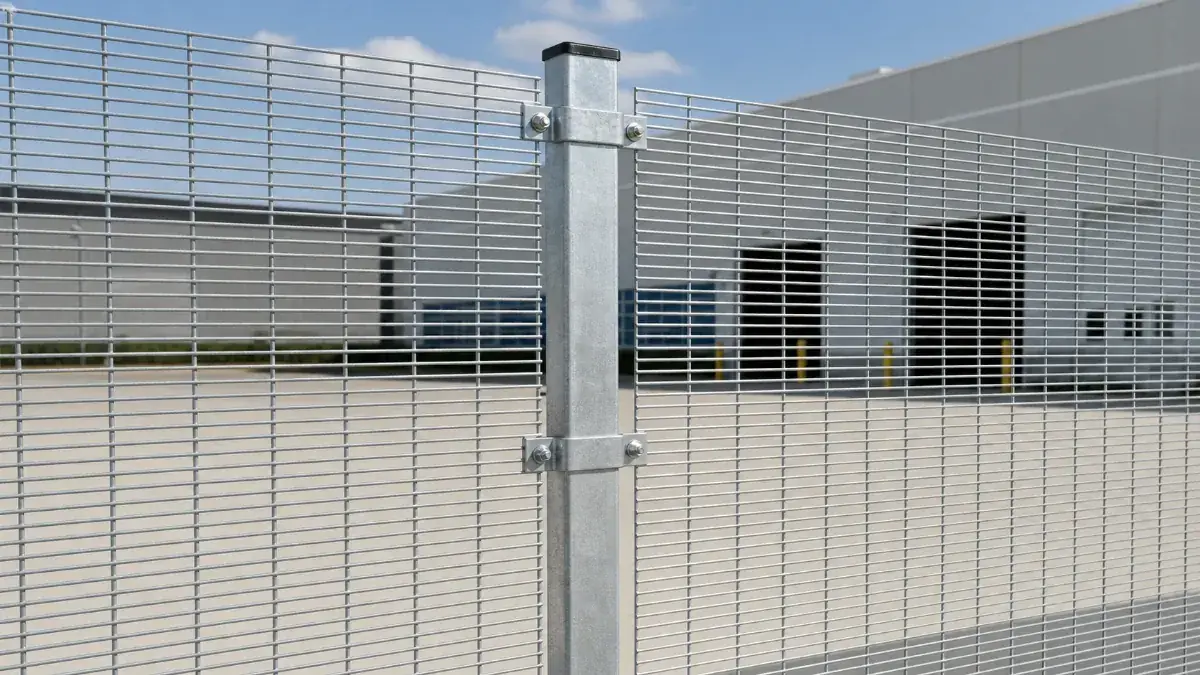

Galvanized
We offer this practical corrosion-resistant finish for projects that do not require a coloured final surface.
02

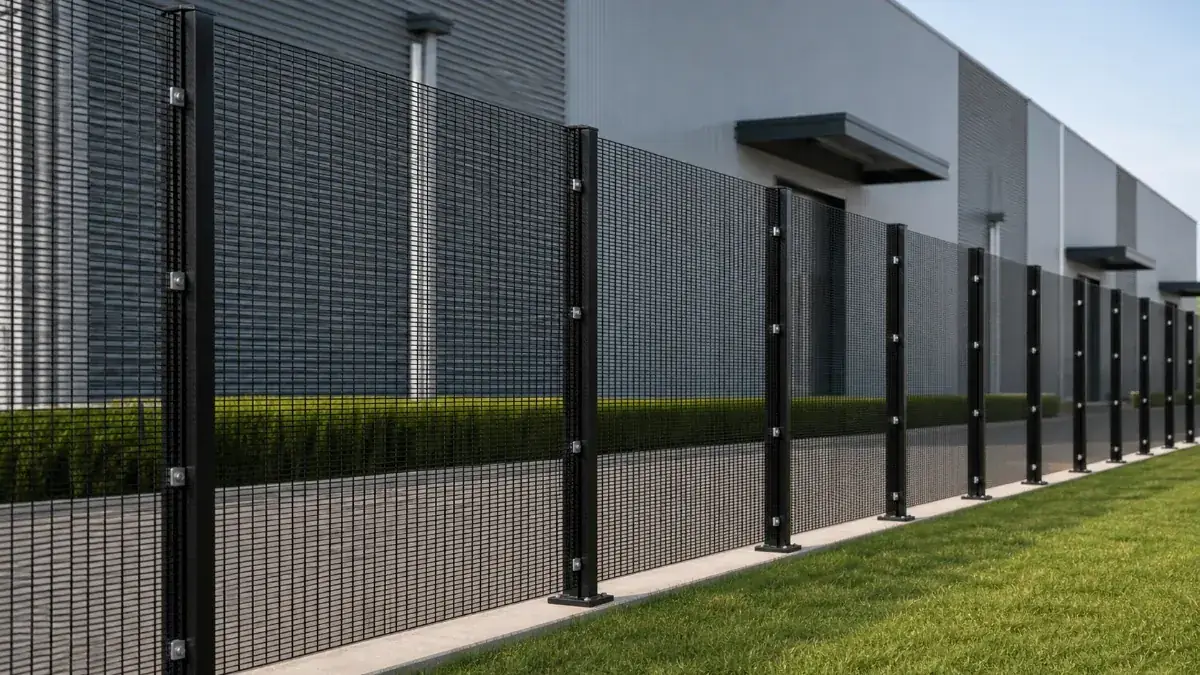

Galvanized + Powder Coated
We apply this layered system for colour, appearance and added surface protection in outdoor environments.
03

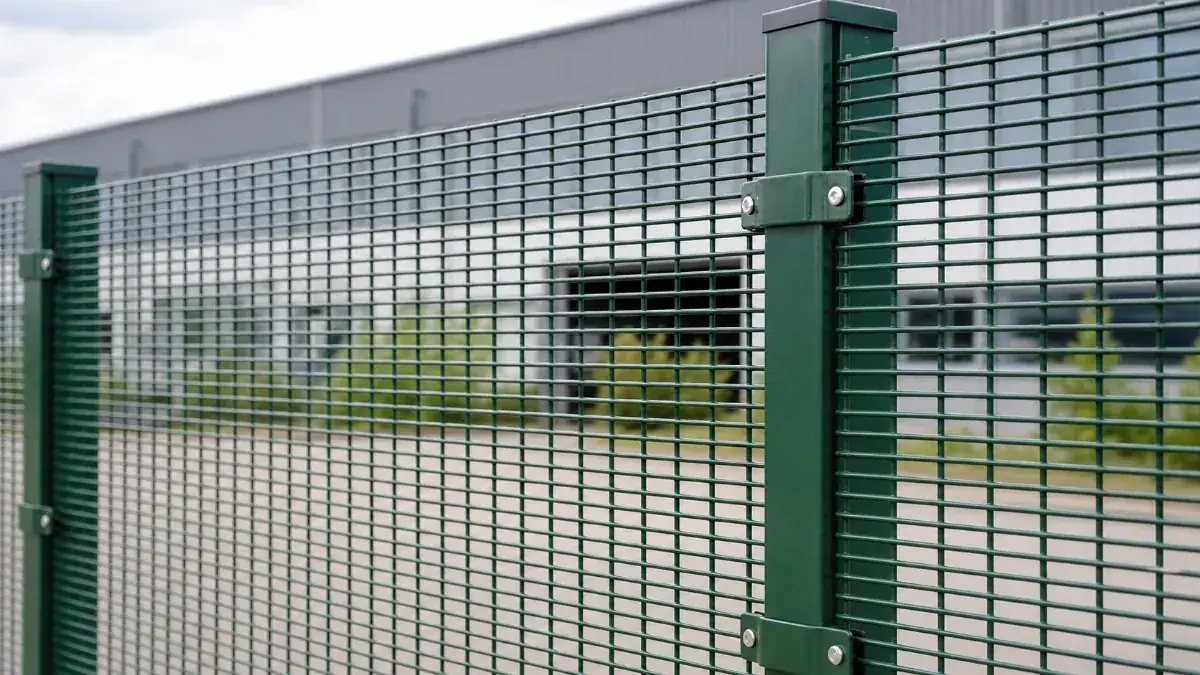

PVC Coated
We can supply this finish when your project specification calls for a thicker polymer-coated surface.
Production and inspection
Check the system—not only the finished colour.
Production control

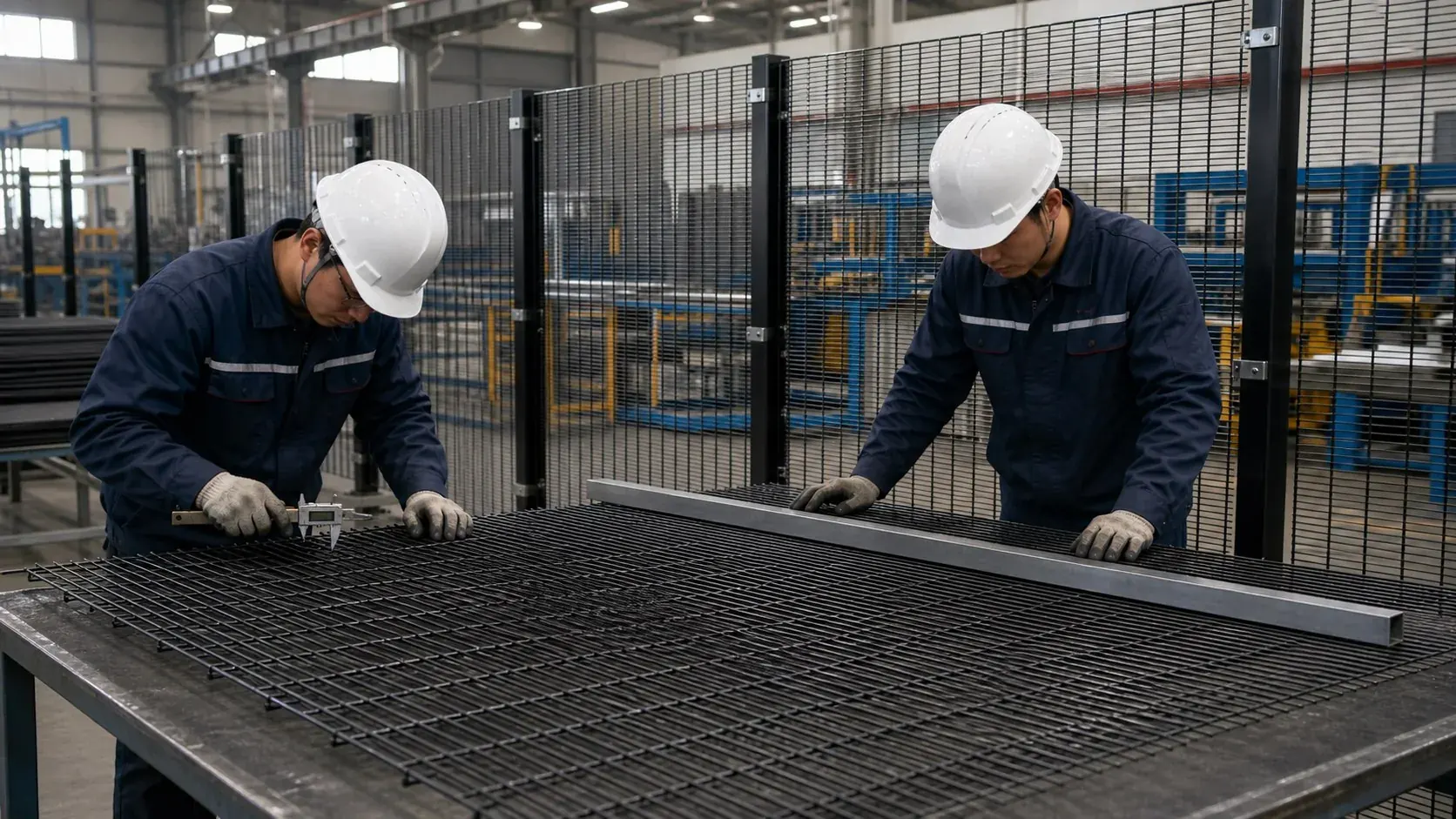

Six Checks Before the Fence Is Packed
Because dense mesh makes uneven welding, distortion and coating gaps easier to notice, we inspect the parts that directly affect installation and finished appearance.
- 01Wire and aperture check
We confirm the wire diameter and mesh opening against your order specification.
- 02Weld continuity
We review weld intersections and remove sharp projections or damaged edges.
- 03Panel flatness
We check finished panels for bowing before coating and bundling.
- 04Post and fixing fit
We sample posts, clamp bars, brackets and bolts as one installation system.
- 05Coating coverage
We inspect intersections, edges and fixing zones after surface treatment.
- 06Quantity and packing
We match bundle labels and hardware packages to the packing list.
Evidence before production
Build the 358 Fence Order Around Verifiable Project Evidence
For B2B export projects, agree what must be checked and recorded before production starts. The required evidence should match the drawing, order specification and destination-market requirement.
| Evidence item | What it should confirm | When to agree it |
|---|---|---|
| Approved system drawing | Panel centres, fence height, post sections, fixing rows, corners, slopes, gates and topping interfaces. | Before production approval. |
| Product and assembly photos | Panel appearance, mesh opening, posts, clamp bars, fittings and gate coordination for the ordered configuration. | Agree the required views before or during production. |
| Dimension inspection record | Specified wire, aperture, panel dimensions, post dimensions and selected assembly checks. | Define the inspection points in the order documents. |
| Surface-finish evidence | Agreed zinc/coating route, colour reference and any project-specific thickness or test requirement. | Before coating and final inspection planning. |
| Packing and loading record | Bundle labels, protected contact points, separated hardware, packing list and loading photos when requested. | Before shipment; state any buyer format requirement early. |
| Certificates or test documents | The exact document, issuing party, applicable standard, validity and product scope—not a generic certification claim. | Name and verify the requirement before order confirmation. |
Evidence boundary: this page does not imply compliance with a named standard or certificate. If a tender requires one, send the exact clause so availability and product scope can be checked before quotation.
Typical applications
Clear Visibility for Controlled Perimeters
We recommend 358 mesh where your perimeter needs physical delay, clear sightlines and controlled access without using a solid wall.
Critical infrastructure

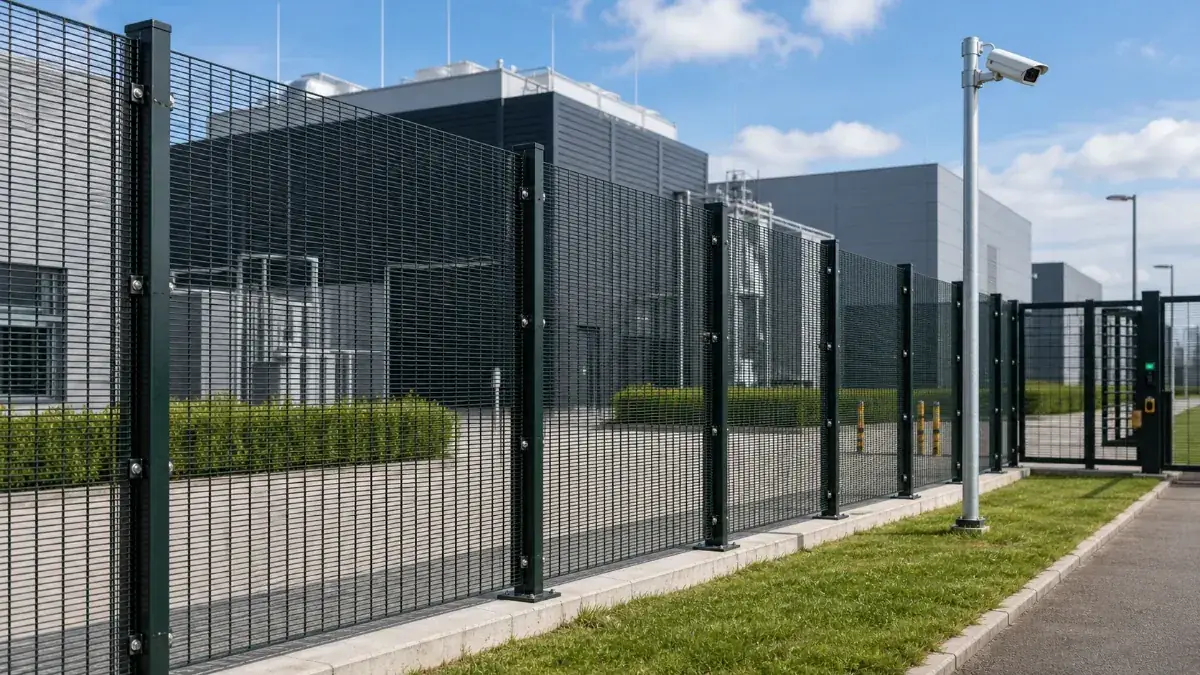

Data Centers and Utilities
We supply visible security boundaries for substations, equipment compounds and controlled technical sites.
High security

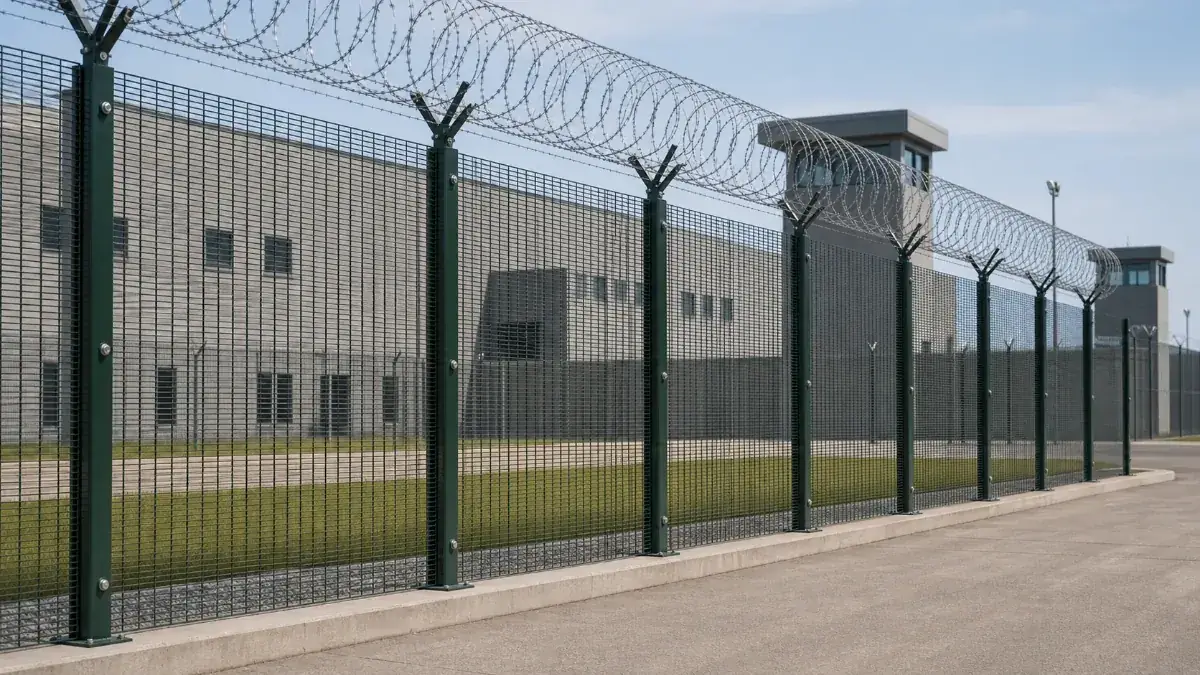

Correctional and Government Sites
We manufacture dense 358 mesh systems for restricted perimeter zones when the complete fence, topping, gate and foundation design is approved for the project.
Commercial security

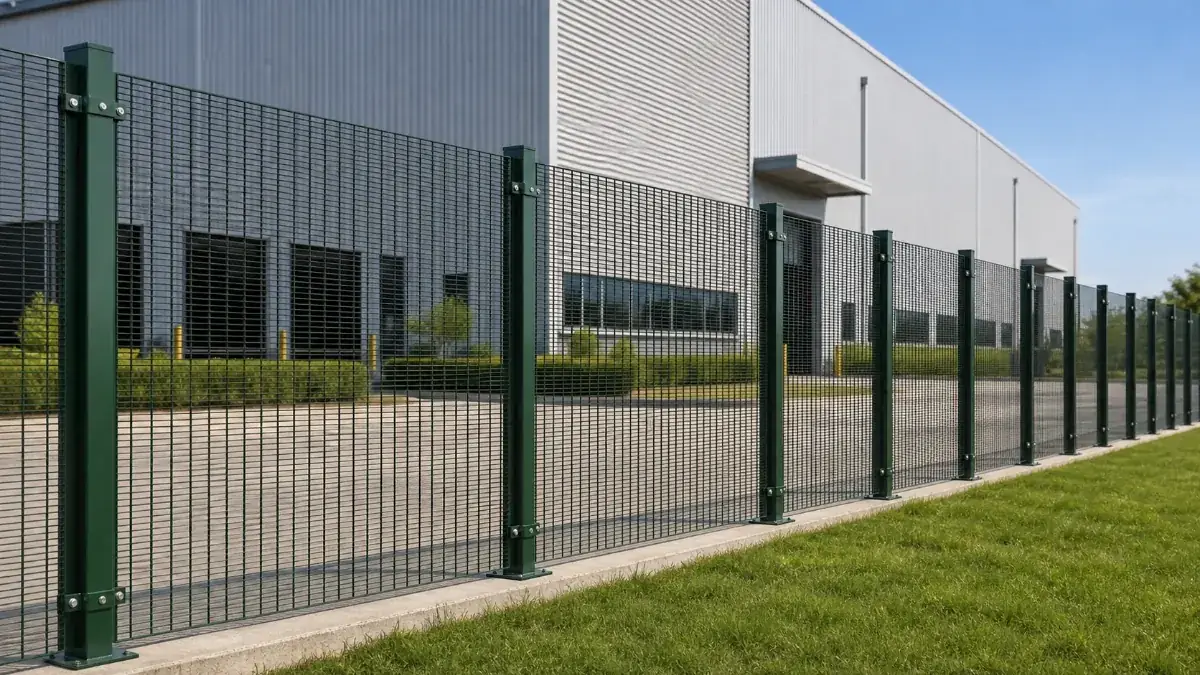

Warehouses and Logistics Yards
We supply perimeter systems for storage, loading and restricted operational areas.
Public assets

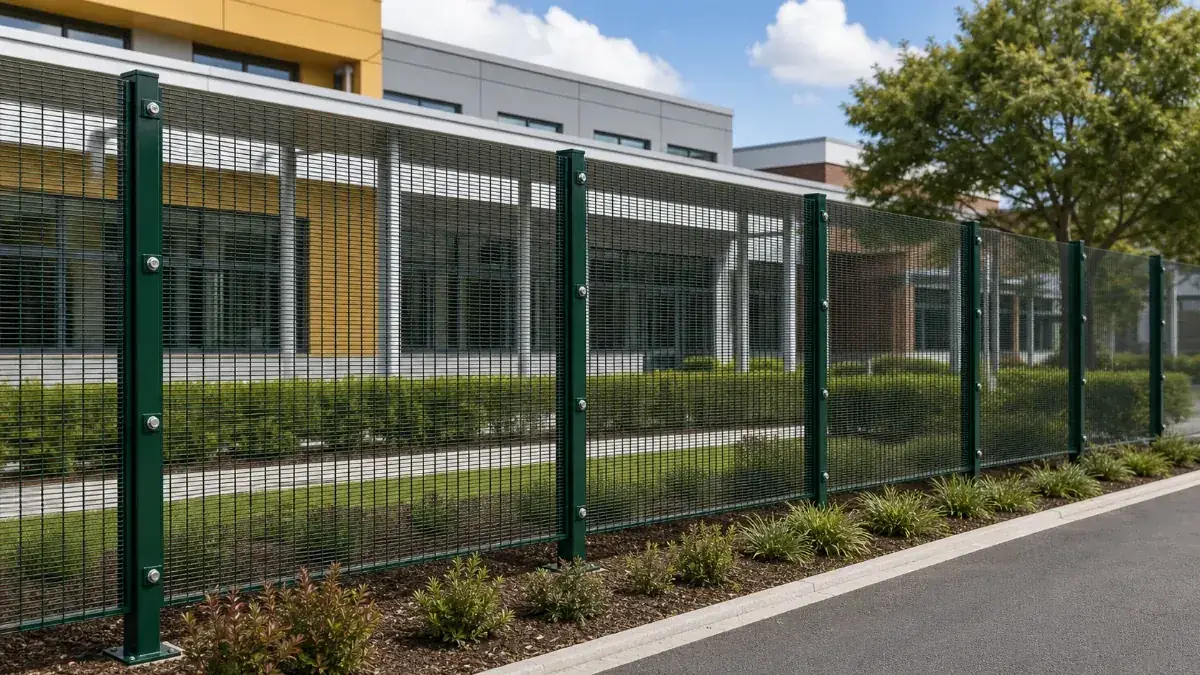

Transport and Public Facilities
We supply anti-vandal boundaries where surveillance visibility remains important.

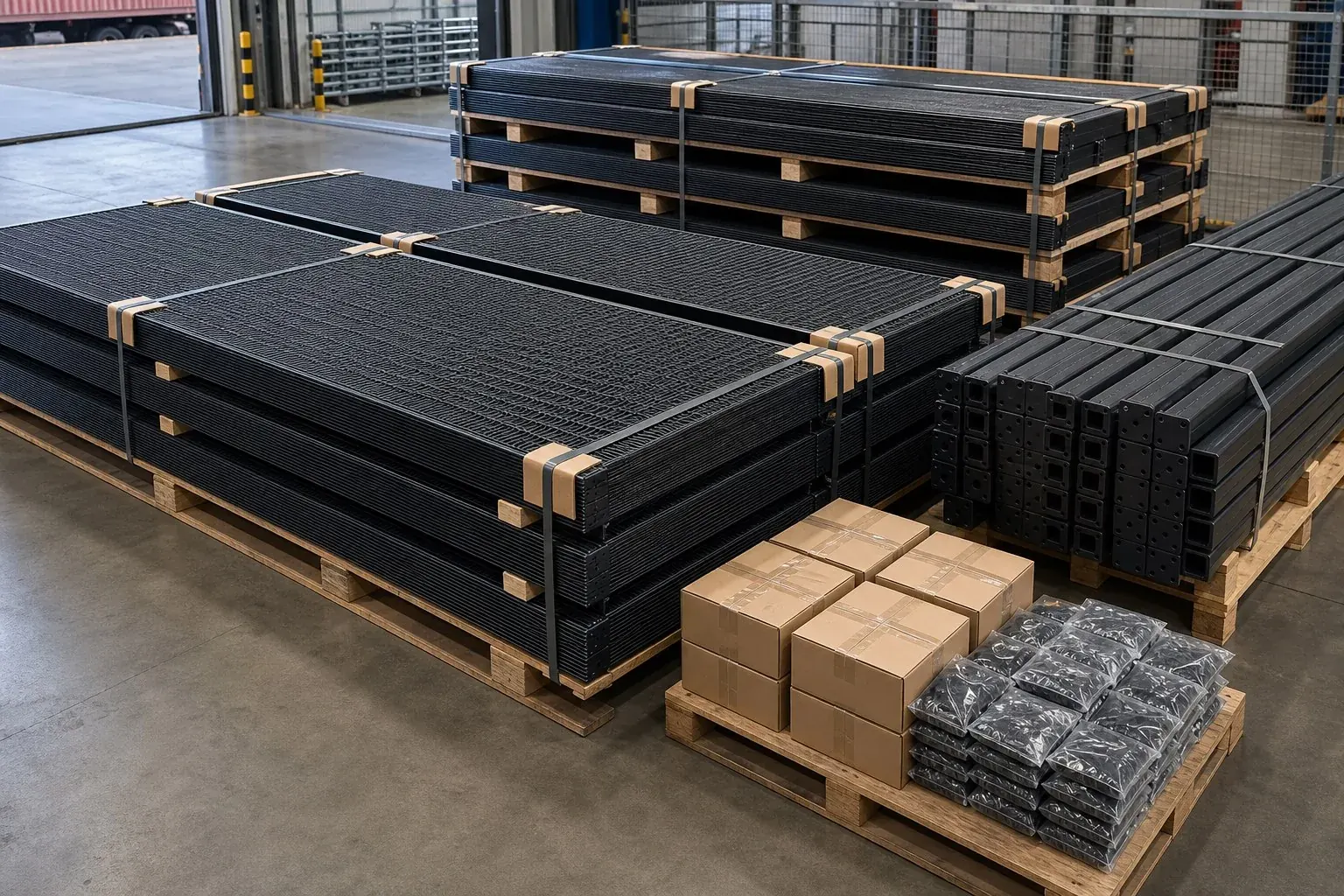

Packing and loading
Organized for Site Receipt, Not Just Container Space
We pack panels, posts and small parts separately and prepare a clear packing schedule to reduce missing hardware and make unloading and installation easier to manage.
01
Panel bundles — we protect contact points and strap each bundle for handling.
02
Posts and clamp bars — we group them by size or fence-line requirement.
03
Fixings and gate hardware — we box, label and count them separately.
04
Loading record — we provide finished-goods and container-loading photos when required.
Quote input
Destination port + required packing method
Get a useful first quote
What Determines a 358 Anti-Climb Fence Quote?
There is no single project price without a configuration. We can begin with partial information; send us a drawing, bill of quantities or reference photo to reduce clarification time.
01Fence height and panel width
Tell us if the perimeter requires stacked sections above standard panel height.
02Wire diameter and coating
Send us the project standard or expected environmental exposure.
03Total length and layout
Show us straight runs, corners, slopes and changes in direction where known.
04Gate quantity and openings
Tell us the pedestrian, single-leaf and double-leaf access requirements.
05Security topping
Confirm the straight, cranked, barbed-wire or razor-wire support requirements with us.
06Destination port
We use it to prepare packing and loading assumptions for your quotation.
Before requesting a quote
358 Anti-Climb Fence Questions
We answer the details buyers most often discuss with us during project screening.
Why is the product called 358 mesh?+
We use the name “358” for the traditional imperial specification: a 3 inch by 0.5 inch mesh opening with commonly used 8 gauge wire. We manufacture the corresponding metric opening at approximately 76.2 × 12.7 mm.
Is a 358 fence the same as a temporary anti-climb fence panel?+
No. A 358 fence is normally designed as a permanent welded-mesh perimeter system with fixed posts, secure fixings and project foundations. Temporary fence systems use portable feet, couplers and bracing so the fence can be moved.
What is the best 358 anti-climb fence configuration for a tall perimeter?+
We can manufacture stacked systems, but we select the configuration around total height, post section, fixing rows, foundations and wind-load assumptions. We review the complete elevation with you before production.
What can be included in a 358 fence quotation?+
We can quote panels, line and corner posts, clamp bars, tamper-resistant bolts, approved security-topping supports, pedestrian gates and vehicle gates as one coordinated system.
Which coating is suitable for coastal or exposed sites?+
We commonly quote galvanizing plus powder coating for exposed sites, then confirm the final coating against your project standard, exposure category and required service condition.
What affects a 358 anti-climb fence price?+
We calculate the quote around panel height, wire diameter, post section, coating, gates, security topping, quantity, packing and destination. Send us your drawings or BOQ when available, and we will list any missing details as quotation assumptions.
What evidence should a buyer request before production or shipment?+
Agree the approved drawing, required dimension checks, coating route, product photos, packing schedule and loading records before order confirmation. If a certificate or test document is required, name the exact document and confirm that its scope covers the ordered product.
Request a quote
Request a 358 Anti-Climb Fence Quote
Send your drawing or BOQ, or share the fence height, total length, coating, gate requirements and destination. We will identify missing details and prepare a project-specific quotation.
- Email: ls20240227@gmail.com
- Number/WhatsApp: +86 15932731014
- Quote scope: panels, line/corner posts, secure fixings, approved topping supports and matching gates
